Maya Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x16
nut x16
x8
F
G
H
long
L + R
L + R
slide rail
screw x8
slide rail
x4
K
wedge
x4

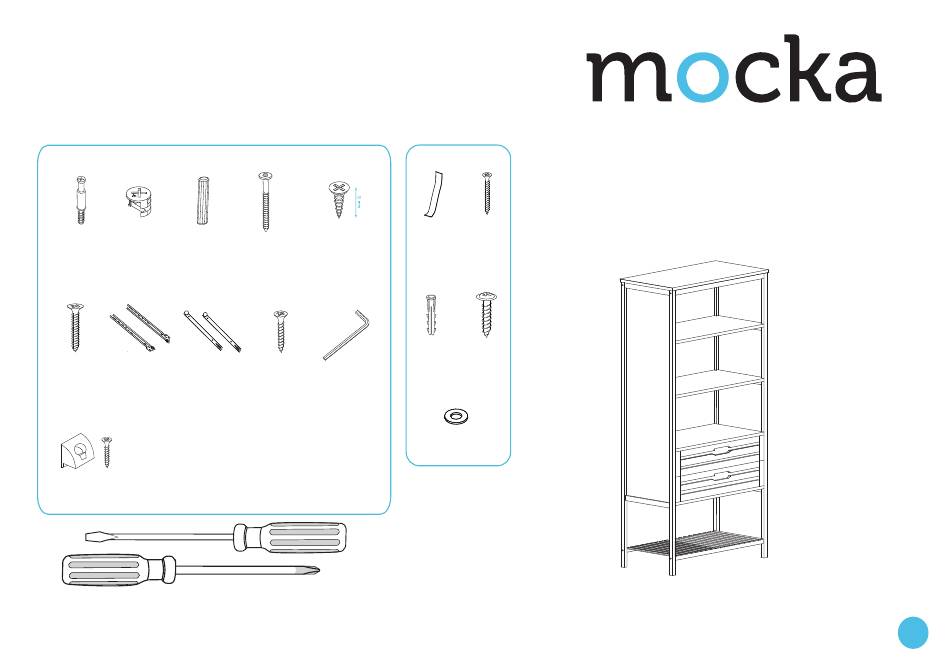

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we rec ommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
small
long screw
screw x16
x8
I
J
long
allen key
screw x6
x1
x4
WARNING:
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Maya Bookcase
Summary of Contents for Mocka Maya Bookcase
- Page 1 Maya Bookcase Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Maya Bookcase Assembly Instructions Insert 8 x bolt (A) into panels [3] and [4]. Attach 2 x L slide rails (G) to Insert 2x dowel (C) into panels [4] and [5]. Attach panels [5] and panel [3] and secure with 4 x small screw (E). Attach 2 x R slide rails secure with 2x locking nuts (B).
- Page 3 Maya Bookcase Assembly Instructions Insert 2x dowel (C) into panels [4] and [6]. Attach panels [6] and Slot back panel [7] into grooves on the back of the unit. Ensure the secure with 2x locking nuts (B). Tighten with a screwdriver.
- Page 4 Maya Bookcase Assembly Instructions Insert 4x dowel (C) into panels [5] and [6]. Attach panels [3], [5] and [6] Slot back panel [8] into grooves on the back of the unit. Ensure the and secure with 4x locking nuts (B). Tighten with a screwdriver.
- Page 5 Maya Bookcase Assembly Instructions Attach 1x panel [10] and 1x panel [11] to panel [1], screw with To assemble the tower attached the shelf slats to support 6x long screws [1] and tighten with a screwdriver. legs using 4x screw [D] in each end as shown.
- Page 6 Maya Bookcase Assembly Instructions Drawers (x2) Attach panels [13], [14] and [15] together with 4x medium screw [F], Insert 4x long screw [D] to panel [1], insert 2x removeable slide panel [12] between the grooves on panels [13] and [15] to form shelf [9] into cabinet.
- Page 7 Maya Bookcase Assembly Instructions Drawers (x2) Drawers (x2) Insert 4x bolts [A] into the back of panel [16]. Attach panel [16] to panel [13] Attach 2x slide rails [H] to panels [13] and [15]. Screw with 4x small screw and [15] with 4x locking nut [B]. Tighten with a screwdriver.
- Page 8 Maya Bookcase Assembly Instructions Screw with 4x wedge [K]. Tighten with a screwdriver. Insert each drawer into the unit as shown, ensuring they slide smoothly and easily along the rails. Once assembled, lift furniture into place, do not drag mocka.co.nz | mocka.com.au...
- Page 9 Maya Bookcase Assembly Instructions Strap Washer wall anchor wall screw Use a drill to a create a small hole lining up with the top of the safty Fasten to wallusing 1x wall plug (X), 1x washer (Z) and 1x long screw (Y).
