Marlow Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
dowel
bolt
locking
x20
x14
nut x14
I
J
K
long
nut
r/washer
screw x4
x4
screw x1
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
D
E
F
small
screw
L + R slide
screw x30
x4
rail x6
L
M
N
washer
wall
safety
x1
plug x1
strap x1

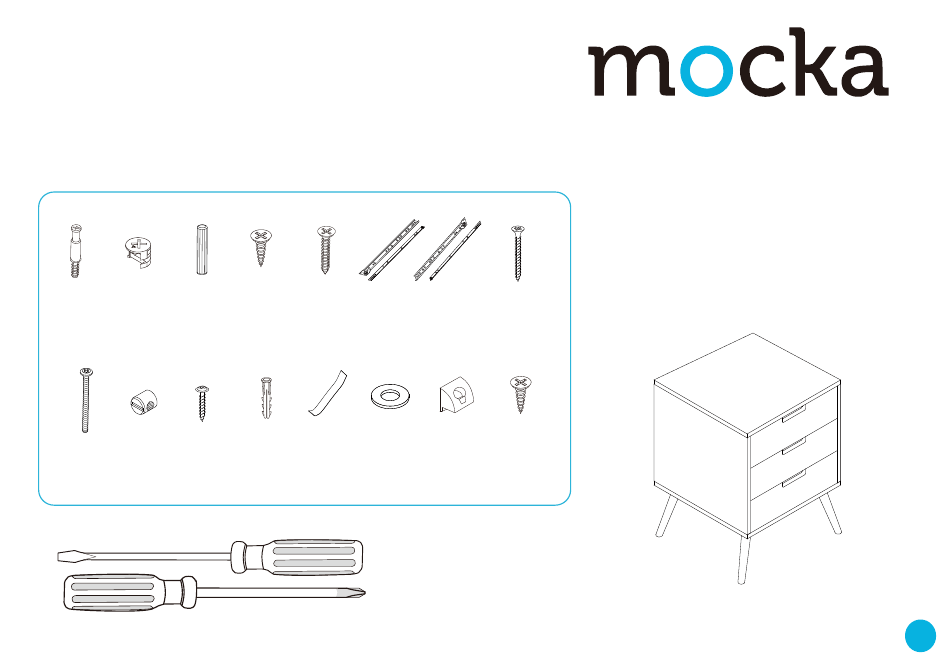

Hardware Supplied
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
G
H
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent your
product tipping. The fixing device provided should fit most wall
types, but please note that different wall materials may require
large
different fixing devices from those supplied.
screw x17
O
P
wedge
small
screw x4
x4
Any furniture that is not anchored to a wall has the
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Marlow Bedside Table
Summary of Contents for Mocka Marlow Bedside Table
- Page 1 Marlow Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Marlow Bedside Table Assembly Instructions Attach 3x slide rails (F) to panel [4] and secure with 9x small screws Attach panels [6] to panel [3] and [4] with 4x bolts (A), 4x dowels (C) and (D). Attach 3x slide rails (G) to panel [3] and secure with 9x small secure with 4x locking nuts (B).
- Page 3 Marlow Bedside Table Assembly Instructions Attach panel [1] to the rest of the unit with 4x bolts (A) and secure with Slide panel [5] down along the grooves of the side panels. Attach panel 4x locking nuts (B). Tighten with a screwdriver.
- Page 4 Marlow Bedside Table Assembly Instructions Attach the leg panels [12] and [13] together with 4x long screws (I) and Attach the leg panels to the underside of the unit [2] with 4x screws (E). 4x nuts (J). Tighten with a screwdriver.
- Page 5 Marlow Bedside Table Assembly Instructions Drawers x3 Drawers x3 Insert 2x bolts (A) into panel [7] and [14].Tighten with a screwdriver. Insert 4x dowels (C) into panel [7] and [14]. Attach panel [8] and [10] to front panel [7] and [14] using 2x locking nuts (B).Tighten with a screwdriver.
- Page 6 Marlow Bedside Table Assembly Instructions Drawers x3 Drawers x3 Slide panel [9] along the grooves between the side panels [8] Attach panels [8], [10] and [11] as shown using 4x screws (H). and [10] to form the base of the drawer.
- Page 7 Marlow Bedside Table Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers x3 Attach slide rail (G) and slide rail (F) to the underside of the side panels Insert the three completed drawers, ensuring they slide easily along the as shown. Secure with 4x screws (D) and tighten with a screwdriver.
- Page 8 Marlow Bedside Table Assembly Instructions Wall Strap Attach 4x wedges (O) to the corners of the back panel [5] as shown, Once assembled lift furniture into place, do not drag. Secure the bottom and secure with 4x small screws (P). Tighten with a screwdriver.
