Marlow Console Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
long screw
x16
x8
G
H
L + R slide
rail x1
N
M
screw
wedge
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
E
bolt
locking nut
small screw
x8
x8
x10
I
J
K
bolt
washer
Allen key
x1
x8
x8
O
P
felt pad
washer
x4
x8

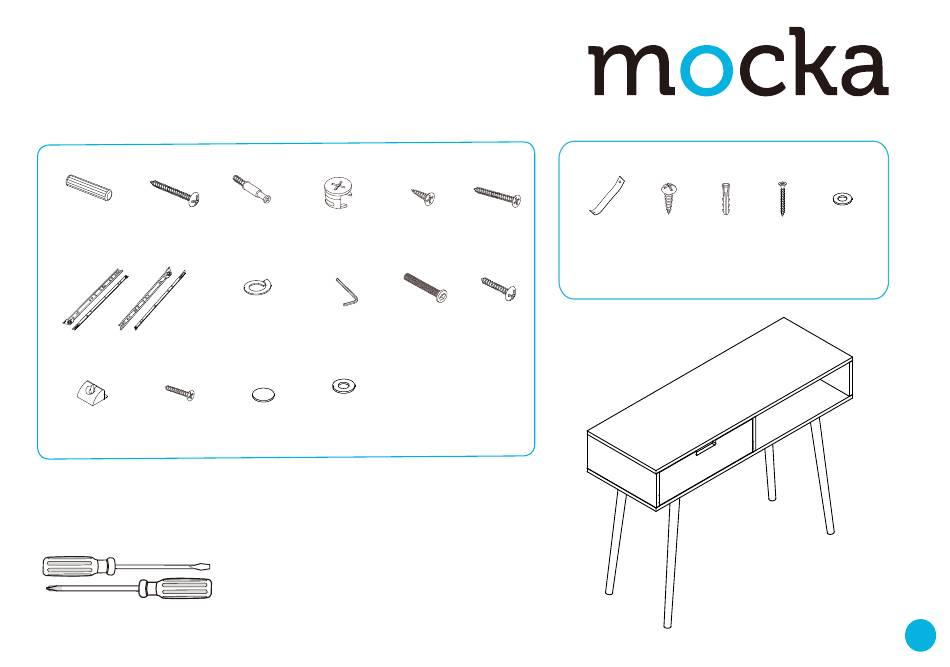

Hardware Supplied
Phillips & Flathead screwdrivers .
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
V
screw
safety
screw
x10
x1
strap x1
L
screw
x16
W
X
Y
Z
wall
wall
washer
anchor
screw
x2
x1
x1
Wall Strap
1
Advertisement
Related Manuals for Mocka Marlow Console Table
Summary of Contents for Mocka Marlow Console Table
- Page 1 Phillips & Flathead screwdrivers . For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
-
Page 2: Panel Layout
Marlow Console Table Assembly Instructions Panel Layout Insert 6x bolts (C) into panel [1].Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558... - Page 3 Insert 6x dowels (A) into panel [1]. Attach panels [3] , [4] and panel [5] to Attach 1xCR runner tracks (H) to panel [4] using 3x small screws (E). panel [1] using 6x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Attach panel [2] to panel [3] , [4] and [5] using 6x dowels (A) and secure form the back of the unit as shown. with 6x screw (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Attach panels [15] to panels [7] and [8] with 16x screws (L). Attach panels [7] and [8] to panel [2] with 8x long screws (B). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Insert 2x bolts (C) into panel [9]. Tighten with a screwdriver. washers (P) and tighten with the Allen Key (J). Apply 4x felt pads (O) to panels [14] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Attach panel [10] and [11] to front panel [9] using 2x locking nuts (D) Slide panel [12] along the grooves between the side panels [10] and [11] and 4x dowels (A). Tighten with a screwdriver. to form the base of the drawer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 Attach slide rail (G) and slide rail (H) to the underside of the side panels [10] with a screwdriver. and [11] as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 9 4x screws (N). Tighten with a screwdriver. Attach 1x safety strap (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 10 (V). Fasten to wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
