Maya Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
dowel
locking
x26
x20
nut x26
H
I
nut
bolt
slide rail
x8
x2
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
D
E
screw
small
x10
screw x6
J
K
shelf
x2
plug x1

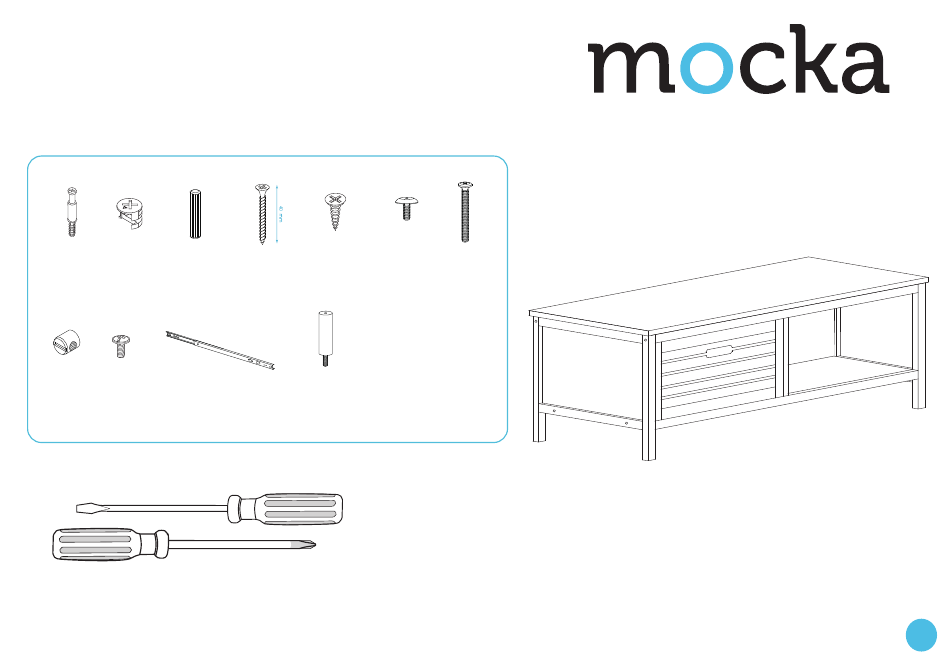

Hardware Supplied
F
G
long
long
screw x1
crew x8
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
