2 Installation and setup

2.1.3 Auto-Axcess E Ethernet cable connection

2.1.3 Auto-Axcess E Ethernet cable connection
Description
Auto-Axcess E welders use a single cable Ethernet/IP interface between the
Auto-Axcess E welder and the IRC5 controller. The Ethernet port A connector port
on the rear panel of the Auto-Axcess is connected using an industrial Ethernet
cable that connects directly, or via a switch, to the LAN2 port on the IRC5 controller.
Overview

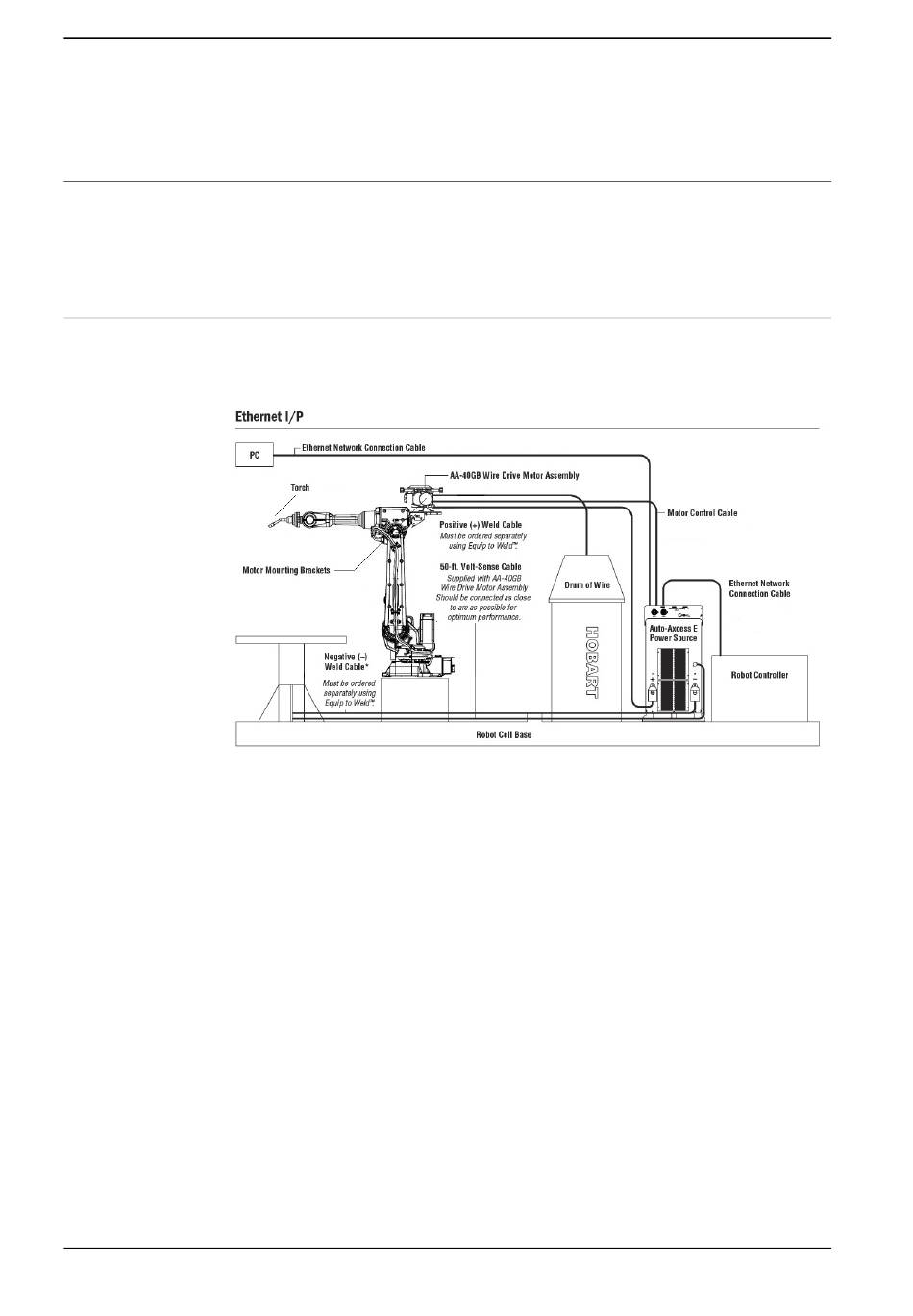

The following figures illustrate an overview of a typical Auto-Axcess E installation
with Auto-Axcess E connected to a robot with a PC or PC-HMI in the cell.
xx1500000812
Continues on next page
