3 Weld Editor Interface

3.6 Weld

3.6 Weld
Overview
Tap the Weld tab to view or modify the weld parameters.
The weld parameters can only be modified in manual or tune mode while the arc
is established.

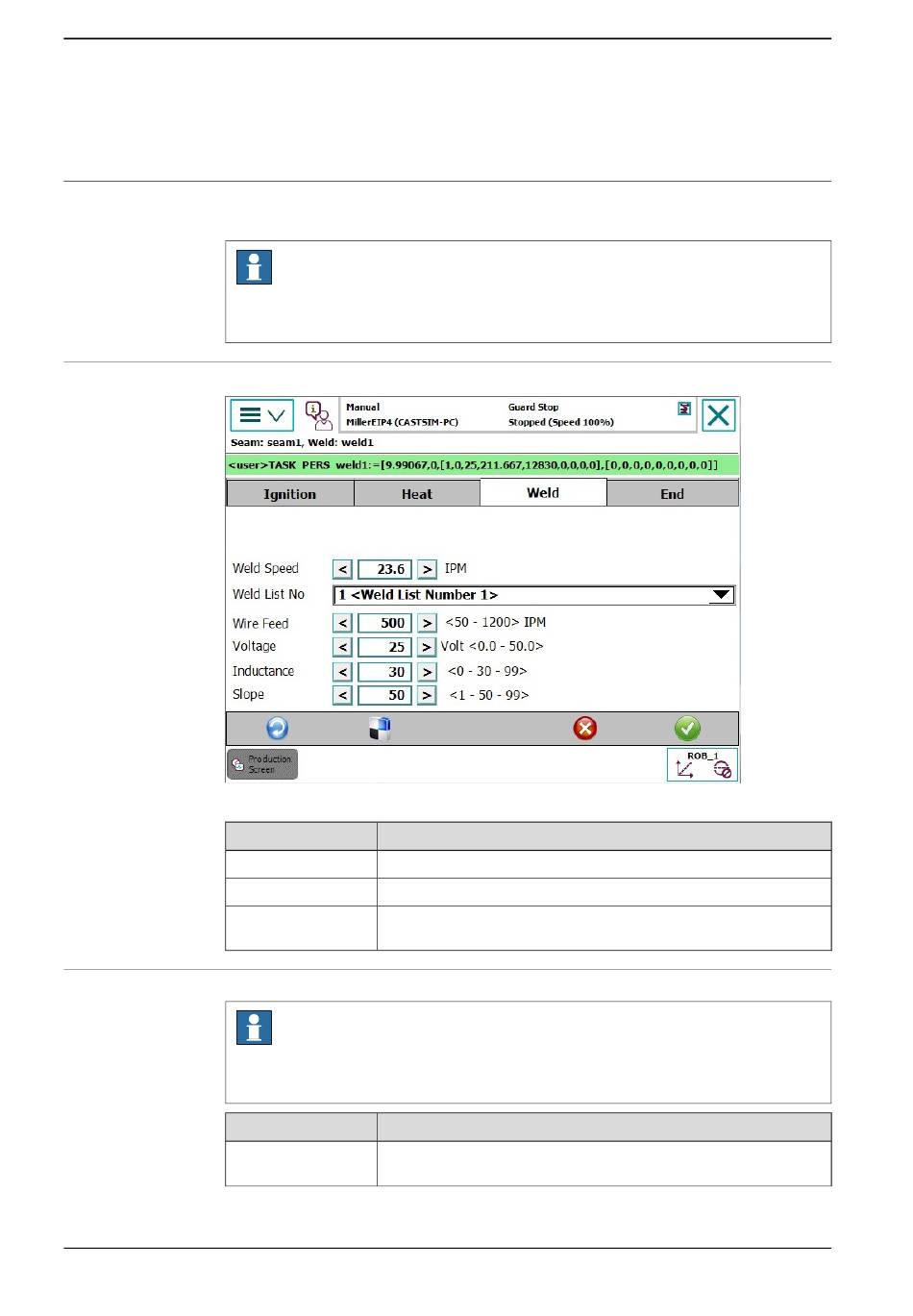

Interface
xx1500000853
Button
Refresh
Confirm
Cancel
Weld parameters
The parameters are defined dynamically, so not all parameters will be present
for every Weld List No.
Parameter
welddata
Continues on next page
44
Note
Description
The blue refresh button is used to return to the Weld Phase tab.
The green check button is used to confirm any changes made.
The red cancel button is used to cancel any changes made and re-
turn to the previous values.
Note
Description
The welddata parameters control the weld during the weld phase,
which is as long as the arc is established.
