3 Hardware Integration
The ATOMAS-DUO-HDMI platform has been designed to allow for flexible hardware integration to existing
or new product designs. The ATOMAS-DUO-HDMI Carrier Board proposes four (4) mounting holes for
securing to your enclosure. In addition, a slight clearance around the board's edge can also be used for
extrusion-type enclosures.
When integrating the ATOMAS-DUO-HDMI into a product design, position the module to allow for air
circulation around the board in order to maximize the chances of heat dissipation.
Warning:
Be careful not to damage the module when using mounting screws.
4 Temperature Considerations
The ATOMAS-DUO-HDMI platform has been designed with industrial temperature components (-40C to
+85C); however, reaching your temperature requirements may require that you add heatsinks to certain
board-level components which generate substantial heat.

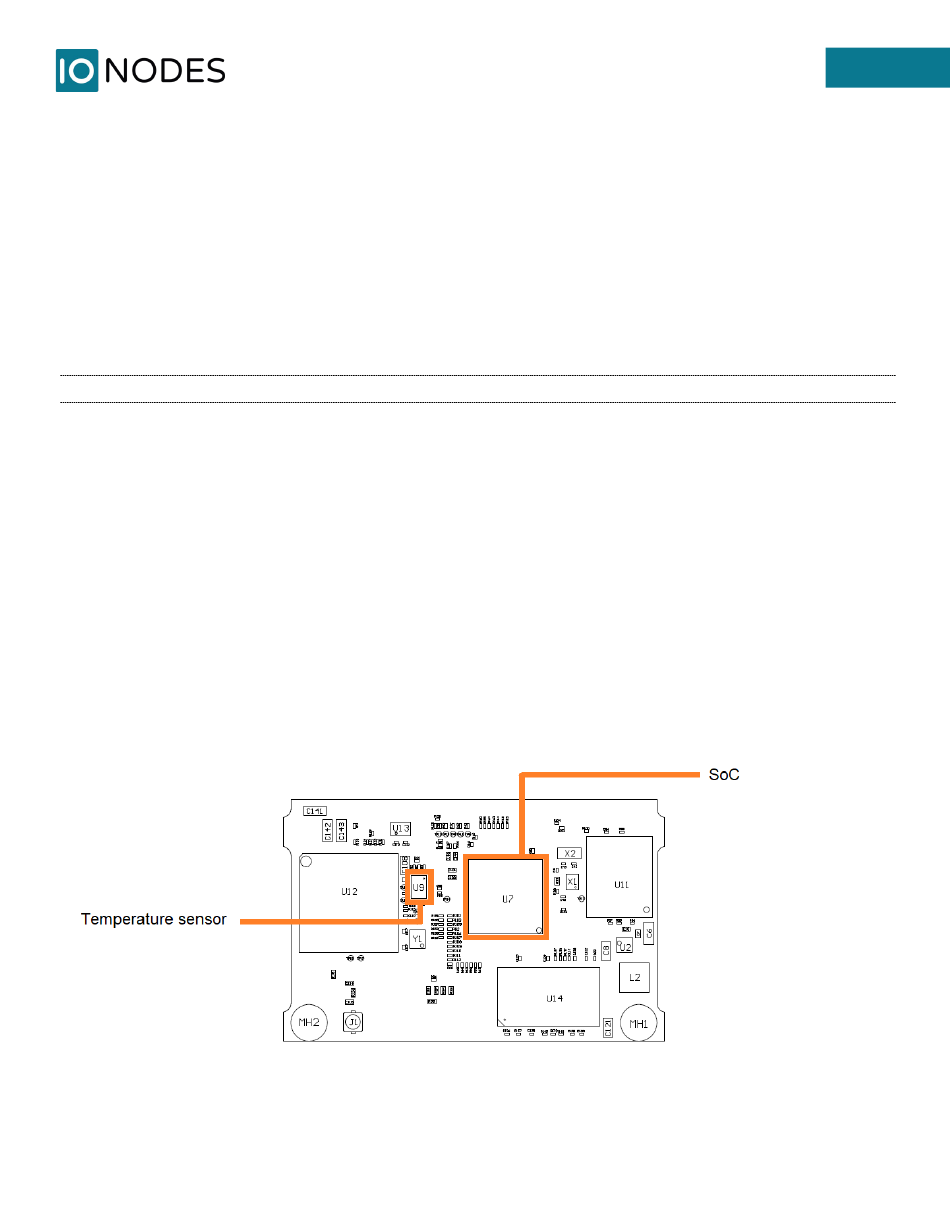

The SoC and the temperature sensor are both placed on the SOM Processing Board. Their exact location
is depicted in the image below:
