7.2 Connector Part Numbers
•
J2 – BT.656 video output (towards ATOMAS-DUO-HDMI Carrier Board) / KEL USL00-30L
J3, J4, J5, J6 – CVBS video input / Amphenol RF 034-1018
•
Note:
The J2 connector on the ATOMAS-QUADSD-D656 is designed to mate with connector J7 of the
ATOMAS-DUO-HDMI Carrier Board module. Pinout is inverted to keep the harness cable
straight.

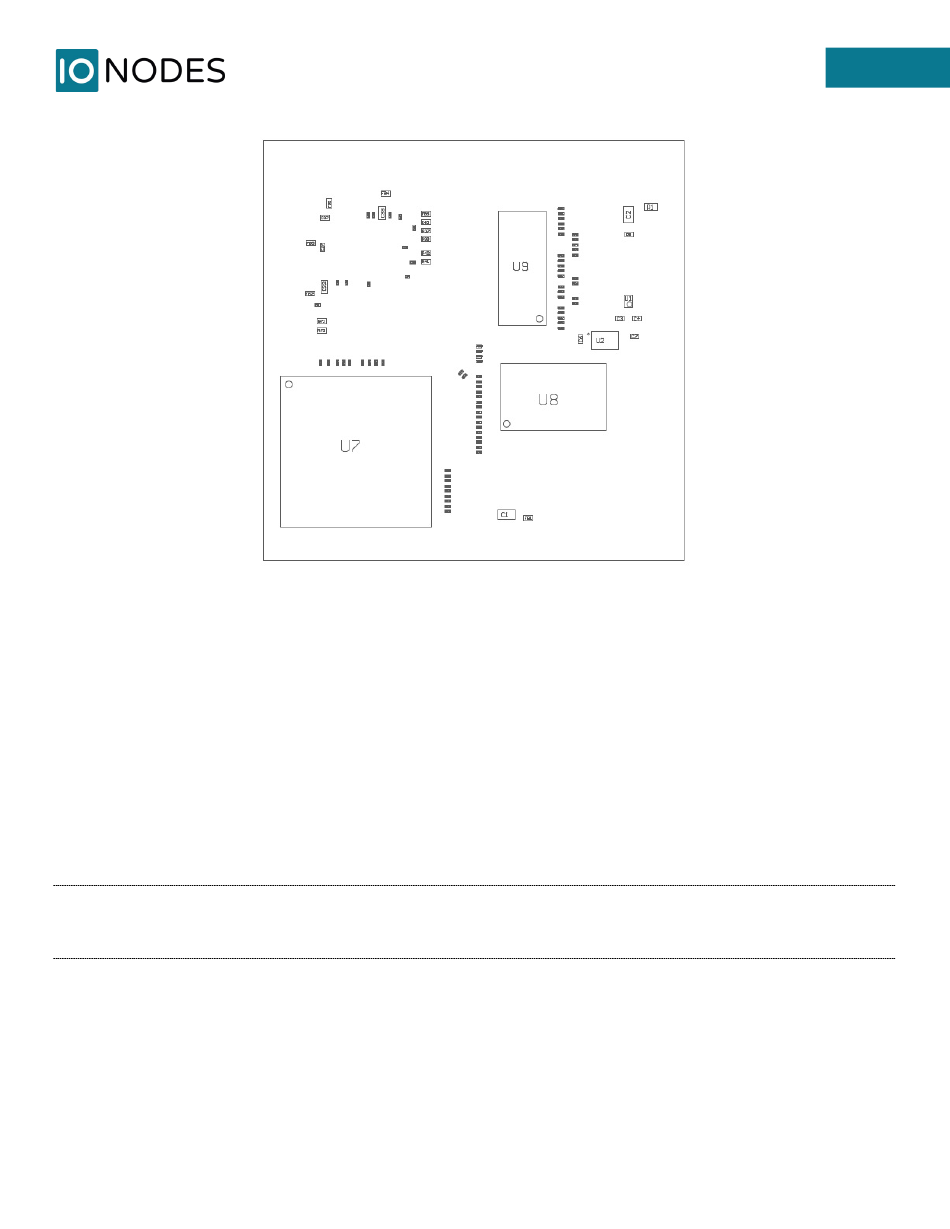

Figure 6 - ATOMAS-QUADSD-D656 Bottom Side
support@ionodes.com | www.ionodes.com
19
