7 ATOMAS-QUADSD-D656
The ATOMAS-QUADSD-D656 module is a video interface add-on module, designed for use with the
ATOMAS-DUO-HDMI encoder platform. This optional module converts 4x Analog Composite (CVBS) input
video signals into a multiplexed BT.656 video signal that is fed to the second digital input of the ATOMAS-
DUO-HDMI Carrier Board.
7.1 Board layout

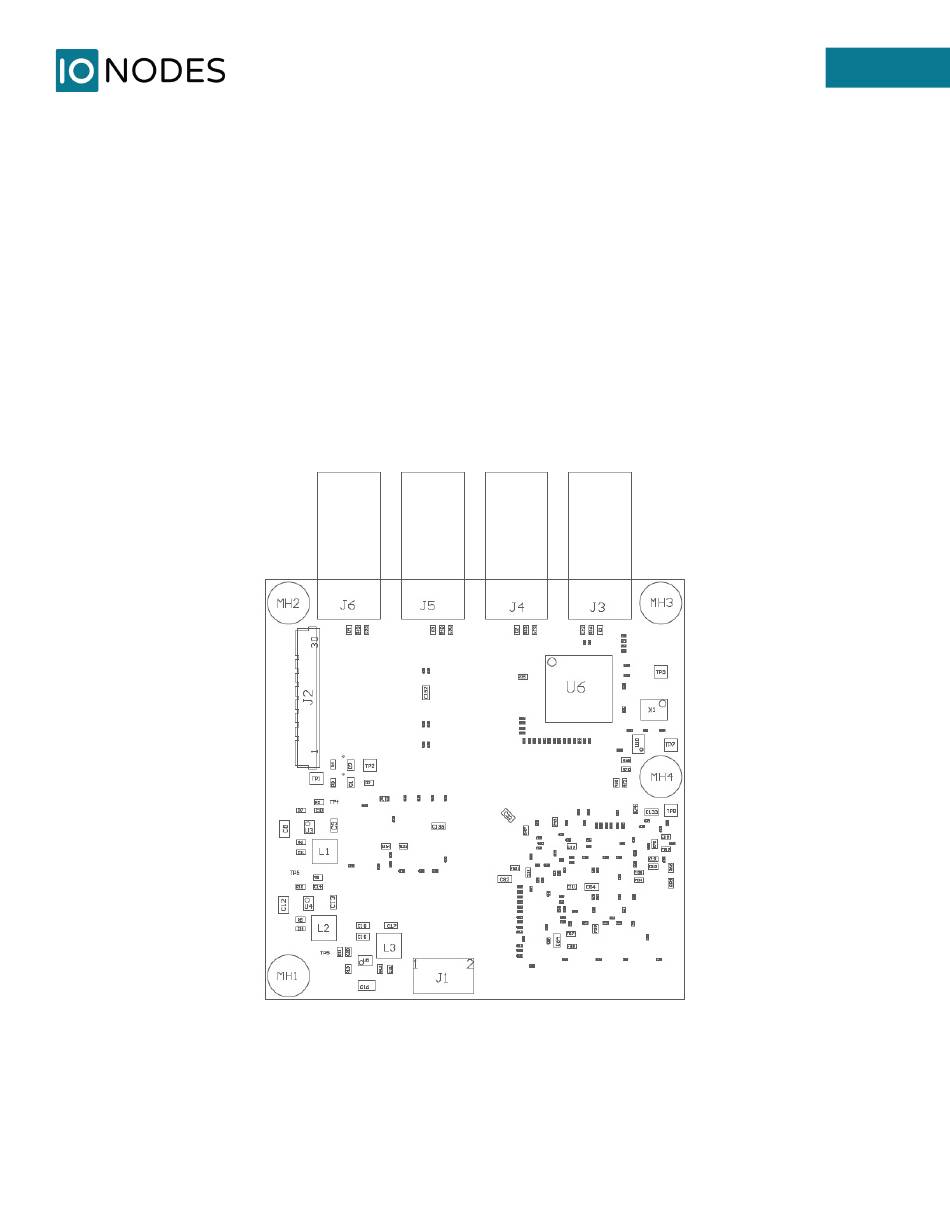

Figure 5 - ATOMAS-QUADSD-D656 Top Side
