Chore-Time Turbo-Cool Installation & Operator's Instruction Manual page 8

Turbo-Cool 6" Recirculating Evaporative Cooling System Manual
Sump End
Item Description
1 Curtain
2 10" (250 mm) Minimum Clearance
3 15" (38 cm) Minimum Clearance
4 30" - 36" (76 - 91 cm) Walkway
5 6" (15 cm) Minimum Clearance
6 2" x 6" (50 x 152 mm) Top Stringer
7 Studs
8 Pad Height less 1-1/2" (38 mm)
9 End Framing
8

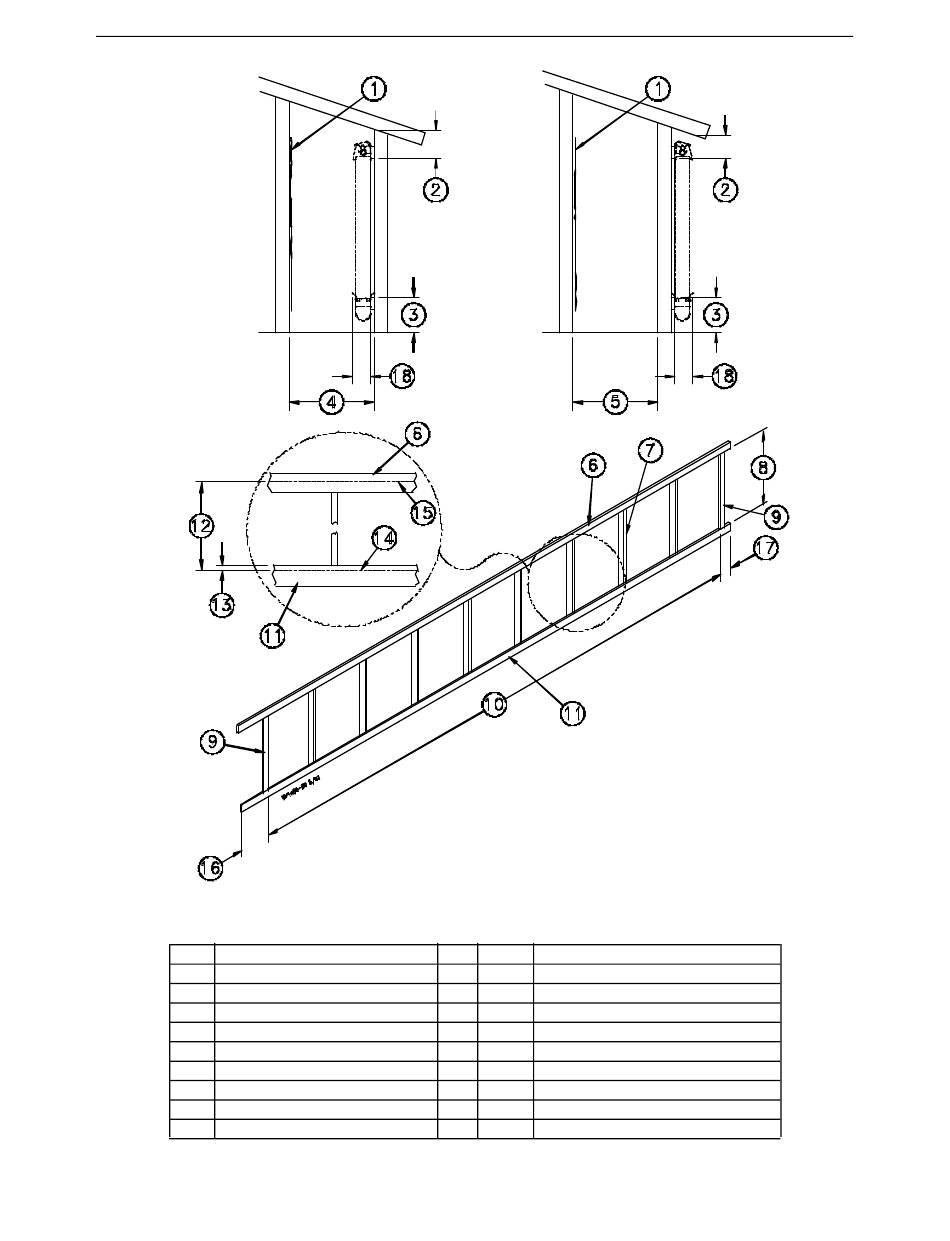

Figure 2. Framing Overview Diagram
Item
10
11
12
13
14
15
16
17
18
Inlet End
Description
Width of Pad Bank
2" x 6" (50 x 152 mm) Bottom Stringer
Pad Height plus 2-3/4" (7 cm)
1-1/4" (3.2 cm)
Bottom Stringer Chalk Line
Top Stringer Chalk Line
24" (61 cm) for Sump Assembly
9" (23 cm) for Inlet Assembly
7-1/2" (19.1 cm)
