End Panel Installation

The End Panels should be installed flush with the inside of the opening (at both
ends).
1. Locate the top mounting hole (in the flange of the Upper End Panels) on the
chalk line. This will properly align the hole for the Distribution Pipe with the
Pipe Hangers. See Figure 8. Secure the Upper End Panels to the top stringer
using the 10-16x1-1/2" Screws, as shown in Figure 8.
2. The Lower End Panels should overlap on the outside of the Upper End Panels
to provide proper watershed.
3. Align mounting holes in the upper and lower end panels and secure the end
panels to the frame using the 10-16x1-1/2" Screws.
Turbo-Cool 6" Recirculating Evaporative Cooling System Manual

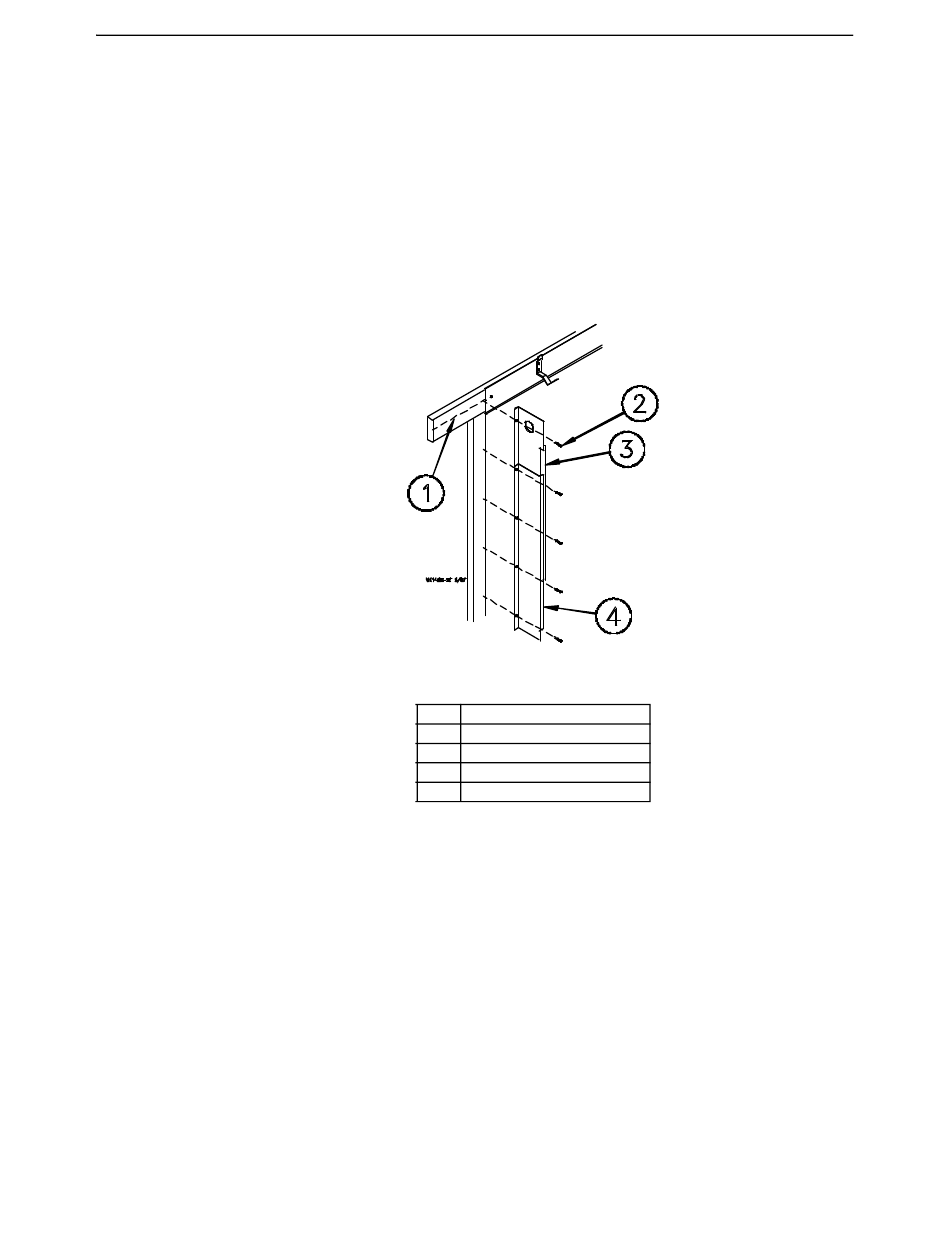

Figure 8. End Panel Installation
Item Description
1 Chalk Line on top stringer
2 10-16 x 1-1/2" S.S. Screw
3 Upper End Panel
4 Lower End Panel
