Chore-Time Turbo-Cool Installation & Operator's Instruction Manual page 19

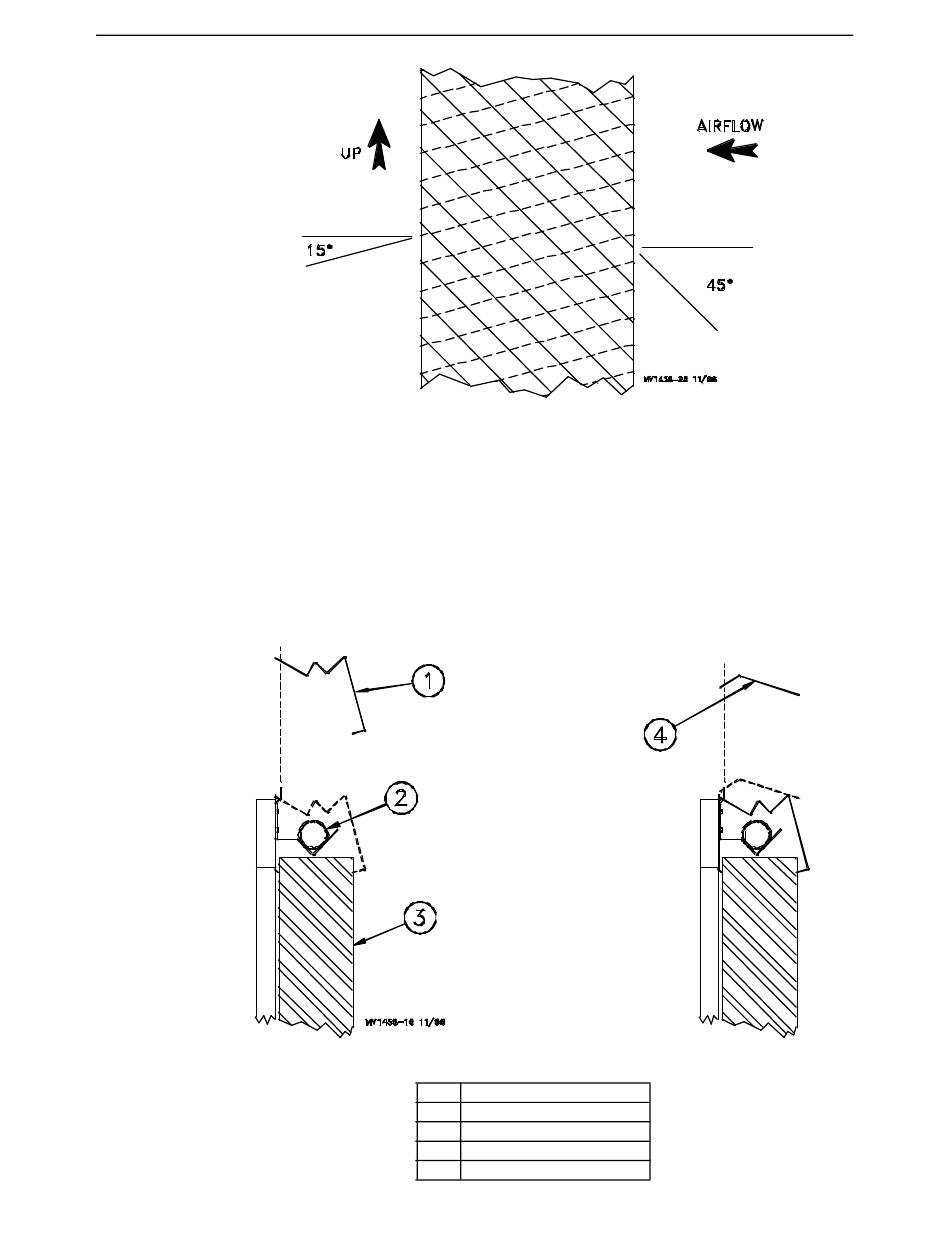

Figure 14. Pad Orientation (cut-away view of side of Pad)
2. Set the Covers on the Pipe Hangers, as shown in Figure 15, Step 1.
3. Slide the Cover Locks onto the Pipe Hangers, as shown in Figure 15, Step 2.
4. Repeat steps 1-3 until all the Evaporative Cooling Pads are installed. The
Covers should butt end to end.
5. The Evaporative Cooling Pads may be trimmed as required using a handsaw,
to fit inside the End Panels.
Step 1
Figure 15. Cover and Cover Lock Installation
Turbo-Cool 6" Recirculating Evaporative Cooling System Manual
Item Description
1 Cover
2 Distribution Pipe
3 Evaporative Cooling Pad
4 Cover Lock
Step 2
