Attaching The Backplate - EK-Quantum Vector FE RTX 3070 User Manual

Thermal Pad G 1.0 mm
Thermal Pad G 1.5 mm
M2.5x7 AX1 Screw
STEP 3

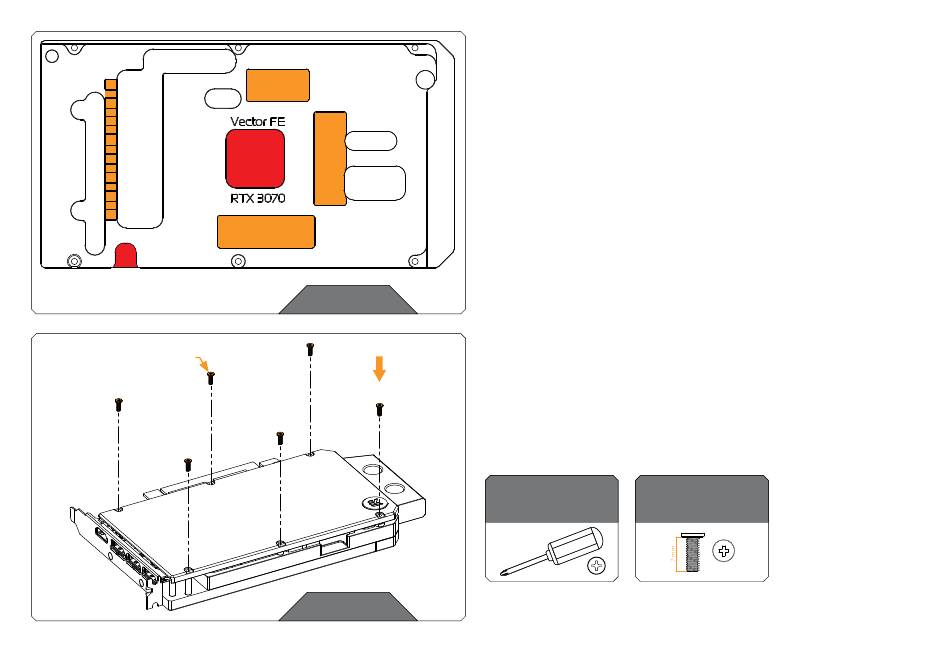

Once cut to size thermal pads should be applied to the backplate as
shown in the image.
STEP 3
STEP 4

ATTACHING THE BACKPLATE

Place the backplate on to the PCB aligning all of the holes.
Position an M2.5X7 AX1 screw in each of six (6) mounting holed
marked below and then tighten them evenly using a Phillips head
screwdriver. Do not use excessive force!
For this Step, you will need:
STEP 4
- 7 -
Phillips Head M2.5 x 7 AX1
Screwdriver 6 pcs
