INSTALLING THE BACKPLATE

Thermal PAD G 1.0 mm (120 x 24 mm)
120 mm
Thermal PAD G 1.5 mm (120 x 24 mm)
120 mm
STEP 1

PREPARING YOUR GRAPHIC CARD

First complete the installation of your EK-Quantum Vector FE RTX
3070 water block according to its installation manual.

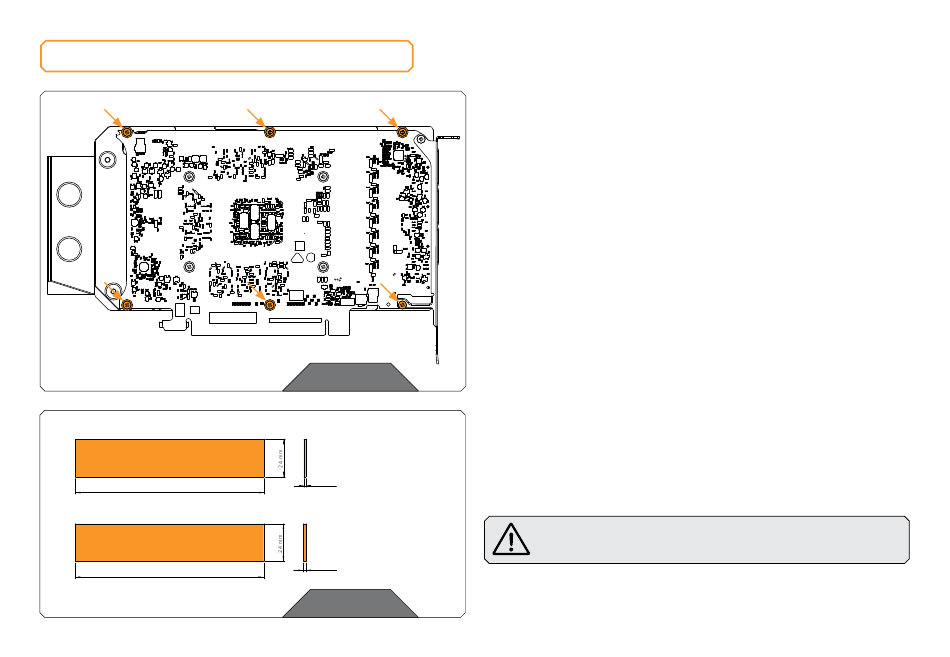

If water block is already installed, remove the six (6) AX1 screws and
their PVC washers(marked on the picture).
STEP 1
STEP 2

CUTTING AND PLACING THERMAL PADS

Your backplate is supplied with thermal pads that needs to be cut
into smaller pieces in order to cover all VRM components. EK made
sure to provide customers with more than adequate quantity of
1 mm
thermal pads to complete this step.
1.5 mm
Replacement thermal pads:
1x Thermal PAD G 1,0 mm - (120 x 24 mm) – EAN: 33830046996770
STEP 2
2x Thermal PAD G 1,5 mm - (120 x 24 mm) – EAN: 3830046996787
- 6 -
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH
SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION
