User's manual
CD3000S
3PH from 15A to 90A
5
Installation
Before to install, make sure that the Thyristor unit have not
damages.
≥5 cm
AIR
If the product has a fault, please contact the dealer from which
you purchased the product. Verify that the product is the same
thing as ordered.
≥2 cm

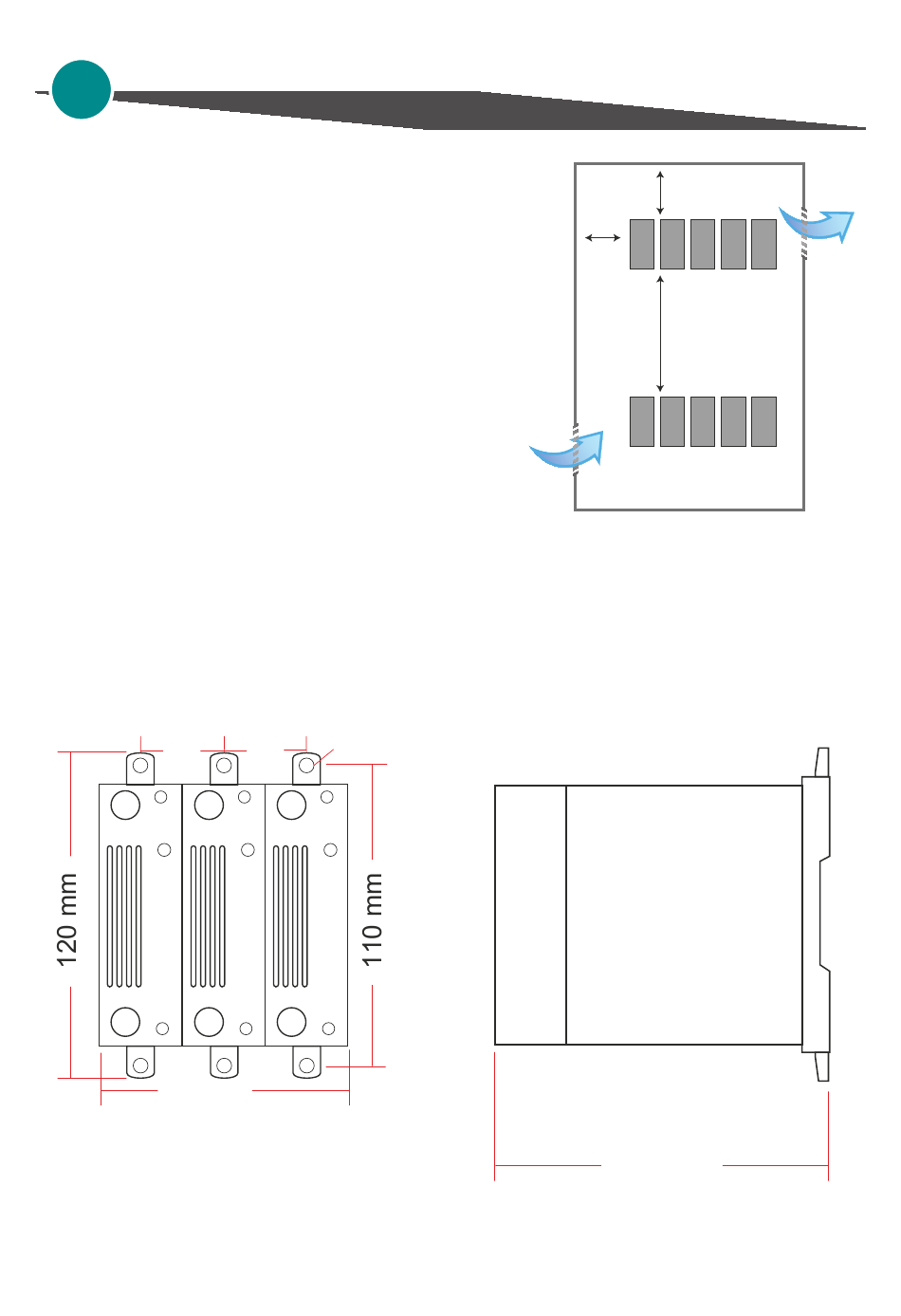

The Thyristor unit must be always mounted in vertical position
to improve air cooling on heat-sink.
≥15 cm
Maintain the minimum distances in vertical and in horizontal as
represented.
When more unit has mounted inside the cabinet maintain the air
circulation like represented in figure.
Sometimes is necessary installing a fan to have better air
circulation.
AIR
5.1 Dimensions and fixing holes
Size: S2
Ø 4,5 mm
30
30
92 mm
120 mm
15
