Rubber housing
Up/Down/Left
/Right
Navigation
On/Off:
hold down
for a few seconds
More information:
on some screens more
TPMS information can be
viewed
USB cable
connector

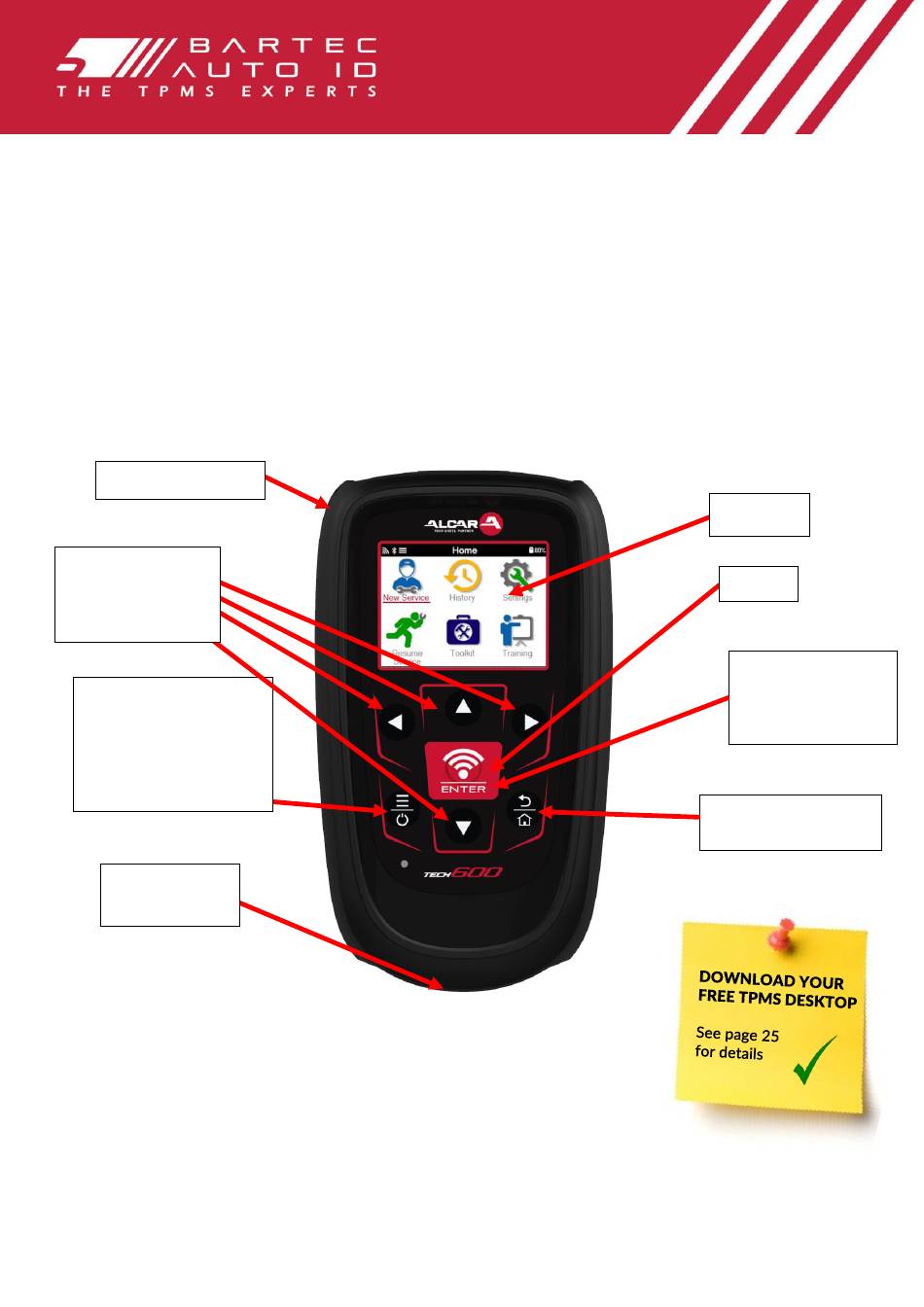

Bartec Auto ID Ltd.
ALCAR TECH600
Tyre Pressure Monitoring System Tool
User Guide
Mini-USB
Display
Enter
Test:
commence a TPM
test, only works on
Vehicle Audit Screen
Home/Back/Esc:
returns to Home menu
2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bartec ALCAR TECH600
Summary of Contents for Bartec ALCAR TECH600
- Page 1 TPM On/Off: hold down test, only works on for a few seconds Vehicle Audit Screen More information: on some screens more TPMS information can be viewed Home/Back/Esc: returns to Home menu USB cable connector Mini-USB Bartec Auto ID Ltd. 2020...
-
Page 2: Oreword
Also used to communicate with some vehicles OBD2 ports. Hereby, Bartec declares that the product referenced above is in compliance with the essential requirements of European Union Radio Equipment Directive (RED) 2014/53/EU, on the approximation of the laws of the member states relating to European Union Radio Equipment Directive (RED) 2014/53/EU. -
Page 3: Table Of Contents
TECH600 User Guide 2020 ONTENTS ......................2 OREWORD ....................3 ONTENTS .................... 4 MPORTANT OTICES ................... 5 AFETY RECAUTIONS ................... 7 EFORE ETTING TARTED ....................7 OMPONENTS ....................... 8 EGISTRATION ....................11 HARGING ON/OFF S ................11 OWER EQUENCE ...................... 12 TPMS I ................ -
Page 4: Important Notices
The right is reserved to make changes at any time without obligation to notify any person or organization of such revisions or changes. Further, Bartec shall not be liable for errors contained with the furnishing, performance or use of this material. -
Page 5: Safety Precautions
TECH600 User Guide 2020 AFETY RECAUTIONS Read carefully the installation, operating and maintenance instructions in the Operator’s manual. Do not allow unqualified persons to use this equipment. This will prevent injury to persons and damage to the equipment. The work place must be dry, sufficiently lit and well ventilated. Do not forget that breathing carbon monoxide (odourless) can be very dangerous and even fatal. - Page 6 Bartec provides training for clients desirous of acquiring the knowledge required for the correct use of its products. Only personnel authorized by Bartec are permitted to make any repairs that may be necessary. This tool is guaranteed against any manufacturing fault for 12 months as of date of invoice (parts and labour) only if product has been correctly used.
-
Page 7: Before Getting Started
The use of un-approved power supplies may damage it and will void the tool warranty. 2. Registration The Bartec TECH600 can be registered through the TPMS Desktop software, found at www.tpmsdesktop.eu. This allows the user to update the tool to the latest software through the method they prefer. -
Page 8: Registration
PC. To register a tool, navigate to the Bartec TPMS Desktop at Download the TPMS Desktop software, and then install it using ‘setup.exe’. When the TPMS Desktop has been load for the first time, the user will be presented with the following:... - Page 9 Select ‘Register’ to create a new account. The following screen will be displayed: It is important to fill in all fields completely and accurately. This information will help Bartec remain in contact regarding updates and other important TPMS information. Choose a username (without a space) and password.
- Page 10 TECH600 User Guide 2020 After Login, the main screen of the TPMS Deskop is displayed Connect the TECH600 to the computer. The TPMS Desktop will automatically register the “tool successfully registered”. The TPMS Desktop will tool, and will display the message: then check for any updates that can be applied to the tool.
-
Page 11: Harging Ool
TECH600 User Guide 2020 HARGING The TECH600 is shipped with a charged battery. It is recommended that the tool is charged 2+ hours before first use. For optimum performance, always keep it sufficiently charged. The TECH600 will notify the user when the battery has low power, and the battery icon will change colour from white to red. -
Page 12: Home Menu
TECH600 User Guide 2020 Used to check sensors, relearn sensors to the vehicle, New Service perform OBD diagnostic, program sensors, and receive TPMS information Resume Service Used to resume your last job History Used to call up all stored works. User is able to search by registration or model, and can also use this history function to upload and clear Service Data. -
Page 13: Ore Tpms Information
TECH600 User Guide 2020 TPMS I NFORMATION If you see this icon on the screen press for more TPMS information or TPMS options. ELECT EHICLE When starting a New Service, the user will be prompted to select the vehicle that requires TPMS maintenance. -
Page 14: New Service
TECH600 User Guide 2020 ERVICE Check Sensors This uses a quick and easy to follow process which allows the user to read sensors, process the data, read battery status & IDs. Relearn All relearn procedures are available OBD Diagnostics Used to diagnose vehicle problems, receive sensor IDs and reads the vehicle VIN Create Copy/clone ID (single) -
Page 15: 1/6 Check Sensors
TECH600 User Guide 2020 1/6 C HECK ENSORS Use this function to test the fitted sensors before continuing with further steps. To check the status of the TPMS sensors on the vehicle, select Check Sensors from the Service Screen. A screen similar following should be displayed:... - Page 16 TECH600 User Guide 2020 OSSIBLE EADING CENARIOS Note that if a faulty Sensor has been replaced, some method of relearn procedure will need to be followed, as explained later in this manual. Successful Sensor Read Sensor was successfully activated and decoded.
-
Page 17: 2/6 Programmable Sensor
TECH600 User Guide 2020 2/6 P ROGRAMMABLE ENSOR The “Program Sensors” on the service menu enables the function of programming aftermarket replacement sensors like the HUF IntelliSens, Alcar Sensors or the Schrader EZ-sensor. Even when they are already mounted in a wheel or programmed to another vehicle. The user can choose from a selection of sensors which match the preselected MMY. -
Page 18: 3/6 Relearn
TECH600 User Guide 2020 Recommended sensor position for programming: 3/6 R ELEARN To find out which relearn type is available for a vehicle, just turn on the tool and select Relearn. Or refer to the current coverage list at www.bartecautoid.com >... - Page 19 TECH600 User Guide 2020 Selected tyre. Processing order: Left Front, Right Front, Right Rear, Left Rear As well as the pressure and temperature, we also display the “mode” of the sensor. In some cases the mode cannot be changed and isn’t important, but in some cases it will need to be changed in order for the relearn to work.
-
Page 20: 4/6 Obd Diagnostics
These specific Service advices will only appear if applicable for the preselected Make, Model and Year combination. 4/6 OBD D IAGNOSTICS This option will only be listed for vehicles that Diagnostics Bartec coverage for. It reads information from vehicle such as the VIN, DTCs (Diagnostic Trouble Codes) and the IDs of the sensors. -
Page 21: 5/6 Technical Information
TECH600 User Guide 2020 5/6 T ECHNICAL NFORMATION Technical Gives detailed information about Information replacement parts, service kits, sensors, vehicles service tips. Sensors do not have to be read to access the following information. View Replacement Parts Used to show all Replacement Sensor part numbers that can be fitted to the preselected MMY View Service Kits Used to show all Replacement Service Kit part numbers that... -
Page 22: 6/6 Review Vehicle Data
TECH600 User Guide 2020 6/6 R EVIEW EHICLE Sensors and OBD need to have been read for data to be shown. The menu gives direct access to specific screens that display the Vehicle data. This option is helpful if the user wants to have a second look at the Sensor Data, OBD Data or wants to print the data from the last processed vehicle via the Bluetooth printer. -
Page 23: Settings
TECH600 User Guide 2020 ETTINGS Connections Connect to a Bluetooth OBDII Module, TPMS Desktop, and WiFi. General Check and update time and date on the tool, and change the language displayed Sound and Vibration Enable or disable tool sounds or vibrations TPMS Change the units displayed when reading a TPMS sensor, for Pressure, Temperature, and the TPMS ID... -
Page 24: Connecting To The Bluetooth
TECH600 User Guide 2020 OBDII M ONNECTING TO THE LUETOOTH ODULE Step 1: To connect the TECH600 to the Bluetooth (BT) OBDII module, select Connections in the Settings menu. Step 2: Turn the BT OBDll Module on by simply plugging it to the OBDII interface of any passenger vehicle. -
Page 25: Tpms Desktop
TPMS D ESKTOP The TPMS Desktop provides revolutionary technology to help manage Bartec TPMS tools on a PC. The TPMS Desktop is designed to work with the following Bartec tools; TECH400, TECH500, TECH600, TECH300, and the TAP100/200. Go to www.tpmsdesktop.eu... - Page 26 In these rare circumstances, or if the computer does not support Bluetooth, a Bluetooth adaptor be used. Additional information on how to install an adaptor can be found on the Bartec support website: tools.bartecautoid.com ETTINGS To be able to use the TECH600 with Bluetooth, the tool first needs to be configured.
-
Page 27: Updating The Tool Via Usb C
TECH600 User Guide 2020 Right click on the Bluetooth dongle icon and click on Bluetooth settings. Tick the boxes as seen on the Options tab above. Press OK when finished. Start the TPMS Desktop application and go to Settings. Open the Bluetooth section: the PC/Laptop should be connectable and discoverable for the TECH600. -
Page 28: Updating Your Tool Via W I Fi
(Off / Daily / Weekly / Monthly). Once the interval is set, the tool will use its internal clock to switch on WiFi, connect to the Bartec system and alert the user when an update is available. Check Now When pressing Enter, the tool connects to the WiFi network. - Page 29 TECH600 User Guide 2020 Digit in Year By using the vehicles VIN and locate the 10 digit from the left 1998 the user can in most cases accurately determine the vehicle’s 1999 Model Year. Take that digit and reference the chart on this sheet. This will be the Model Year which needs to be selected on the tool 2000 2001...
-
Page 30: Echnical Pecification
TECH600 User Guide 2020 The TECH600 tool has the ability to perform the necessary mode change. If a sensor is shown as “Ship”, “Test” or “Off” and the relearn toolkit provides the option “Set Sensor to Park Mode”, please use this option to change the sensor mode into the correct one: •... - Page 31 TECH600 User Guide 2020 31 | P a g e...
