HD SCAN™

Chapter 5 : LCD SCREEN DESCRIPTION

5-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and output status of the HD SCAN
• The CONTROL MODE allows to select and adjust the parameters of the HD SCAN
5-2. LCD CONTROL BUTTONS
The LCD screen is controlled by 3 buttons:
CONTROL knob:
EXIT / MENU button:
ENTER button:
NOTE: When entering in the CONTROL MODE, the LCD window will automatically display the STATUS MODE
after 60 seconds of inactivity of the front panel buttons.

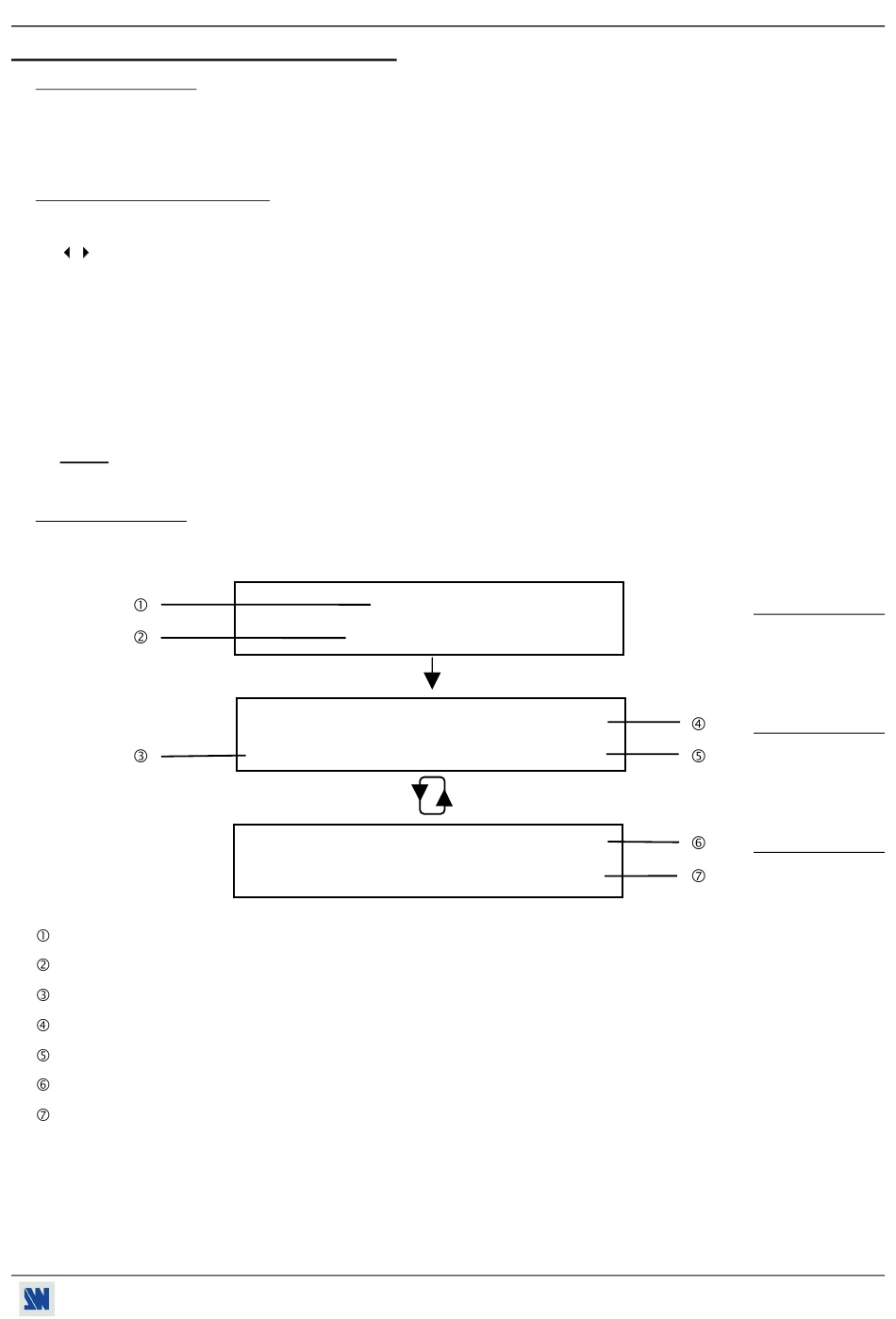

5-3. STATUS MODE
When switching ON, the LCD SCREEN shows the product's name and reference as follows:
Product reference.
Product designation.
Referenced sync.
Output format.
Output frame rate.
Input format.
GENLOCK status.
To scroll thru the different menus.
• From the STATUS MODE, press this button to display the CONTROL MODE.
• From the CONTROL MODE, press this button to:
- return to the previous menu,
- return to the STATUS MODE (press several times),
- return without safeguarding the item.
• From the STATUS MODE, press this button to return to the last consulted menu.
• From the CONTROL MODE, press this button to confirm a selected item.
HD SCAN
XTD920-HDDG
OUTPUT
internal
INPUT
GENLOCK
™
.
™
.
1080i
60 Hz
SVGA
none
STATUS MENU
STATUS MENU
STATUS MENU
