Chapter 3 : TECHNICAL DESCRIPTION

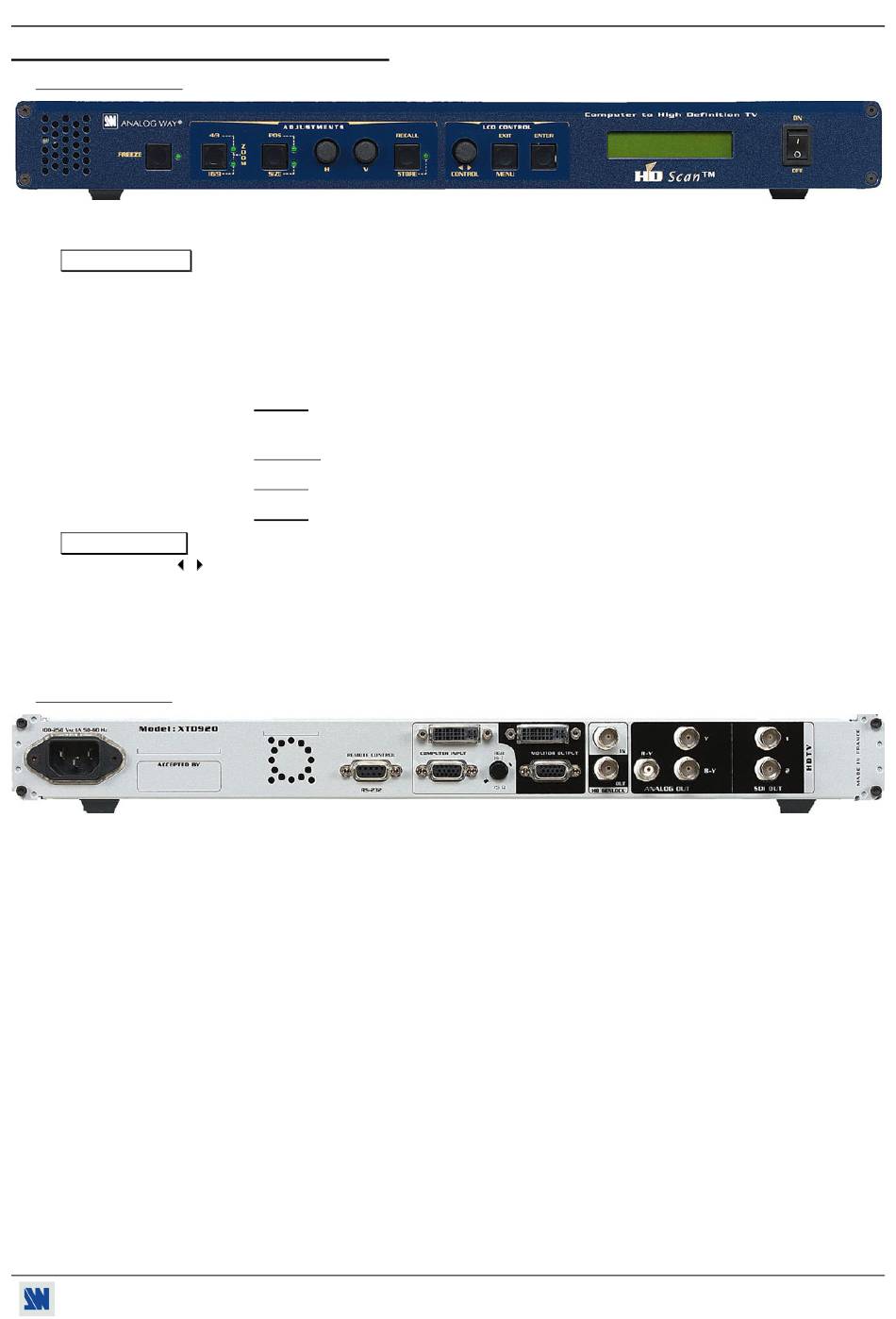

3-1. FRONT PANEL
FREEZE:
ADJUSTMENTS
4/3 - 16/9 - ZOOM:
POS / SIZE:
H:
V:
RECALL / STORE:
LCD CONTROL
CONTROL
EXIT MENU:
ENTER:
ON / OFF:
3-2. REAR PANEL
POWER INPUT:
REMOTE CONTROL:
COMPUTER INPUT:
RGB Hi-Z / 75 Ω:
MONITOR OUTPUT:
HD GENLOCK:
IN:
OUT:
HDTV:
ANALOG OUT:
SDI OUT (1 and 2): Two independent SDI HDTV outputs on BNC connectors.
Allows to freeze the displayed image. (See also the LCD menu # 4-3).
4/3, 16/9, or Zoom mode selection.
Position or Size mode selection.
Horizontal Image adjustment.
Vertical Image adjustment.
NOTE: H and V knobs act on the position or size of the image according to the selected
POS/SIZE mode.
RECALL (a short push on the button): Allows to recall the stored images settings.
STORE (a long push, LED = ON): Allows to store all the image settings.
NOTE: The HD SCAN
: Allows to select items in the LCD menu.
Allows to exit from the LCD menu.
Allows to validate a selected item.
AC power switch (O = OFF, I = ON).
Standard IEC Connector (100-250VAC, 50-60Hz Automatic).
Standard RS-232 interface on DB9 female connector.
Computer input on HD15 female connector (DVI-I connector in option).
RGB input load. Set this button on Hi-Z if you connect a monitor on the MONITOR OUT
connector. If not set it on 75 Ω.
Monitor output (loopthrough) on HD15 female connector (DVI-I connector in option).
GENLOCK input on a BNC connector. (HDSDI on XTD920-HDDG, or HD analog on
XTD920-HDAG).
GENLOCK output (loopthrough) on a BNC connector.
High Definition TV output (analog and SDI).
Analog HDTV output (R-Y, Y, B-Y) on 3 BNC connectors.
™
has 40 NON-volatile image setting memories.
