2.405 IACKIN/IACKOUT Daisy Chain
The AIN has the ability to generate a VMEbus interrupt. Therefore, jumper J1 is
hardwired in position "B" to enable the IACKIN/IACKOUT daisy chain.
The jumper shorting IACKIN to IACKOUT for the
AIN's slot in the backplane must be removed, or the
AIN may be damaged.
2.4.6 Interrupt Level Switches
Figure 2-3 shows Switch Bank 1 with its three interrupt level select switches. Table
2-6 illustrates their use.

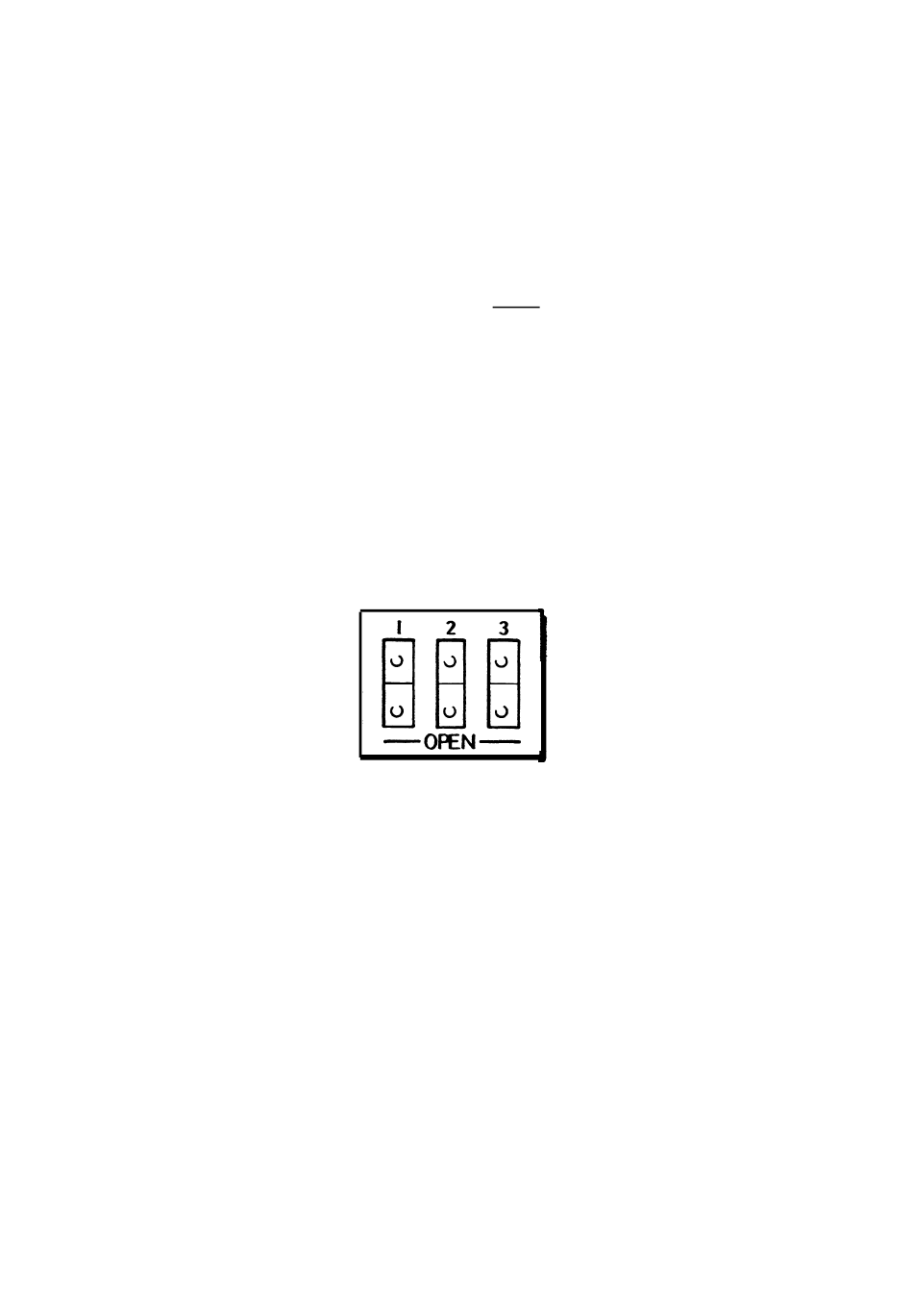

Figure 2-3. Switch Bank 1 Interrupt Level Select Switches
CAUTION
