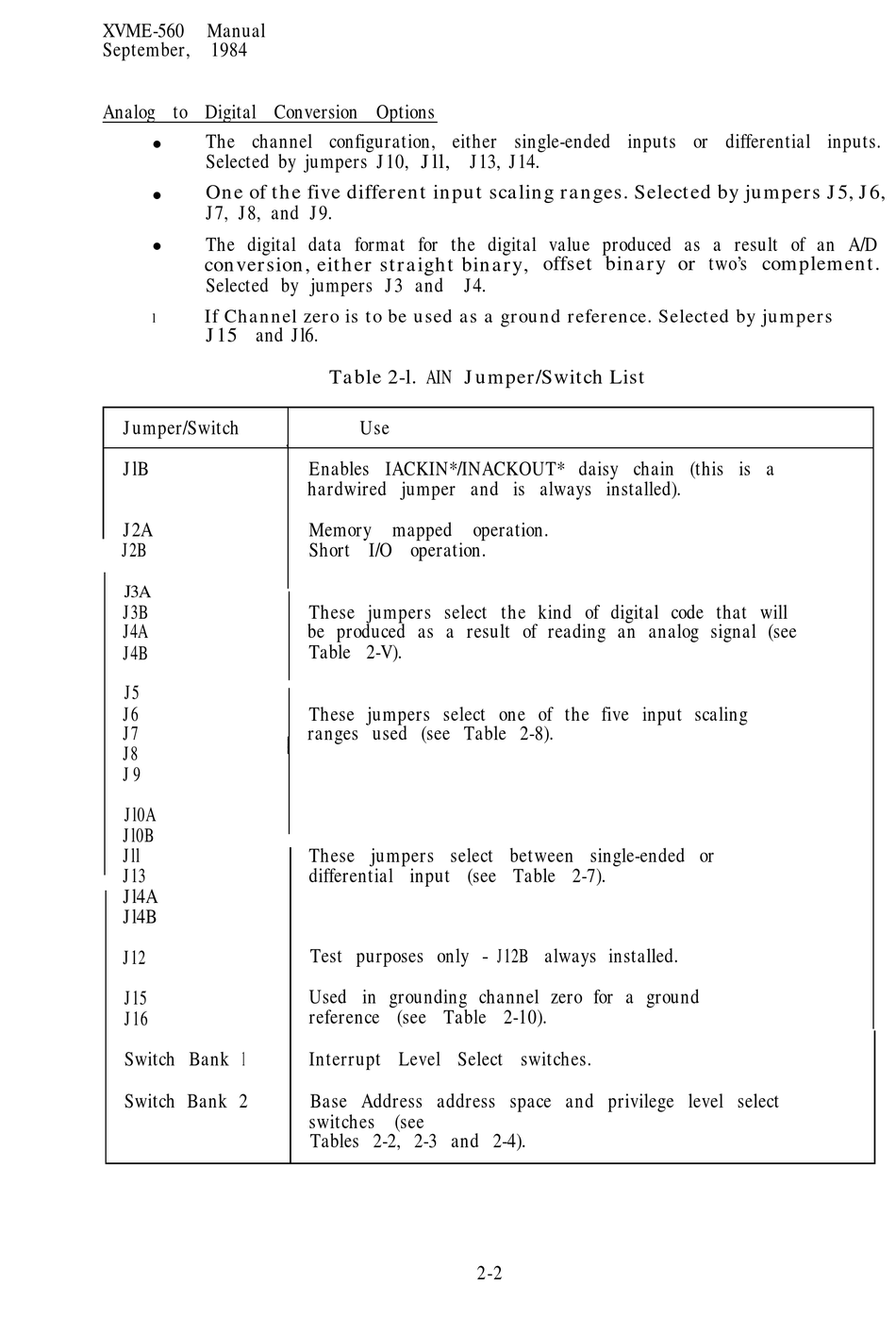

XVME-560 Manual
September, 1984
Analog to Digital Conversion Options
The channel configuration, either single-ended inputs or differential inputs.
l
Selected by jumpers J10, Jll, J13, J14.
One of the five different input scaling ranges. Selected by jumpers J5, J6,
l
J7, J8, and J9.
The digital data format for the digital value produced as a result of an A/D
l
conversion, either straight binary, offset binary or two's complement.
Selected by jumpers J3 and J4.
If Channel zero is to be used as a ground reference. Selected by jumpers
l
J15 and Jl6.
Jumper/Switch
JlB
J2A
J2B
J3A
J3B
J4A
J4B
J5
J6
J7
J8
J 9
Jl0A
Jl0B
Jll
J13
Jl4A
Jl4B
J12
J15
J16
Switch Bank 1
Switch Bank 2
Table 2-l. AIN Jumper/Switch List
Use
.
Enables IACKIN*/INACKOUT* daisy chain (this is a
hardwired jumper and is always installed).
Memory mapped operation.
Short I/O operation.
These jumpers select the kind of digital code that will
be produced as a result of reading an analog signal (see
Table 2-V).
These jumpers select one of the five input scaling
ranges used (see Table 2-8).
These jumpers select between single-ended or
differential input (see Table 2-7).
Test purposes only - J12B always installed.
Used in grounding channel zero for a ground
reference (see Table 2-10).
Interrupt Level Select switches.
Base Address address space and privilege level select
switches (see
Tables 2-2, 2-3 and 2-4).
2-2
