Install the Access Point
3. Attach both the cable clamps to the WS-MBO-POLE01 bracket.
Open the cable clamp by turning a flat bladed screwdriver counterclockwise. Then insert the non-
clamp end into the pole bracket through the holes.
4. Put the metal band around the pole and attach the WS-MBO-POLE01 bracket to the pole.
5. Tighten the cable clamp screw clockwise, tightening the band around the pole.

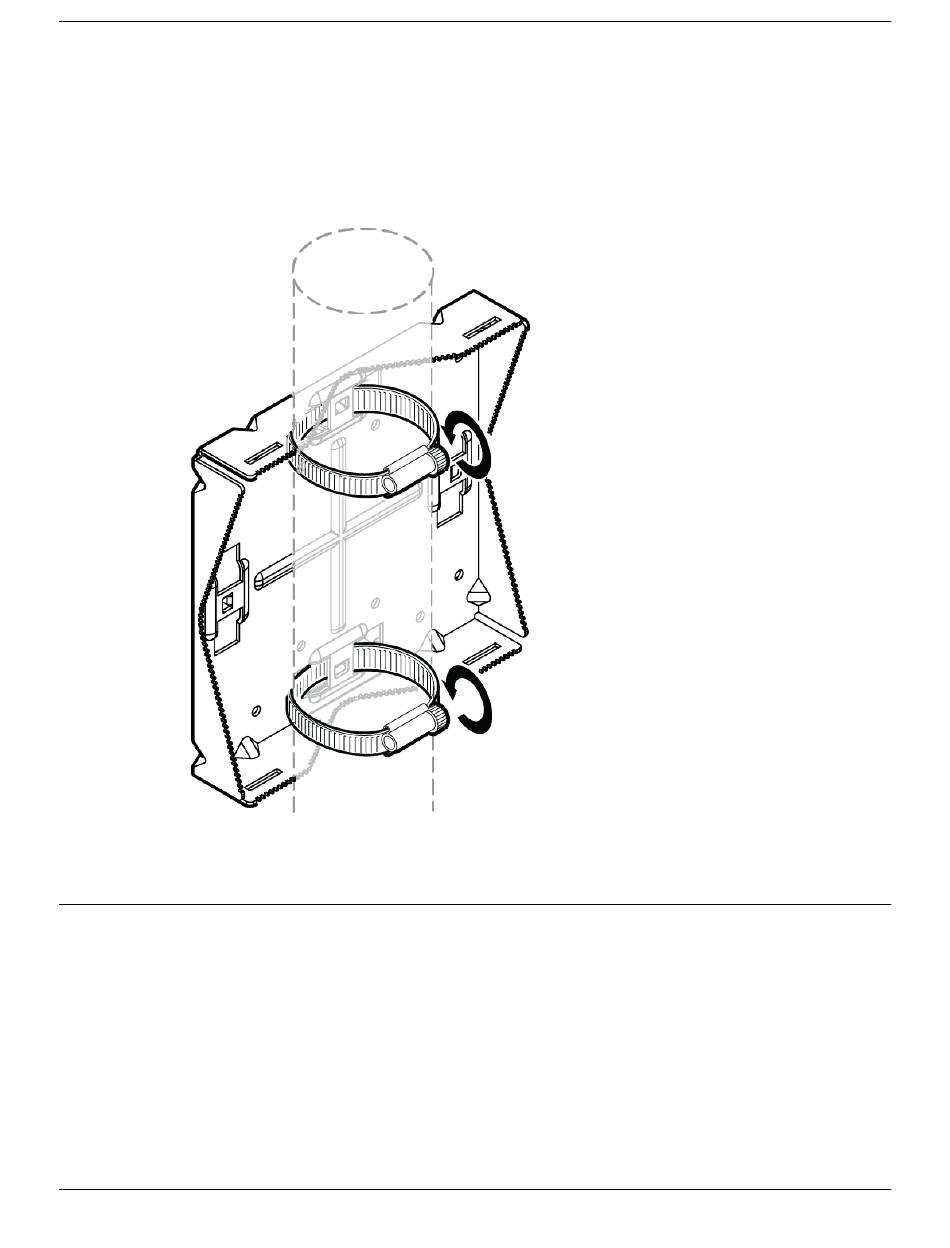

Figure 11: Tightening the cable clamps on the POLE01 bracket

Install the Plastic Service Panel on the Access Point

About This Task
A service panel is used to protect the access point glands from damage. A service panel must be
installed when:
•
The access point is installed with an under-seat enclosure.
•
The access point is installed with the ART02 articulating mounting bracket with more than 20
degrees tilt.
Install the Plastic Service Panel on the Access Point
