Clamp Bracket - Steelcase Groupwork Flip-Top Table Manual

®
14.

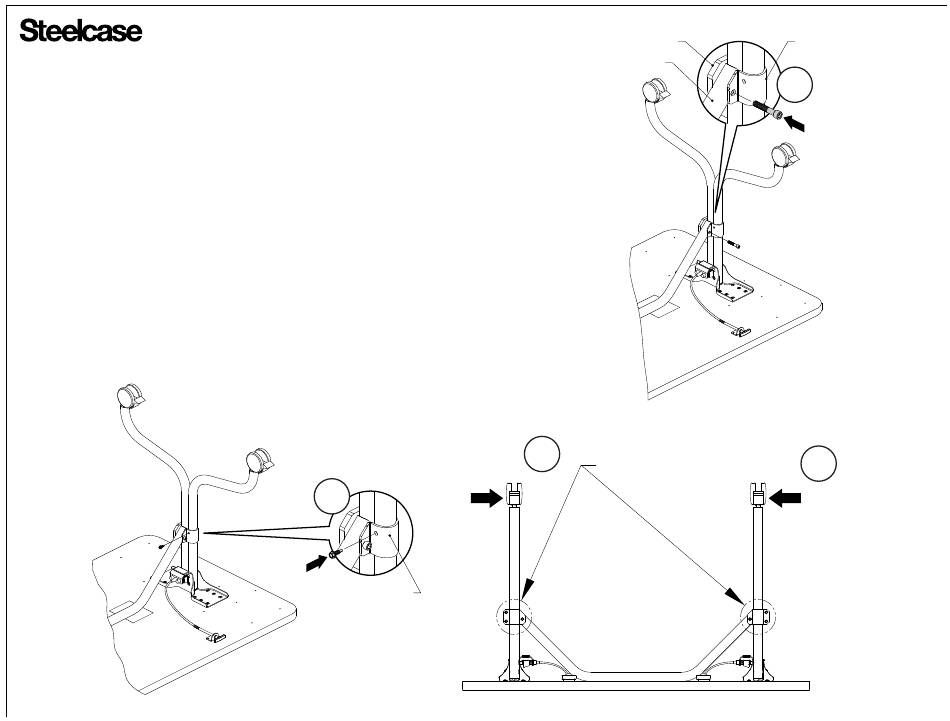

Insert a 3/8-16 x 1-3/4" socket head cap screw through holes in clamp
bracket and linkage bar, and loosely fasten to threaded clamp plate.
15.
Repeat steps 13 &14 on opposite leg. If holes don't line up in step 14
push legs inboard.
16.
Tighten all six (6) socket head cap screws in both clamps.
When properly fastened, screw threads will be fully engaged into
threads in clamp plate.
17.
Using power drive r, install #12-14 x 3/4" hex head self-drilling tapping
screw into leg tube through small hole in clamp bracket, on both legs.
18.
Remove cardboard spacers.
17

CLAMP BRACKET

THREADED CLAMP PLATE
LINKAGE BAR
16
SIX (6) SOCKET HEAD CAP SCREWS
CLAMP BRACKET
14
15
PUSH LEGS INBOARD
AS NEEDED TO
LINE UP HOLES
Page 8 of 30
939501618 Rev U
