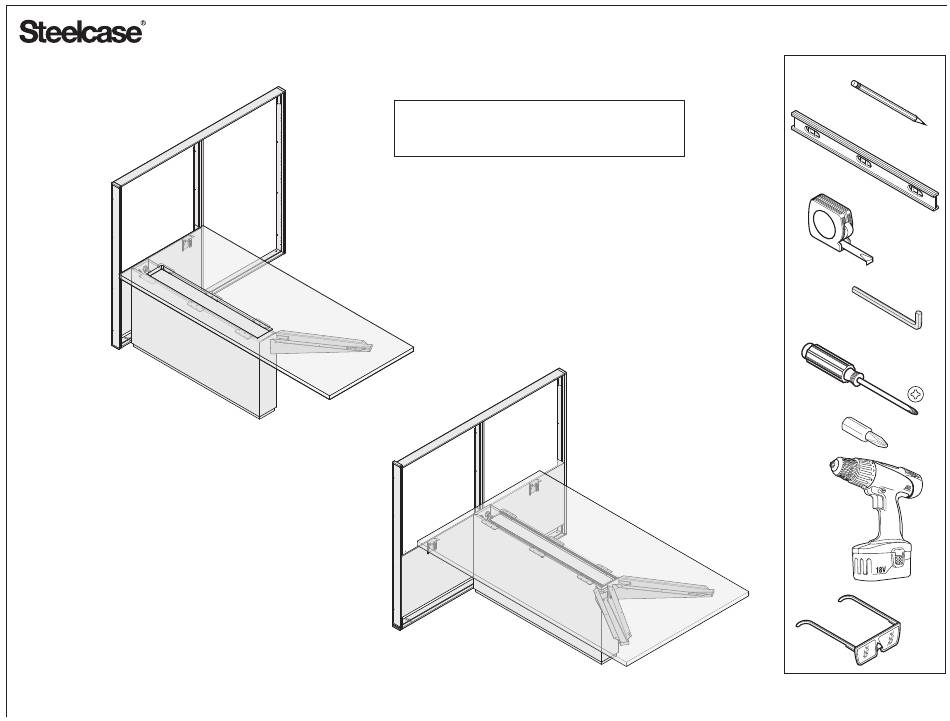

FlexFrame - Cantilever Desk and Table Installation
IMPORTANT: Refer to pages 3 through 6 of
assembly direction 939502107 for information
on locating worksurfaces.
Cantilever Table
5/32"
Page 1 of 9
939502138 Rev B
