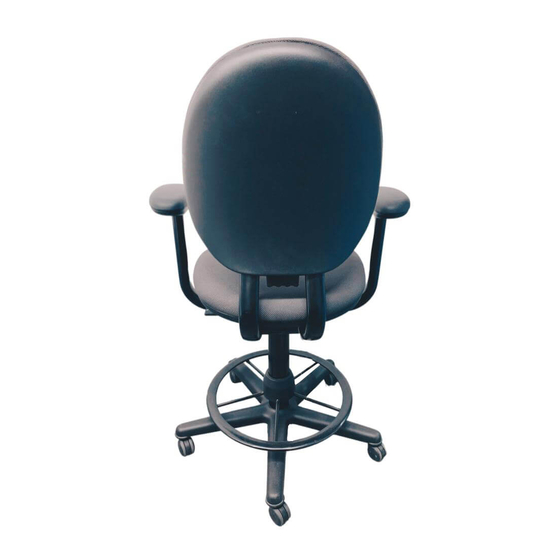

Steelcase Criterion 453 Series Manual
Stool ring, stool base replacement
Hide thumbs
Also See for Criterion 453 Series:
- Replacement manual (18 pages) ,
- Replacement manual (2 pages) ,
- Assembly directions (6 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Criterion 453 Series
Summary of Contents for Steelcase Criterion 453 Series

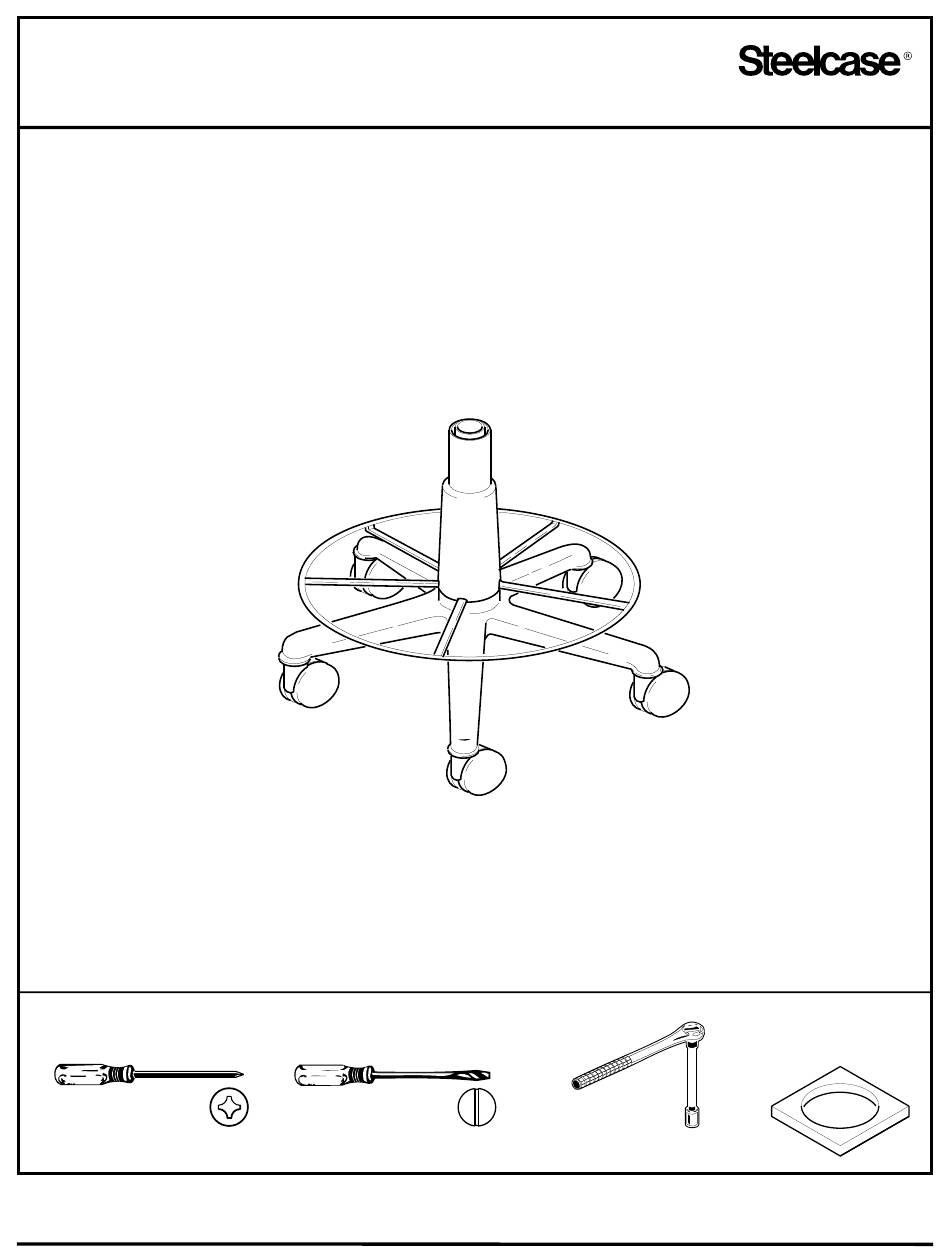

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 453 Criterion Stool Ring, Stool Base Replacement ® (Models: 453-7400, 7410, 7420, 7430, 7500, 7510, 7520, 7530) Tools Installation Tool (P.N. 89-4532100) 7/16" Socket w/ 8" Extension Assembly Directions Printed In U.S.A.
- Page 2 Turn stool upside down. Remove base. Remove base cover. BASE COVER Push installation tool over adjustment bushing until tool is seated against ring hub. ADJUSTMENT INSTALLATION BUSHING TOOL RING HUB RING HUB Assembly Directions Page 93-9503997 REV A 2 of 4...
- Page 3 Pull up on ring. Slide ring assembly Remove ring assembly. over adjustment bushing. Remove adjustment bushing. ADJUSTMENT BUSHING FOOT RING ASSEMBLY RING HUB ADJUSTMENT BUSHING Remove (5) screws. Remove base cap. Align notch in bottom of adjustment Place base cap on new base. Insert bushing with pin in base hub.
- Page 4 Align notch in footring hub with key, near the bottom of the adjustment bushing. Push footring down. FOOT RING ASSEMBLY NOTCH Reattach base to stool. Before tightening nut, be sure tabs on mounting bracket are seated in the washer BASE COLUMN WASHER TABS...
