13.

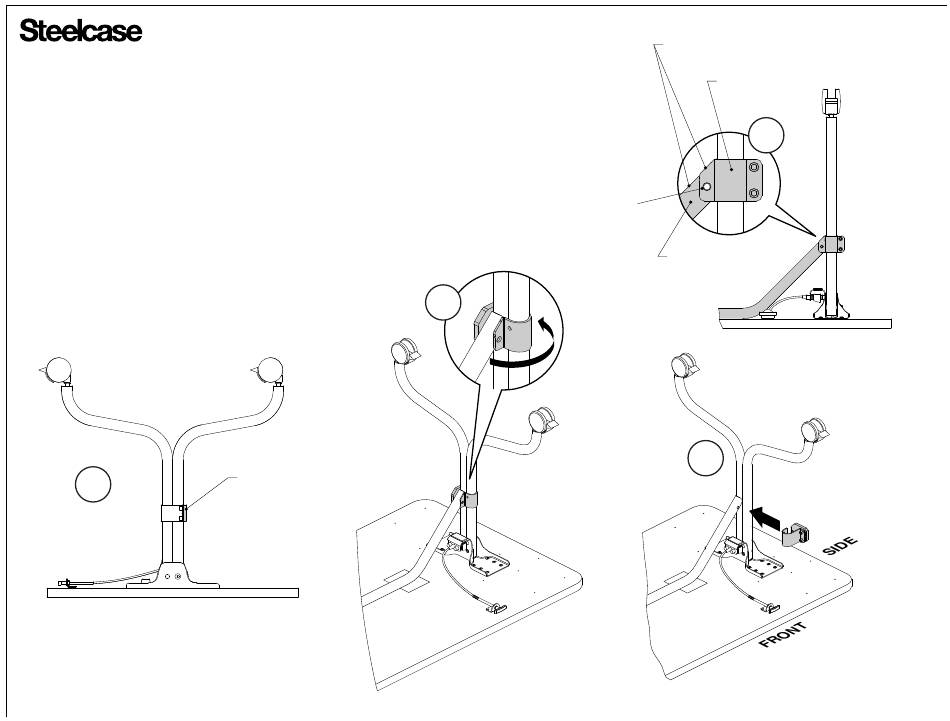

Visually line up single hole and 45° edges in clamp assembly,
with hole and 45° bend in linkage bar (13a). With threaded clamp plate
facing side edge of table, slide clamp assembly over front leg tube (13b).
Rotate clamp assembly 90° (13c) so that threaded clamp plate faces
rear edge of table (13d).
NOTE: Damage to leg finish could occur if clamp assembly rubs
against leg during installation.
13d
THREADED
CLAMP PLATE
REAR
HOLE
13c
o
45 CLAMP EDGES ALIGNED WITH
o
45 BEND IN LINKAGE BAR
CLAMP
LY
ASSEMB
13a
LINKAGE BAR
13b
