Troubleshooting Guide
Cantilevers

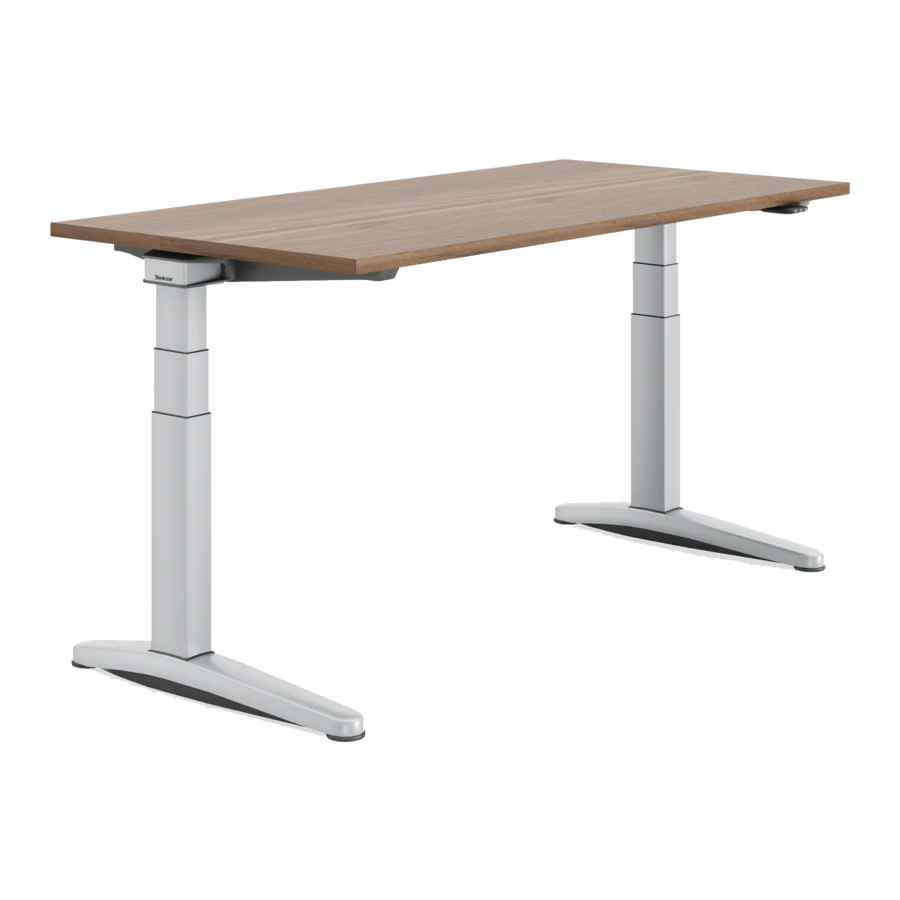

Ology
height-adjustable desk and bench
Published 6/2020
™

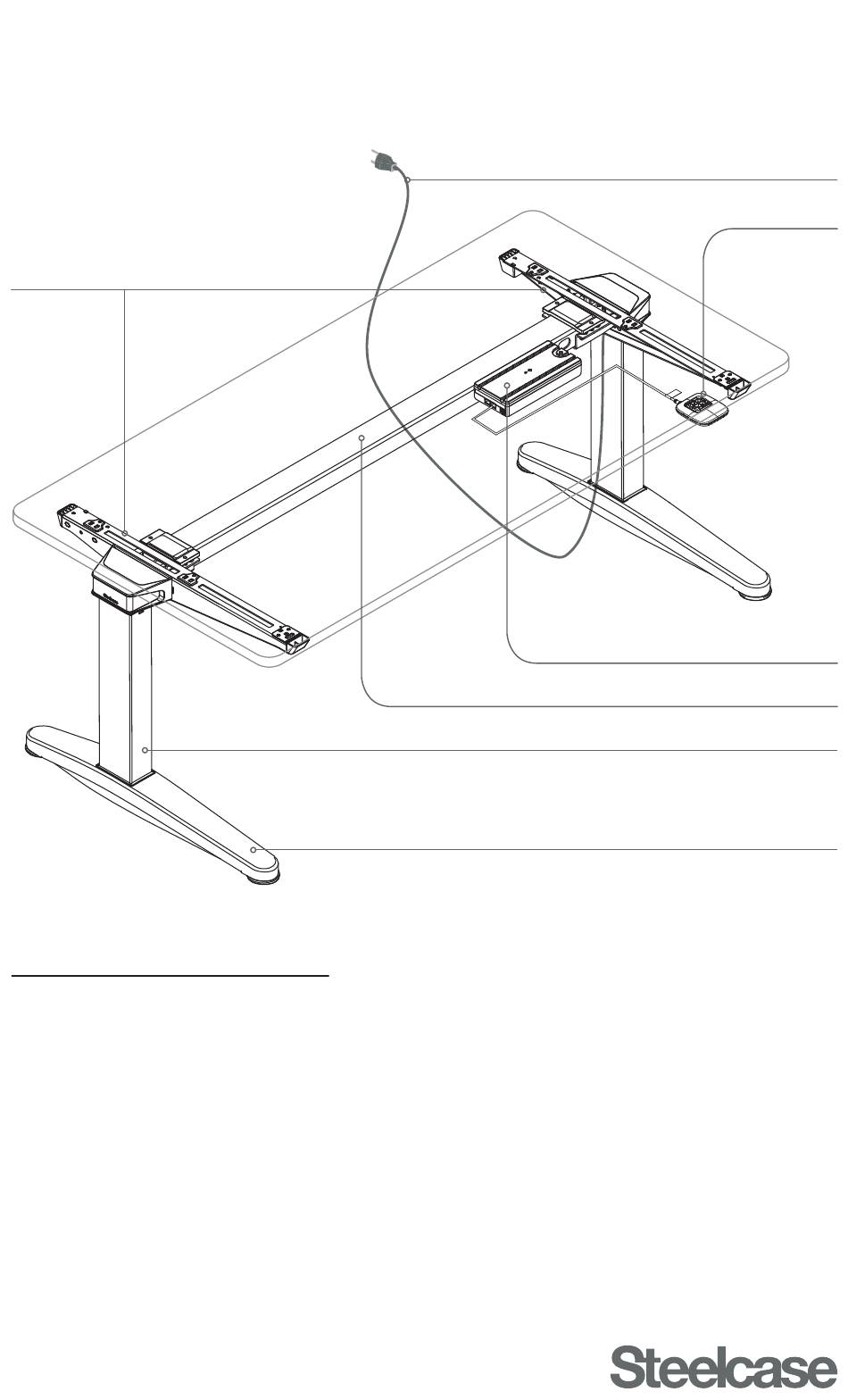

Power Cord
Controller
Control Box
Understructure
Lifting Column
Foot
