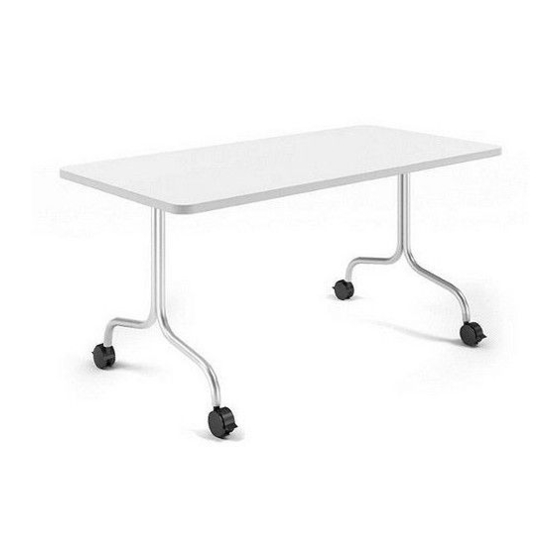

Steelcase Groupwork Flip-Top Table Assembly Replacement

®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2017 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

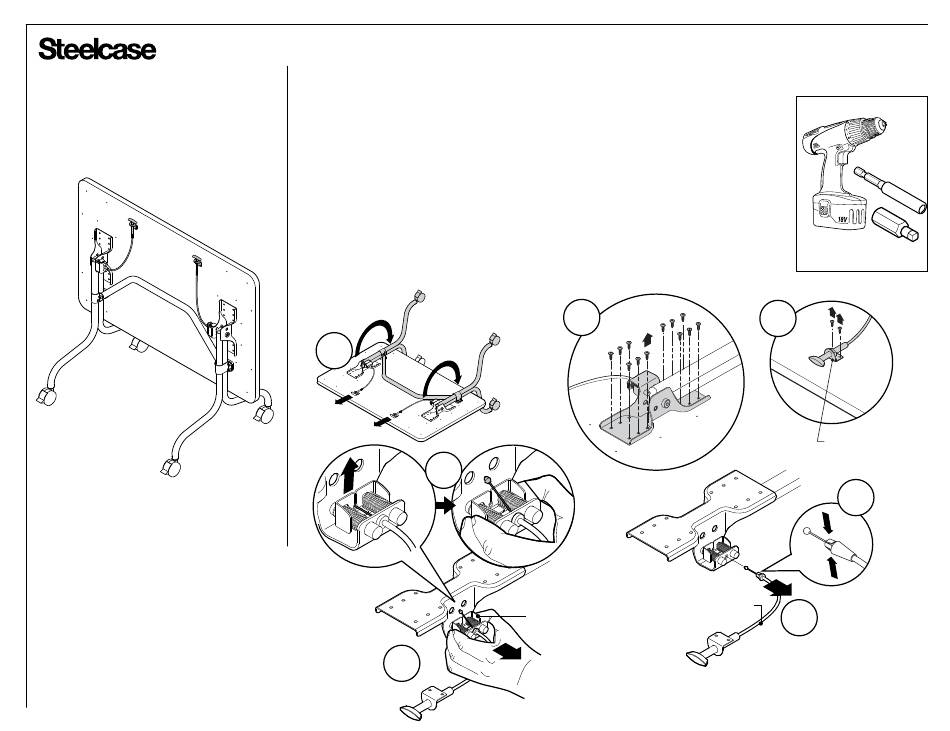

Control Lever Cable Assembly Replacement
1.
With two (2) people lifting the table, carefully place it upsidedown onto a clean,
smooth surface, such as a table top.
NOTE: Protect top surface from scratches while working.
2.
If tables legs are unfolded (vertical), pull control levers to release locking pins,
and lower legs into horizontal position.
3.
Remove screws from plates (3a) and from control lever brackets (3b).
NOTE: Retain screws to use in steps 7 and 8.
4.
Flip plate and leg assembly over so that cable end is visible and accessible.
Grasp cable bracket and pull it toward you to compress springs (4a). Slide cable
end up and out of slot (4b). While pressing the lock tabs (4c), pull cable through
the hole in cable bracket (4d). Discard control lever cable assembly.
Repeat steps 4a through 4d on opposite leg.
2
4b
4a
Groupwork™ Flip-Top Table
3a
CONTROL LEVER
CABLE ASSEMBLY
CABLE
BRACKET
SQUARE DRIVE
3b
CONTROL LEVER
BRACKET
4c
4d
English - Pages 1 to 3 of 9
French - Pages 4 to 6 of 9
Spanish - Pages 7 to 9 of 9
Page 1 of 9 1075139001 Rev C
