Steelcase 458 Sensor Manual

Chair base, base cap, caster and glides

Download this manual

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2004 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

458 Sensor

The following directions are provided to aid when replacing the

component parts or assemblies listed:

• Base Caps

• Casters & Glides

NOTE: All specifications concerning installation procedures, in. - lbs.,

grease, etc. should be followed to insure proper chair function.

Base Caps ........................................................ 2 - 3

Casters & Glides ..............................................

Chair Base, Base Cap, Caster And Glides

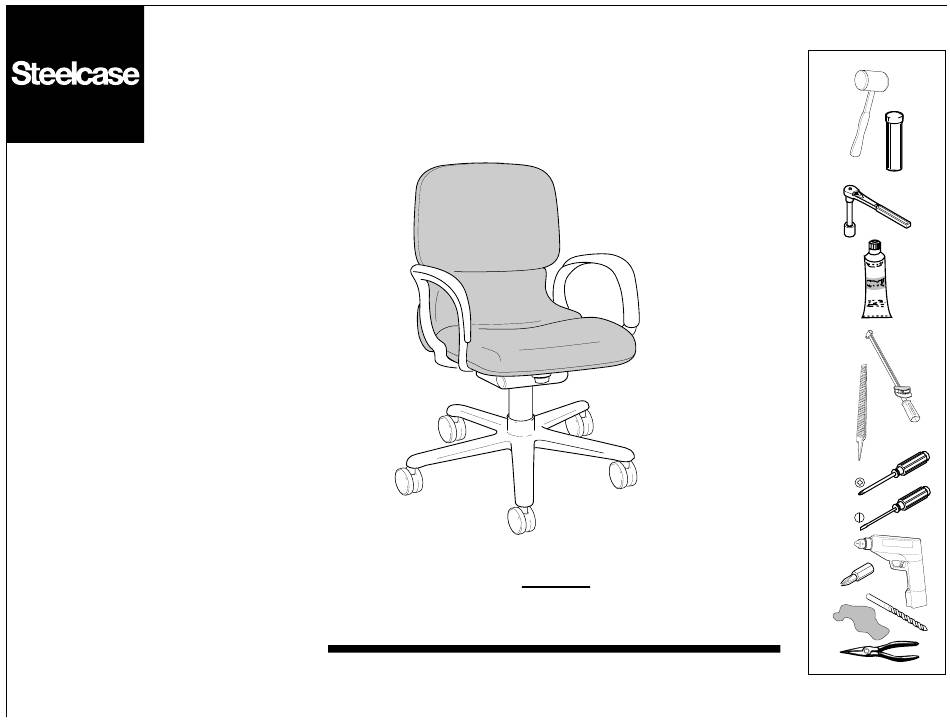

Typical 458 Sensor Chair

Index

Page 1 of 4

939501519 Rev A

Need help?

Do you have a question about the 458 Sensor and is the answer not in the manual?

Page 1 Typical 458 Sensor Chair If you have a problem, question, or request, call Index your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. NOTE: All specifications concerning installation procedures, in. - lbs., (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
Page 2 Base Retainer Clip and Flat Washer Remove (5) Screws Old Base Cap Base Caps Base Hub Tube Push Cap NOTE: Do not over tighten screws on base Base cap, dimples may occur. Assembly Base Cap Replacement Turn chair upside down. Remove base retainer clip and washer if included (old clip should be discarded).
Page 3 Fixed Base Turn chair upside down. Locate and remove 1/2" hex head bolt from inside base tube, using a 3/4" Remove socket. Remove base from chair by pulling up and off. Follow the standard base procedure for removing and installing the base cap. Re-install the base onto chair by rotating until the notch on base tube drops down onto raised tab on chair control.
Page 4 Casters Casters To remove casters, strike with a rubber mallet. Insert new casters. Glides Glides To remove glides, strike with a rubber mallet. Insert new glides. Page 4 of 4 939501519 Rev A...
