AVerVision CP300 Quick Reference Guide
Capturing an Image
• Place object inline with camera head
• Press
/ button (on remote or
CAP DEL
on control panel)
• Image is now captured!
Capture Images Continuously
• Press
MENU
• Select
CAPTURE
• Select
CONTINUOUS CAPTURE
• Select desired interval
(5-600 seconds)
• Press
/ to begin capturing
CAP DEL
• Press
/ to stop
CAP DEL
* In order to capture images singly
once again, doc cam must be set to
single image capture.
(Menu => Capture => Single)
Transfer Captured Images to PC
• Ensure USB cable is disconnected
• Press
and select
MENU SETTINGS
• Select
USB CONNECTION
• Select
IMG DOWNLOAD
Press to close on-screen display
MENU
• Connect USB cable to computer
• Computer system will automatically
detect the new removable disk.
(similar to a flash/thumb drive)
Zoom Using Shuttle Wheel
• Turn Shuttle wheel clockwise to zoom
in and counter-clockwise to zoom out
• Zoom max is 1600%
• Press
to return to normal view
ENTER
(100%)
Split Screen
• View ½ saved image and ½ real image
• Press S
to begin
PLIT SCREEN
Picture in Picture
• View captured images and real image
simultaneously
•
computer's
• Press
to begin
PIP
and press
ENTER

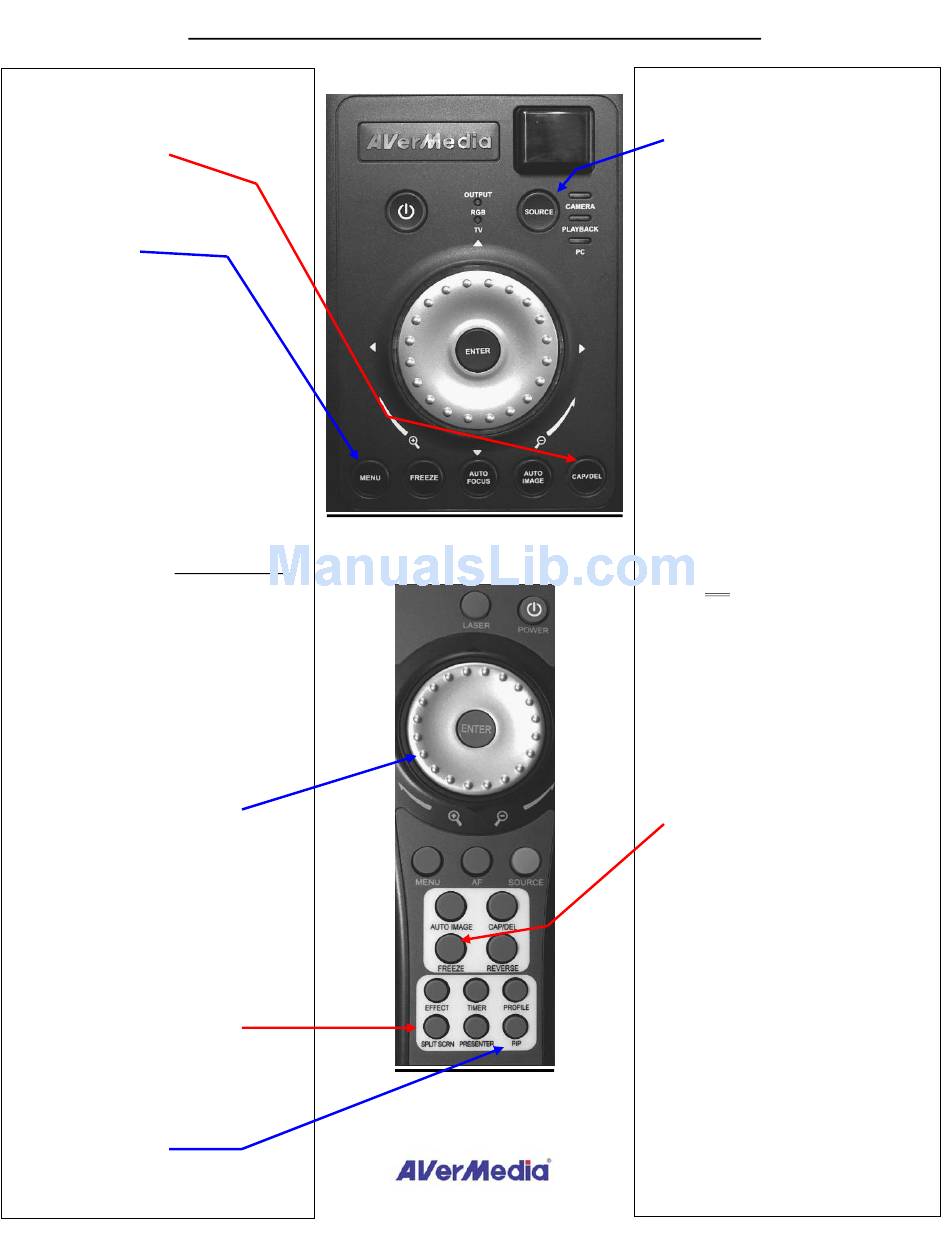

Control Panel

Remote Control

SK 05/06/08
View Captured Images
• Press
button until LED light
SOURCE
indicates
PLAYBACK
• Screen will display images as
thumbnails
• Move to desired image by using
arrow keys
• To enlarge image to full screen, press
ENTER
• To return to screen with images as
thumbnails, press
ENTER
• To return back to document camera
mode, press until
SOURCE
mode is indicated
Deleting Captured Images
• Access
by pressing
PLAYBACK
• Select desired image with arrow keys
• Press C
/
AP DEL
• Select
YES
Delete all images at Once
• Press
button
MENU
• Select
SETTINGS
• Select
FORMAT MEMORY
• Select
YES
• Memory reformats in ≈ 20 seconds
Other Helpful Reminders
• Zoom > 100% to use Pan Feature
• Use
function for smooth
FREEZE
transitions
• If using doc cam with S-video or
composite connection, set output
to TV
(Small black switch next to flex arm)
• When experiencing glare, try angling
LED light module or using the
included anti-glare sheet
• Use the laser positioning guides to
determine camera shooting area
(helps with centering document)
• Turn off document camera by pressing
and holding button for
POWER
2 seconds
• Use
function to
AUTO IMAGE
automatically adjust and set the
white balance and exposure setting
CAMERA
