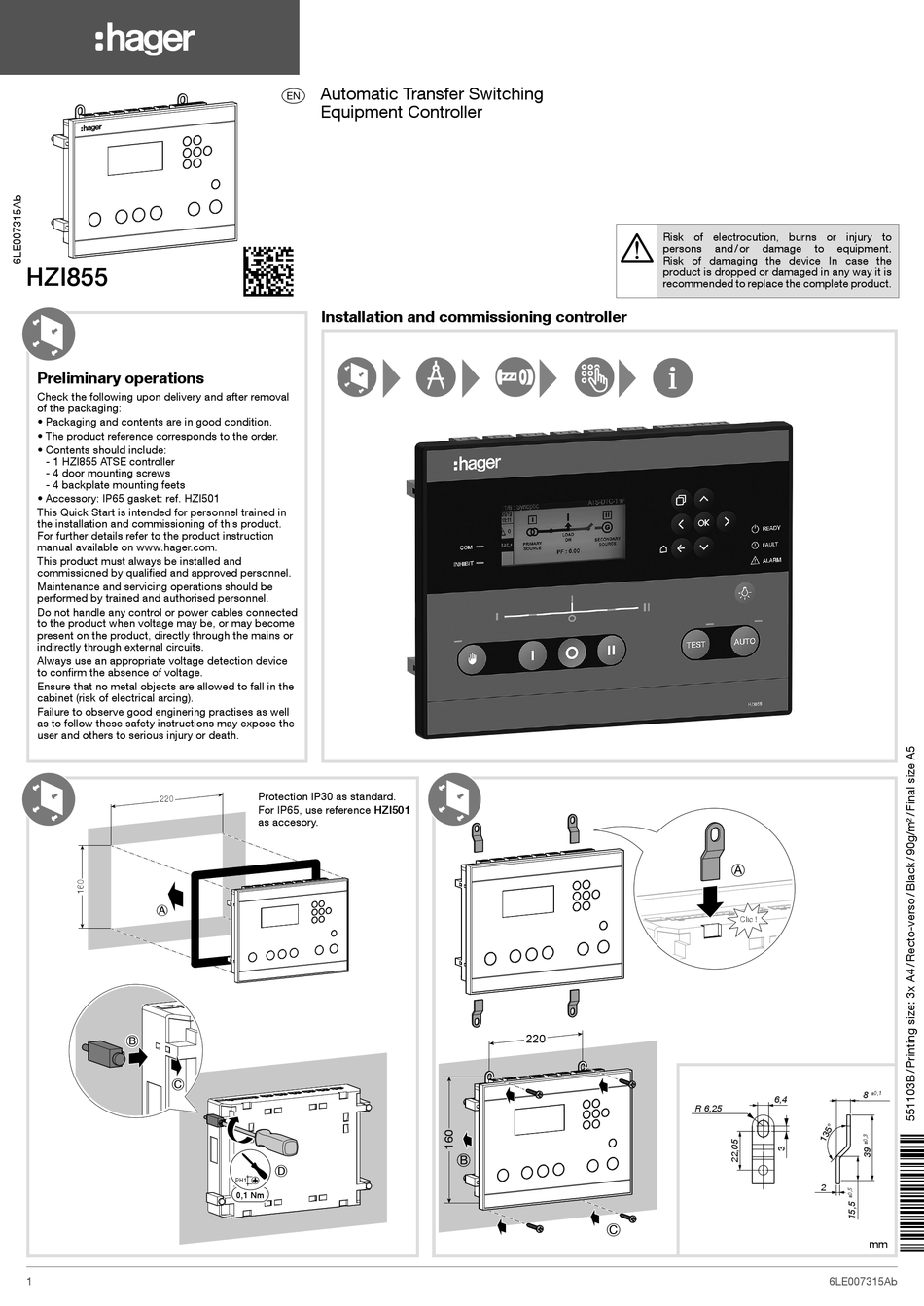

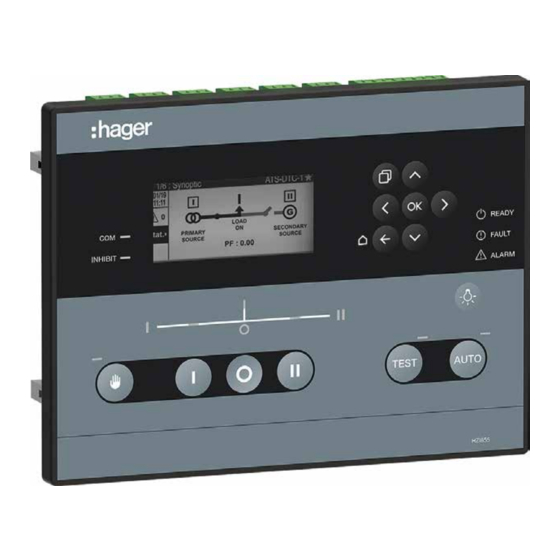

Automatic transfer switching equipment controller

Advertisement

Quick Links

HZI855

Preliminary operations

Check the following upon delivery and after removal
of the packaging:
• Packaging and contents are in good condition.
• The product reference corresponds to the order.
• Contents should include:
- 1 HZI855 ATSE controller
- 4 door mounting screws
- 4 backplate mounting feets
• Accessory: IP65 gasket: ref. HZI501
This Quick Start is intended for personnel trained in
the installation and commissioning of this product.
For further details refer to the product instruction
manual available on www.hager.com.
This product must always be installed and
commissioned by qualified and approved personnel.
Maintenance and servicing operations should be
performed by trained and authorised personnel.
Do not handle any control or power cables connected
to the product when voltage may be, or may become
present on the product, directly through the mains or
indirectly through external circuits.
Always use an appropriate voltage detection device
to confirm the absence of voltage.
Ensure that no metal objects are allowed to fall in the
cabinet (risk of electrical arcing).
Failure to observe good enginering practises as well
as to follow these safety instructions may expose the
user and others to serious injury or death.
220
A
C
1
z Automatic Transfer Switching
Equipment Controller
Installation and commissioning controller
Protection IP30 as standard.
For IP65, use reference HZI501
as accesory.
D
PH1
0,1 Nm
Risk of electrocution, burns or injury to
persons
Risk of damaging the device In case the
product is dropped or damaged in any way it is
recommended to replace the complete product.
220
R 6,25
C
and / or
damage
to
equipment.
A
Clic !
8
±0,1
6,4
2
mm
6LE007315Ab
