hager TKP100A Configuration Manual

Coviva smartbox
Hide thumbs Also See for TKP100A:
Table of Contents

Advertisement

Quick Links

Download this manual

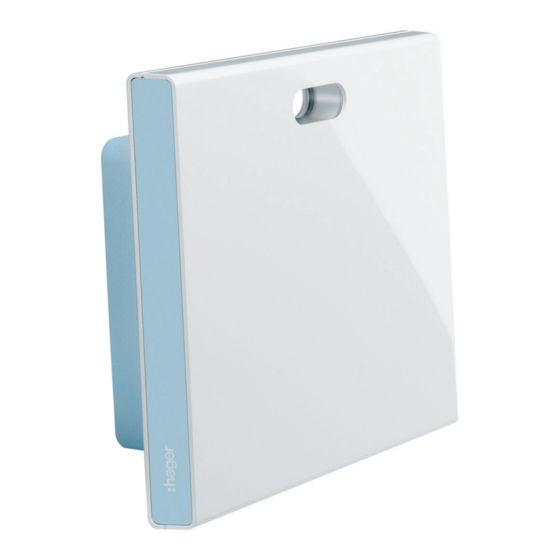

coviva smartbox
hager.com
Mounting and configuration instructions
coviva smartbox
TKP100A
WLAN stick
TKH180
Power supply (replacement
requirement)
TKC110
Page 1/45
installer_07-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKP100A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hager TKP100A

Summary of Contents for hager TKP100A

  • Page 1 Mounting and configuration instructions coviva smartbox TKP100A WLAN stick TKH180 Power supply (replacement requirement) TKC110 hager.com Page 1/45 installer_07-2017...

  • Page 2: Table Of Contents

    Example 3: All OFF: ............................28 Edit/remove covigram .............................30 Add device to the favourites list ..........................32 Remove device from the favourites list ........................32 Add user .................................33 Edit/remove user..............................34 Change settings ..............................34 4 Project handover ........................37 Hand over project ..............................37 hager.com Page 2/45 installer_07-2017...
  • Page 3 Carry out a network reset ...........................41 Carry out a user reset ............................42 Carry out rest to factory settings ........................42 RGB LED display ..............................42 Remote maintenance ........................43 Appendix ............................44 User profiles and rights ......................44 Technical data ..........................44 Accessories ..........................45 hager.com Page 3/45 installer_07-2017...

  • Page 4: Safety Instructions

    (9) Acknowledge button OK (10) Button RESET (11) Protective cover Scope of delivery – coviva smartbox – Adapter plate for wall mounting (12) – Power supply 230 V~/5 V (13) – RJ45 connection cable, Cat 5e (14) hager.com Page 4/45 installer_07-2017...

  • Page 5: Optional Accessories

    This solution is especially designed for implementing smart Home functions and comfort in mod- ernised or retrofitted systems. mobile-App Web-App Internet WLAN/IoT Mobile communications Radio (KNX radio, TwinBand) Figure 2: Application environment Not available in every country. hager.com Page 5/45 installer_07-2017...

  • Page 6: Correct Use

    PC, … – simple creation of scenes (covigrams) via the app – self-configurable messages after events – remote access and remote maintenance via integrated Dyn DNS service – Logic operations – Updates with notifications available online hager.com Page 6/45 installer_07-2017...

  • Page 7: The Project Process

    In order to create a project with the smartbox, a successful registration Table 1 under hager. com is necessary. Registration only has to be carried out once prior to the first coviva project. The same myHager account has to be used for all further coviva projects.

  • Page 8: Install Coviva Mobile-App

    Please read on here for my.client@email.com right now: Newsletter Yes, please send me newsletters to inform me of new Complete registration products, services and software updates from Hager Vertriebsgesellschaft. Send Mandatory fields Figure 4: myHager account Install coviva mobile-App Log in to the corresponding app store on the mobile device and select the coviva app.

  • Page 9: The First Login

    Figure 6: First Login If the General Term of Use (GToU) for the coviva app have not yet been accepted in the my- Hager account, the corresponding web page must be accessed at this point. To do this, press the myHager GToU button.

  • Page 10: Installation And Commissioning

    The smartbox can also be set up in a network cabinet with a depth of at least 50 mm. Then, however, the material with its penetration for radio signals must be taken into account (Table 2) hager.com Page 10/45 installer_07-2017...

  • Page 11: Connect Device To The Lan Using A Cable

    (4) and connect to a socket „ outlet. The operation LED POWER (6) lights up. The RGB display (1) flashes white while booting and then goes out. The ONLINE status display (8) lights up white. hager.com Page 11/45 installer_07-2017...

  • Page 12: Connect Device Wirelessly To Wlan

    Only use the WLAN stick listed under accessories. WLAN sticks of other manufacturers are not compatible. Configure the WLAN settings (see Configure WLAN integration of the device). „ RESET ONLINE WLAN POWER Figure 9: Wireless integration into the network hager.com Page 12/45 installer_07-2017...

  • Page 13: Configuration

    (during work on a construction site), provided the user is logged in. Only applications which require Internet access, such as remote access and IoT device, will be unavailable during this time. hager.com Page 13/45 installer_07-2017...

  • Page 14: Create A New Project

    Wifi Logout and Handover The status LED of your coviva controller will turn on when a compliant wifi extension is installed. App version {{version}} Copyright Hager Group 2015 All rights reserved Settings Wifi settings Settings Name and Password coviva Hotspot mode...
  • Page 15 Please connect to your coviva my devices Please add the email address of the controller by scanning controller’s Principle user. Use Hager portal QR-code or typing in your coviva account email address ID.Make sure that you have access to the local n...the coviva controller...

  • Page 16: Update Device Software

    Add User Please add the email address of the Principle user. Use Hager portal account email address Email Please add the email address of the Repeat email Principle user. Use Hager portal my devices account email address my.customer@email.com...

  • Page 17: Configure Wlan Integration Of The Device

    Wifi Logout and Handover The status LED of your coviva controller will turn on when a compliant wifi extension is installed. App version {{version}} Copyright Hager Group 2015 All rights reserved Settings Settings Wifi settings Settings Wifi settings Please enter the password of the Wifi...

  • Page 18: Add Netatmo Weather Station

    – Connected device – Security device – Comfort device (KNX radio actuators/receivers) The list of compatible products is available under hager.com/coviva. Add Netatmo weather station (Figure 15) The weather station (indoor module) has been commissioned and has been registered in the WLAN network of the customer.

  • Page 19: Edit/Remove Device

    – Remove device from a Group by deactivating the checkbox. – Device Add to Favorites or Remove from Favorites. – Switch to the delete mode via Remove Device. Then press Remove Device again and press the fct button on the device to be removed. hager.com Page 19/45 installer_07-2017...
  • Page 20 With the exception of Remove Device finally confirm all edit operations with Save or discard „ via Back. The display returns to the main menu and displays the changes. Press in the top right corner of the main menu to exit the edit mode again. „ hager.com Page 20/45 installer_07-2017...

  • Page 21: Combine Devices Into Groups

    Give the group a name via the keypad. „ The desired devices are added by activating the relevant checkbox of this group. „ Assign the devices to this group with Save or discard via „ The group is displayed in the main menu. hager.com Page 21/45 installer_07-2017...
  • Page 22 The combining of devices for heating control such as thermostats in a zone takes place in the same way as with a group and is initiated by selecting Add hot water zone. A zone is also displayed in the main menu under my groups. hager.com Page 22/45 installer_07-2017...

  • Page 23: Edit/Remove Group

    With the exception of Delete, finally confirm all edit operations with Save or discard „ via Back . The display returns to the main menu and displays the changes. Press in the top right corner of the main menu to exit the edit mode. „ hager.com Page 23/45 installer_07-2017...
  • Page 24 Ceiling light livi... Ceiling light living Wall light living... Wall light living ro... Standard lamp... Standard lamp_851... my groups my groups Scene TV Scene TV Eat-in kitchen Eat-in kitchen my covigrams my covigrams Figure 20: Edit/remove group hager.com Page 24/45 installer_07-2017...

  • Page 25: Create Covigram

    Select the type of trigger, in the example Event „ The button of the trigger type is highlighted in red. All devices of the project are listed with symbolic buttons and their name. The display can be swiped to the left and right. hager.com Page 25/45 installer_07-2017...
  • Page 26 Select the action by pressing the symbolic button, in the example Notification sent to every „ user. The button of the action is highlighted in red. The keypad and an input field for the message opens. hager.com Page 26/45 installer_07-2017...

  • Page 27: Example 2: Outdoor Lighting

    Add the remaining lights in the outdoor area via in the same way as the action being „ executed simultaneously - light Pavement, light Housewall, ..., select the switching state Switched on and finish with Save. hager.com Page 27/45 installer_07-2017...

  • Page 28: Example 3: All Off

    To do this, press the red „ The editing page Covigramm opens. The title line under is activated. Give the covigram a name via the keypad and terminate the entry with the Return button. „ hager.com Page 28/45 installer_07-2017...
  • Page 29 In the detailed view of the covigram under Then … ... is added. Define all other blinds in the house in the same way as action. „ Complete the covigram with Save. „ The covigram is displayed in the main menu. hager.com Page 29/45 installer_07-2017...

  • Page 30: Edit/Remove Covigram

    With the exception of Save, finally confirm all edit operations with Delete Covigram or dis- „ card via Back. The display returns to the main menu and displays the changes. Press in the top right corner of the main menu to exit the edit mode. „ hager.com Page 30/45 installer_07-2017...
  • Page 31 Ceiling light livi... Ceiling light living Wall light living r... Wall light living ro... Standard lamp... Standard lamp_85... my groups my groups Scene Tv Scene Tv Eat-in kitchen Eat-in kitchen my covigrams my covigrams Figure 25: Edit/remove covigram hager.com Page 31/45 installer_07-2017...

  • Page 32: Add Device To The Favourites List

    All OFF Groups None Alles OFF All OFF Remove from favorites my favorites Remove Device Ceiling light livi... my favorites my favorites Wall light living... Wall light living ro... Wall light living r... Figure 27: Remove favourites hager.com Page 32/45 installer_07-2017...

  • Page 33: Add User

    Z X C V B N M Z X C V B N M Z X C V B N M .?123 .?123 space return return .?123 space return .?123 space return .?123 space return Figure 28: Add user hager.com Page 33/45 installer_07-2017...

  • Page 34: Edit/Remove User

    If such a line is selected, a new page opens with the corresponding setting options (see Table 3). Confirm any changes to the settings with Save, discard via or return to the previous page „ without saving via . Finally, exit the settings via „ hager.com Page 34/45 installer_07-2017...
  • Page 35 Select WLAN network. vated networks Enter WLAN password. The app generally uses the language set in the relevant end device. This setting only defines the language for emails and push messages. Table 3: Settings and system information hager.com Page 35/45 installer_07-2017...
  • Page 36 Logout and Handover Wifi cov.0024C6F21834 The status LED of your coviva controller will turn on when a compliant wifi extension is installed. App Version {{version}} Copyright Hager Group 2015 All rights reserved Figure 29: Call up/change settings hager.com Page 36/45 installer_07-2017...

  • Page 37: Project Handover

    The administrator receives an e-mail containing information that Connected Home can now be used and the access data (e-mail address). The customer can now log in to the coviva app as administrator using the access data defined under myHager. hager.com Page 37/45 installer_07-2017...

  • Page 38: Operation

    Please add the email address of the Referent user. Use Hager portal account email address my devices my devices coviva Ceiling light living... Ceiling light living my.customer@email.com Devices Wall light living ro... Wall light living ro... Warning Repeat email Groups No Referent user created.
  • Page 39 Display in % (0%: OFF, 100 %: ON) Swipe to the left /to the right Blind control: Blind Living room move UP/DOWN Movement position of a blind/roller shutter Display in % (0 %: open, 100 %: closed) Slat position of a blind hager.com Page 39/45 installer_07-2017...
  • Page 40 The smartbox can be used in the local environment even without an Internet connection pro- vided that no applications have to be controlled, which only function online, such as remote access, notifications or the Netatmo display of measurement data. hager.com Page 40/45 installer_07-2017...

  • Page 41: Carrying Out A Reset

    Release RESET button (10) briefly and press once again to confirm the selection of the „ reset mode. Rapid blue flashing of the RCB LED display (1) confirms the successful reset. > 5 s Figure 31: Network reset hager.com Page 41/45 installer_07-2017...

  • Page 42: Carry Out A User Reset

    Permanent red light Hardware or software error Flashing yellow Technical warning, such as low-battery status of a device in the installation Flashing blue Update, a software update is being installed Table 6: RGB LED display (1) hager.com Page 42/45 installer_07-2017...

  • Page 43: Remote Maintenance

    Accept project  Authorise for remote maintenance  Carry out remote maintenance  Change settings    These rights apply for the entire project process and during remote maintenance Table 7: User profiles and rights hager.com Page 43/45 installer_07-2017...

  • Page 44: Technical Data

    Cat.5e, shielded - WLAN (with optional WLAN stick TKH180) 802.11 b/g/n USB ports per 5 V /max. 250 mA Only for connection of Hager devices. Do not use for charging! Protection class Degree of protection IP30 / IK04 Operating temperature 0 ...
  • Page 45 Applicable in all Europe and in Switzerland Hereby, hager Controls, declares that Coviva is in compliance with the essential requirements and other relevant provisions of directive 1999/5/CE (until June 2017) and directive2014/53/UE (from June 2017). The CE declaration of conformity can be consulted on the site hagergroup.com Correct Disposal of This product (Waste Electrical &...
