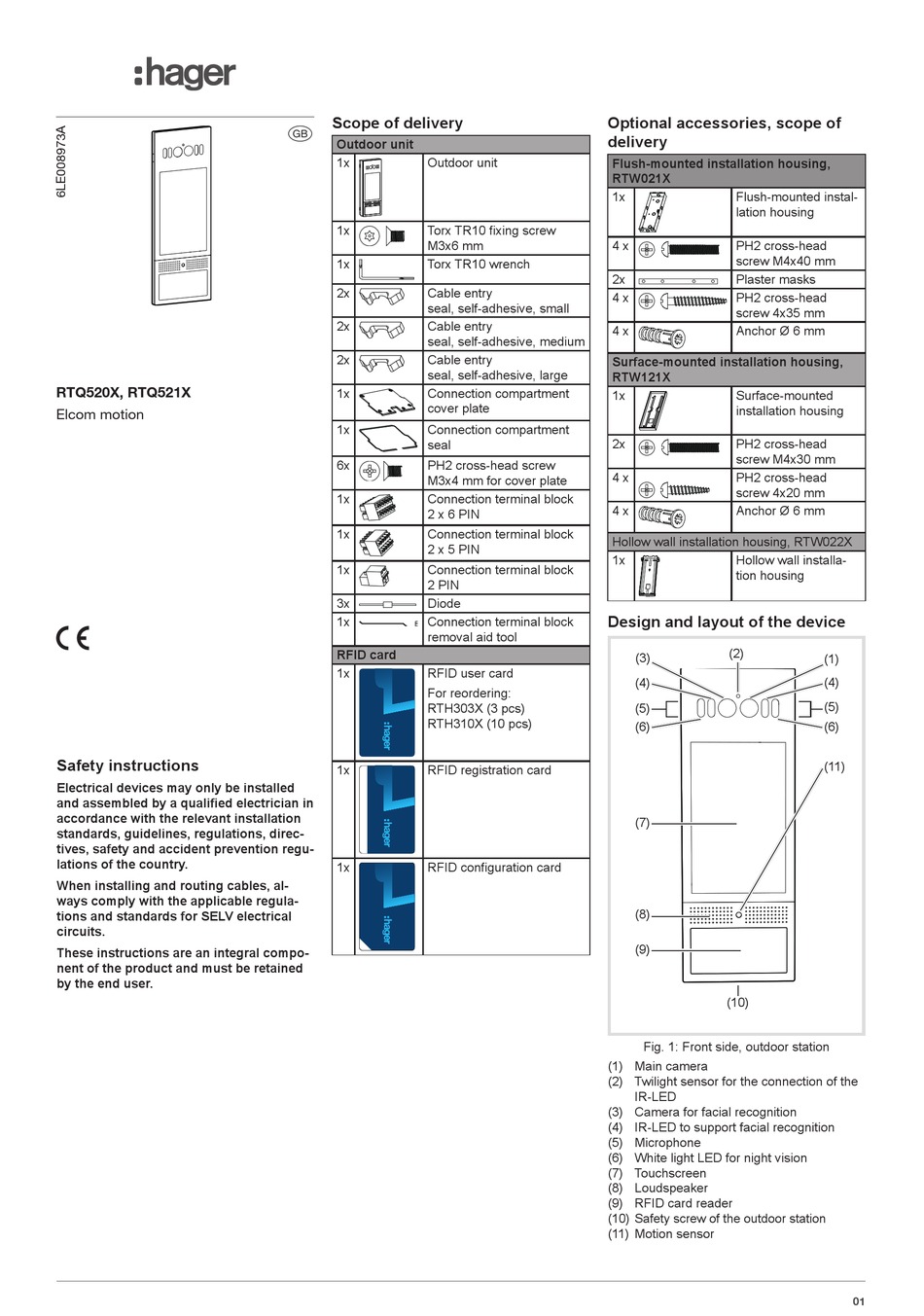

RTQ520X, RTQ521X
Elcom motion
Safety instructions
Electrical devices may only be installed
and assembled by a qualified electrician in
accordance with the relevant installation
standards, guidelines, regulations, direc-
tives, safety and accident prevention regu-
lations of the country.
When installing and routing cables, al-
ways comply with the applicable regula-
tions and standards for SELV electrical
circuits.
These instructions are an integral compo-
nent of the product and must be retained
by the end user.
Scope of delivery
z
Outdoor unit
1x
Outdoor unit
1x
Torx TR10 fixing screw
M3x6 mm
1x
Torx TR10 wrench
2x
Cable entry
seal, self-adhesive, small
2x
Cable entry
seal, self-adhesive, medium
2x
Cable entry
seal, self-adhesive, large
1x
Connection compartment
cover plate
1x
Connection compartment
seal
6x
PH2 cross-head screw
M3x4 mm for cover plate
1x
Connection terminal block
2 x 6 PIN
1x
Connection terminal block
2 x 5 PIN
1x
Connection terminal block
2 PIN
3x
Diode
1x
Connection terminal block
removal aid tool
RFID card
1x
RFID user card
For reordering:
RTH303X (3 pcs)
RTH310X (10 pcs)
1x
RFID registration card
1x
RFID configuration card
Optional accessories, scope of
delivery
Flush-mounted installation housing,
RTW021X
1x
Flush-mounted instal-
lation housing
4 x
PH2 cross-head
screw M4x40 mm
2x
Plaster masks
4 x
PH2 cross-head
screw 4x35 mm
4 x
Anchor Ø 6 mm
Surface-mounted installation housing,
RTW121X
1x
Surface-mounted
installation housing
2x
PH2 cross-head
screw M4x30 mm
4 x
PH2 cross-head
screw 4x20 mm
4 x
Anchor Ø 6 mm
Hollow wall installation housing, RTW022X
1x
Hollow wall installa-
tion housing
Design and layout of the device
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)

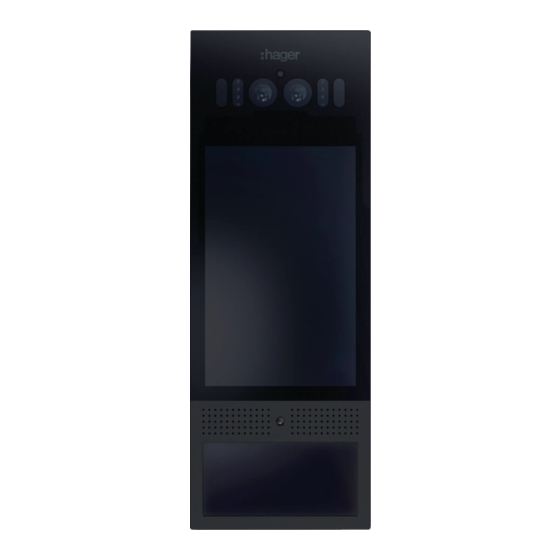

Fig. 1: Front side, outdoor station
(1) Main camera
(2) Twilight sensor for the connection of the
IR-LED
(3) Camera for facial recognition
(4) IR-LED to support facial recognition
(5) Microphone
(6) White light LED for night vision
(7) Touchscreen
(8) Loudspeaker
(9) RFID card reader
(10) Safety screw of the outdoor station
(11) Motion sensor
(1)
(4)
(5)
(6)
(11)
01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for hager RTQ520X
Summary of Contents for hager RTQ520X
- Page 1 4x35 mm Cable entry Anchor Ø 6 mm seal, self-adhesive, medium Cable entry Surface-mounted installation housing, seal, self-adhesive, large RTW121X RTQ520X, RTQ521X Connection compartment Surface-mounted cover plate installation housing Elcom motion Connection compartment PH2 cross-head seal...
-
Page 2: Bell Operation
- Keep it as free as possible from strong ble for modernisation and new construction. It outside light, such as lamps, streetlights, is operated via the Hager TJA470 / TJA510N garden lighting, which shine directly onto gateway on 2-wire intercom systems from the outdoor station. - Page 3 Biometric detection products may not be exactly 100% accurate and suitable for all scenarios and environments. For uses or scenarios requiring increased security, please set up a combination of the access authentications with RFID card or PIN code. Mounting of installation housing DANGER! ç...
- Page 4 - Attach the housing to the wall with screws Cut out a wall cut-out of exactly and dowels via the fi xing holes at the 348 x 120 mm using a suitable tool. (20) back. The cut-out must be accurate as the wall support of the installation housing is only 4 Mounting of the hollow-wall installation mm to the top and bottom.
- Page 5 (from Q3 2023, multiples planned - more information on installation, system setup and system limits can then be found at www.hager.com) - Number of residential units per system: Max. 255 with own bus address - Number of indoor stations: Max. 3 in paral-...
-
Page 6: Power Supply
Network transformer 12 V~ For operation with a switch without PoE+, the outdoor station and the gateway must each be connected with e Hager HT- 2x video distributor G911H power supply. The HTG911H ex- ternal power supply is only suitable for the... - Page 7 Connecting to the IP network RFID cards The RFID cards are contactless cards from ATTENTION! ç the MIFARE DESfi re range with a unique We recommend installing the serial number (UID), which is used as an system in a segmented LAN identifi er.
- Page 8 Camera settings For data protection reasons, up to 4 masks can be added to the camera picture to hide Settings parts of the image. Netzwork To insert and change the size, follow the General settings DHCP instructions on the display (Figure 35). Camera settings 192.168.1.104 IP address...
-
Page 9: Access Options
(Figure 41). Network cable length with PoE+ max. 25 m (depending on the audio and display The access options RFID card (RTQ520X , Select the user on the touch display: settings at the outdoor station) RTQ521X ) or facial recognition with power supply max. - Page 10 This product should not be mixed with other commercial waste for disposal. CE declaration of conformity The corresponding declaration of conformity is available for downloading at www.hager.de. T +49 6333 992 0 F +49 6333 992 7666 info@hager.com hager.com - 01.2023...
