Summary of Contents for hager TYAS608D

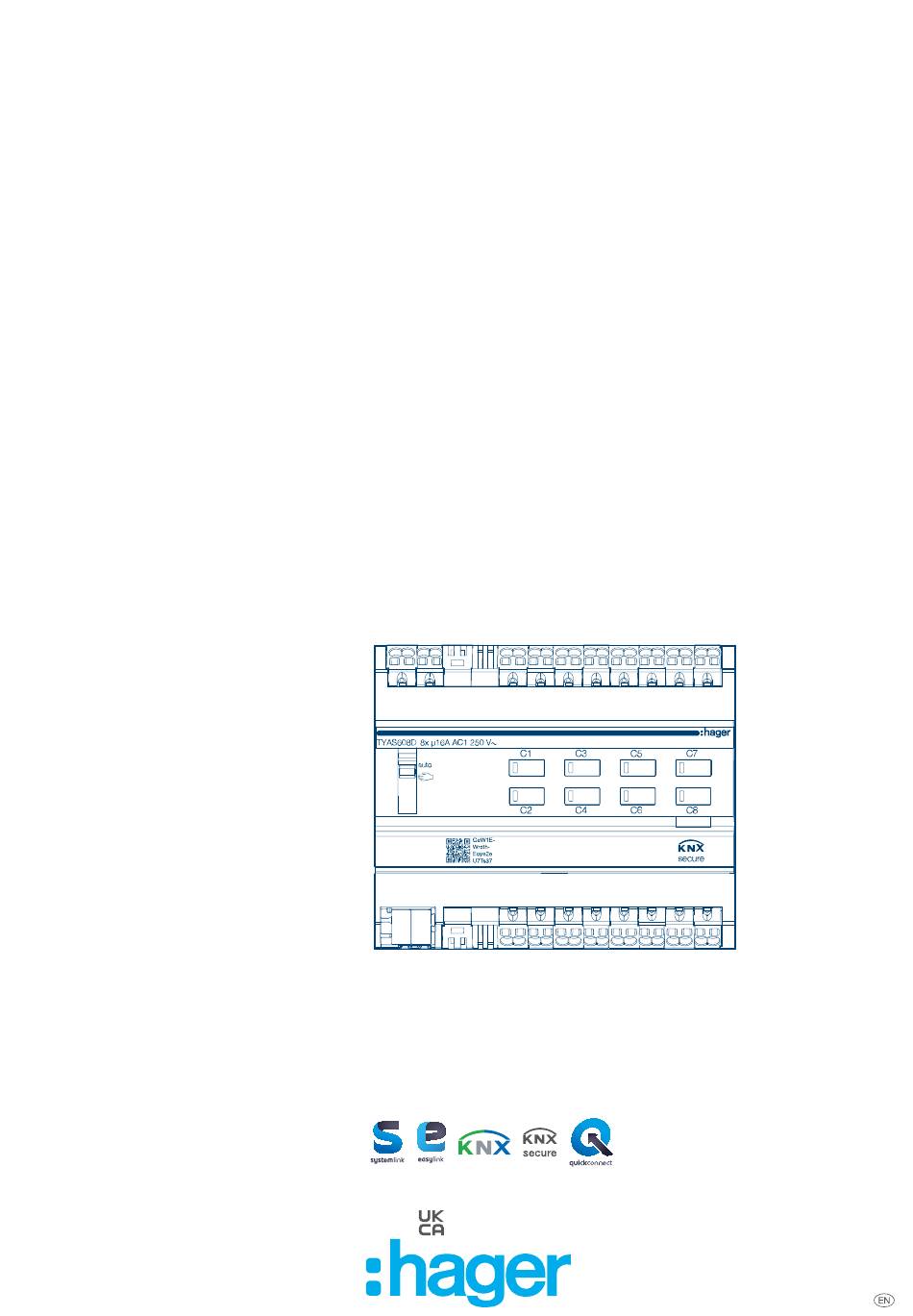

- Page 1 Operating and assembly instructions KNX building management system KNX switch- ing/blind actua- KNX Secure switching/blind actuator 8/4-gang, 16 A, C load TYAS608D...
-
Page 2: Table Of Contents
Table of contents Table of contents Introduction..............3 Safety instructions............5 Scope of delivery............6 Design and layout of the device........ 7 Function................ 8 Operation..............10 Information for qualified electricians.......12 Installation and electrical connection................12 Commissioning........................14 7.2.1 easylink commissioning....................... 16 7.2.2 Commissioning the device....................16 Dismantling..........................17 Appendix.............. -
Page 3: Introduction
KNX-certified Supports KNX Data Secure Installation terminal with ac- Compatibility with Compatibility with Hager tuation opening KNX S-mode (ETS) Easytool Suitable for use in Aus- Suitable for use in China Suitable for use in Morocco tralia and New Zealand Manufacturer’s information... - Page 4 Introduction Symbol Warning word Consequence of non-observance Danger Leads to serious injuries or death. Warning Can lead to serious injuries or death. Caution Can lead to minor injuries. Caution Can lead to device damage. Note Can lead to physical damage. Symbol Description Warning against electric shock.
-
Page 5: Safety Instructions
Safety instructions Safety instructions Electrical devices may only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, and safety and acci- dent prevention regulations of the country of installation. Danger due to electric shock. Disconnect mains supply before working on the device or load. Take into account all circuit protection devices that supply dangerous voltages to the device or load. -
Page 6: Scope Of Delivery
Scope of delivery Scope of delivery https://hgr.io/r/TYAS608D Fig. 1: Scope of delivery TYAS608D https://hgr.io/r/TYAS610D Fig. 2: Scope of delivery TYAS610D... -
Page 7: Design And Layout Of The Device
Design and layout of the device Design and layout of the device Fig. 3: Design and layout of the device Slide switch auto/ KNX bus connection terminal Connections of loads Labelling field with device cover Illuminated programming button Operation button for manual mode with status LED Connection, 230 V~ power supply... -
Page 8: Function
Function Function System information This device is a product of the KNX system and corresponds to the KNX guidelines. Detailed spe- cialised knowledge obtained from KNX training courses is required for understanding. The device is KNX Data Secure-compatible. KNX Data Secure can be configured in the ETS project and offers protection against manipulation in building automation. - Page 9 Function Functions in switch operation: – NO or NC operation – Feedback function – Central switching functions – Time switching functions: on delay, off delay, stair light switch with pre-warning function – Scene function – Operating hour meter Functions in roller shutter/blind operation: –...
-
Page 10: Operation
Operation Operation Switching manual mode on/off With the variants, control of the outputs is possible even without bus voltage when mains voltage is connected, e.g. for operation at building sites. The 230 V ~ power supply or bus voltage supply is present. Move the switch ((1)) to position Manual mode is switched on;... - Page 11 Operation Condition ((6)) Behaviour when briefly pressing the button ((6)) Output is in idle state, status LED of the button is off. Movement operation starts. Status LED of the button lights Output active, status LED of the button lights up. Movement operation stops, LED goes out.
-
Page 12: Information For Qualified Electricians
Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Disconnect all connection cables before working on the device and cover any live parts in the area! Caution Impermissible heating if load of the device is too high! - Page 13 Information for qualified electricians Installation and electrical connection Connecting the device The device is installed on the DIN rail in accordance with ISO 60715. Connect the load to the outputs of the device. Connect the connection cables for the power supply. 2,5 mm Fig.
-
Page 14: Commissioning
Information for qualified electricians Commissioning Fig. 7: Connecting the bus connection terminal Commissioning The device can be programmed in three ways: – KNX systemlink mode (standard ETS programming) see systemlink – loading the physical address and application software , page 14 –... - Page 15 Information for qualified electricians Commissioning Note! Use a high-resolution camera to scan the QR code. Fig. 10: Entering the QR code manually Fig. 8: Removing the de- Fig. 9: Scanning the QR code vice certificate from the de- vice (similar to illustration) Document all passwords and keep them in a safe place.
-
Page 16: Easylink Commissioning
Information for qualified electricians Commissioning 7.2.1 easylink commissioning easylink commissioning The function of the device is configuration-dependent. The configuration can also be performed using devices developed specially for simple setting and commissioning. This type of configuration is only possible with easylink system devices. easylink stands for easy, visu- ally supported commissioning. -
Page 17: Dismantling
Information for qualified electricians Dismantling Roller shutter/blind operation The roller shutter/blind is in the top final position. Move the slide switch (Fig. 3/1) to the manual position Press the manual operation button (Fig. 3/6) briefly (jog mode). The connected roller shutter/blind gradually moves down and the status LED lights up each time the button is pressed. - Page 18 Information for qualified electricians Dismantling Removing the bus connection terminal The bus voltage is switched off. Removing the bus connection terminal from the device. Fig. 14: Removing the bus connection terminal Dismantling the device The bus connection cable and the load cables have been disconnected. Removing the device from the DIN rail.
-
Page 19: Appendix
Appendix Technical data Appendix Technical data KNX Medium TP1-256 Commissioning mode systemlink, easylink KNX supply voltage 21 ... 32 V SELV BUS connection mode Connecting terminal μ16 A AC1 230/240 V ~ Breaking capacity Incandescent/halogen lamps 2300 W Conventional transformers 1600 VA Electronic transformers 1200 W... -
Page 20: Appendix Troubleshooting
Appendix Troubleshooting Maximum permissible current Max. 80 A KNX current consumption typ. 2 mA Dimensions 6 modules, 6 x 17.5 mm Troubleshooting Manual operation not possible. Switch (1) not set to Move the switch to Manual operation is not enabled (systemlink). Enable manual operation via application software. -
Page 21: Appendix Warranty
Appendix Warranty Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this device for environmentally safe disposal. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal. - Page 22 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2025-02...
