PRODUCT OVERVIEW

LED Descriptions

The top panel contains the following LEDs:
Power and Terminal Ready LEDs—The Power LED indicates that DC power is present and the TR LED blinks
when the unit is functioning normally.
Modem LEDs—Two modem LEDs indicate carrier detection and link status (for serial units only).
Prog. Signal LEDs—Three programmable signal LEDs can display the signal strength level of the wireless
connection if coded by the user.
LED Indicators
POWER Indicates presence of DC power when lit.
TR Terminal Ready. When lit, indicates connection to terminal emulation. When not lit,
indicates no terminal is present.
CD Carrier Detect. Indicates established data connection when lit.
PROG. SIGNAL These LEDs do not function by default and require the user to write code in order to
control them. If programmed, they display the strength of the cellular signal.
For more information on using GPIO to control the LEDs, refer to the AT Command Guide.

Side Panels

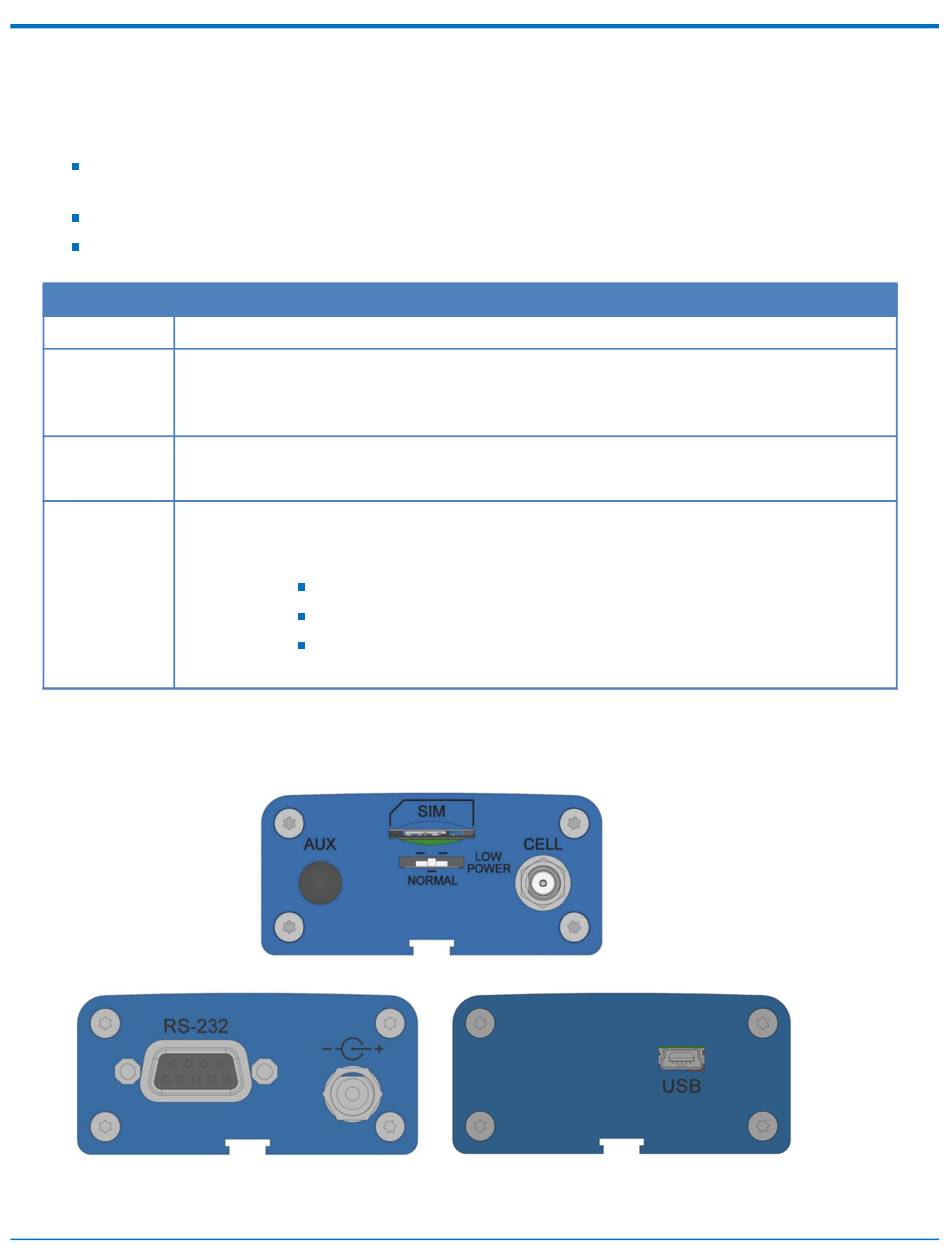

The device has connectors on either side. The figures that follow show the side panels.
8
(for serial only)
(for serial only)
Note: The three PROG. SIGNAL LEDs can be controlled as follows:
GPIO2: Controls the LED with a single bar above it
GPIO3: Controls the LED with two bars above it
GPIO4: Controls the LED with three bars above it
®
