F
Home BeON

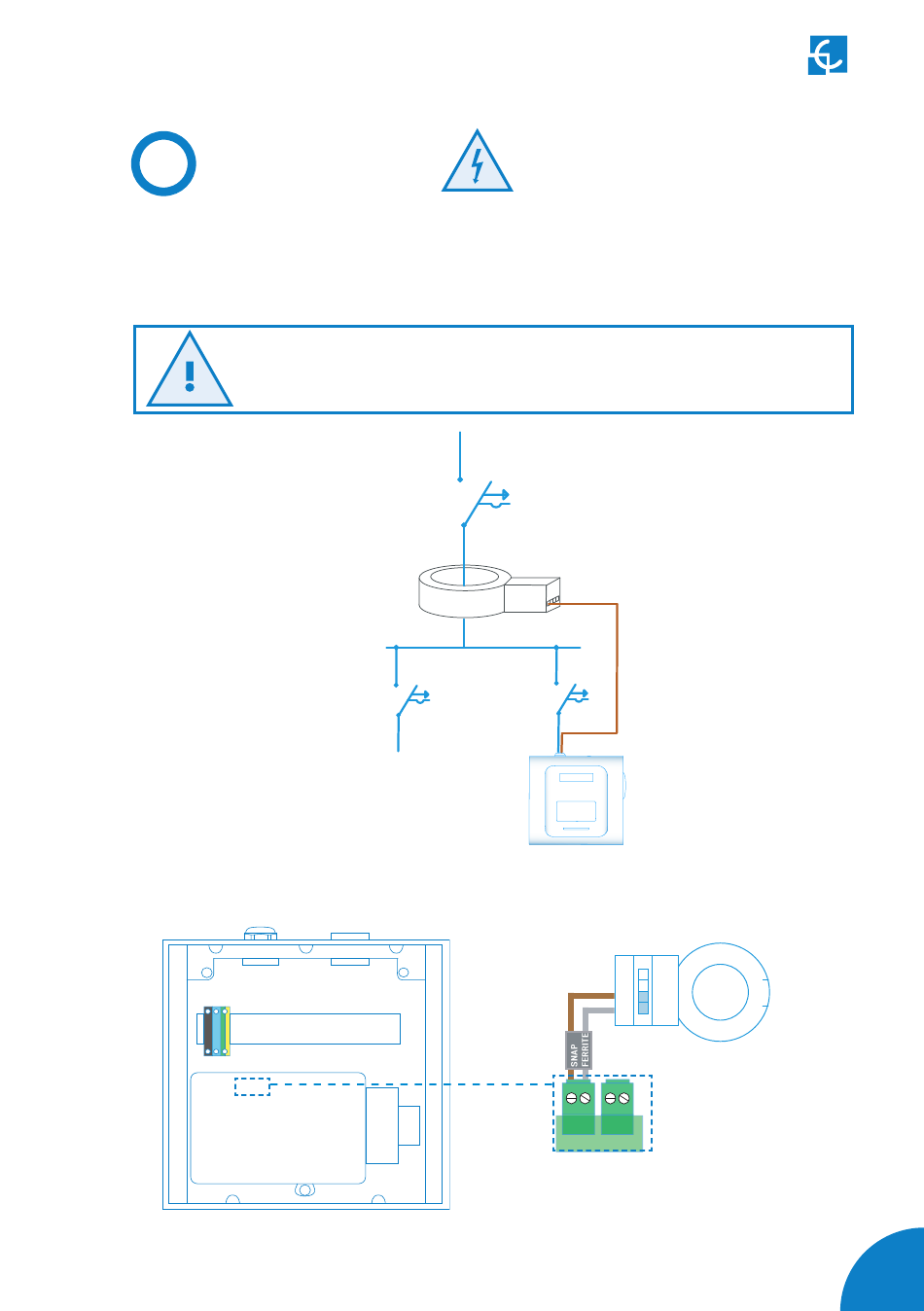

Home BeON is an optional device that optimises the Electric Vehicle (EV) Charge Point. Analysing
the total current consumption in residential facilities, Home BeON manages the remaining
current for the EV Charge Point, avoiding any tripping on the Main Circuit.
Home BeON is only available on single-phase Charge Points.
Home BeON
MCB
BeON is connected downstream of the main power switch and upstream of the main loads.
For further information, please refer to the eNext Instruction Manual and Home BeON manual.
MCB
Other
consumption
devices
MCCB
1S1
1S2
A(-)
(-)
2S1
2S2
(+)
B(+)
BOR1 BOR4
Signal cable has to do two
loops into the snap ferrite.
19
