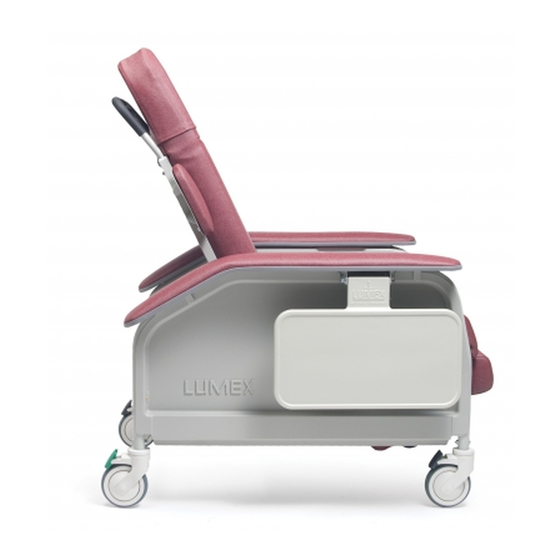

Series FR577RG Clinical Care Recliner
Series FR577RGH Clinical Care Recliner
with Heat and Massage
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX
FR577RG / FR577RGH CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
FR577RG-INS-LAB-RevH20
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Graham Field Lumex FR577RG Series
Summary of Contents for Graham Field Lumex FR577RG Series

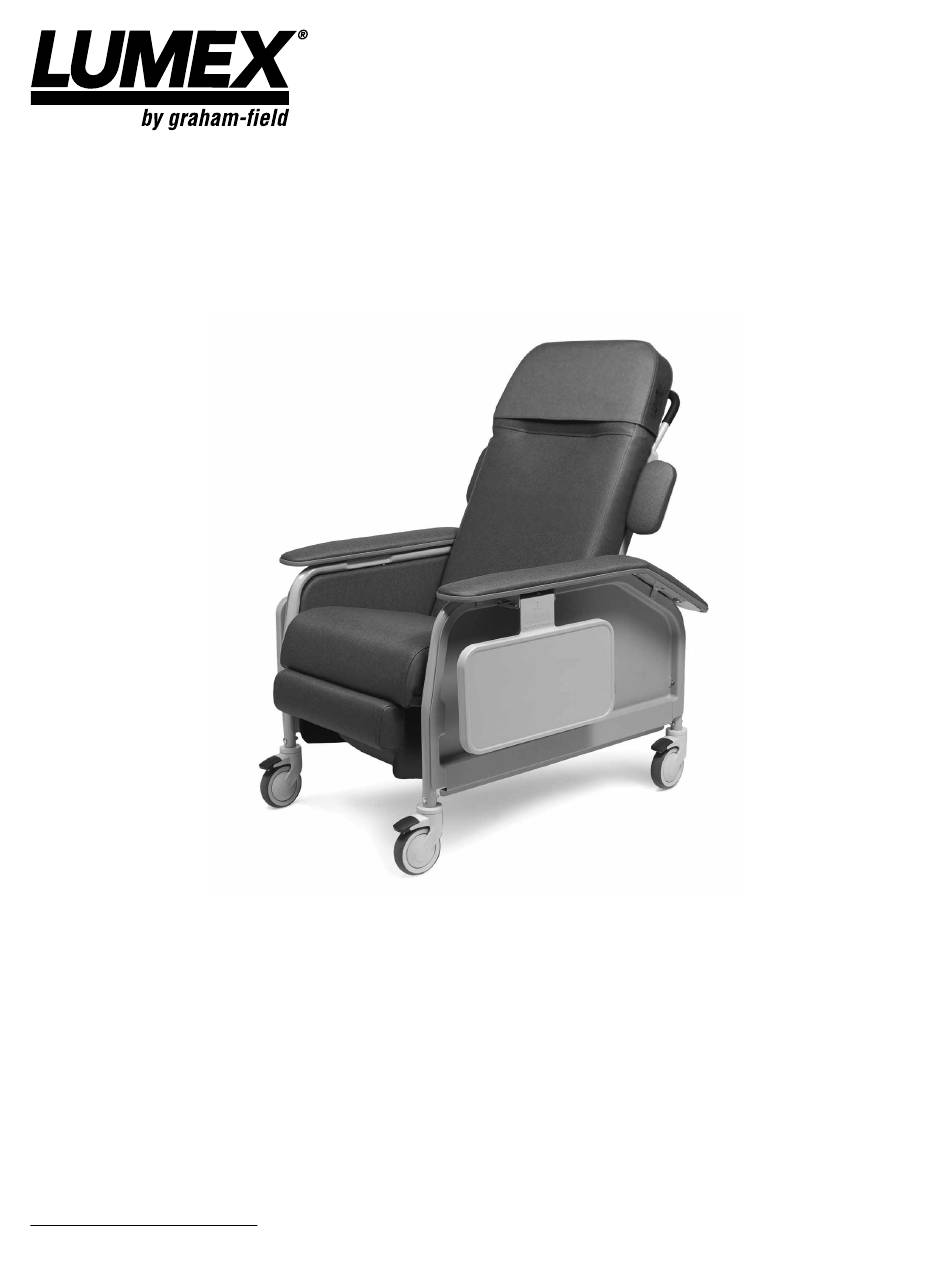

- Page 1 Series FR577RG Clinical Care Recliner Series FR577RGH Clinical Care Recliner with Heat and Massage Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR577RG / FR577RGH CLINICAL CARE RECLINER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ............3 WARNINGS ..............................3 ASSEMBLY ................................5 UNPACKING...............................5 PRODUCT DESCRIPTION ..........................5 UPHOLSTERED BACK ASSEMBLY......................5 OPERATION ................................8 TENTE CASTERS............................. 8 ® SIDE TABLE OPERATION ..........................8 TO RAISE TABLE ............................8 TO LOWER TABLE............................8 SIDE PANEL OPERATION ..........................9 TO REMOVE SIDE PANEL ..........................9 TO INSTALL SIDE PANEL...........................9... -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex Clinical Care Recliners Series FR577RG and FR577RGH. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, please call Graham-Field / Lumex Technical Support at 1.770.368.4700. - Page 4 WARNING: The electronics and actuator contain no serviceable components. If service is required, the unit must be returned to the factory for repair. DO NOT attempt to open the electronics or actuator or obtain local service; this will void the warranty and may result in damage to the unit. Consult your Graham-Field authorized distributor for further information.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back upholstered seat upholstered armrest padded push handle... - Page 6 3. Remove cardboard shipping retainers and tape from around gas spring cylinder. Rotate the gas spring hinge section so that it is perpendicular to the upholstered back, as shown at right. gas spring hinge Rotate HInge panel tabs side panel 4.
- Page 7 8. Raise the upholstered back to vertical position. Tuck the plastic skirt at rear of upholstered back behind cross brace of seat frame. Align the hinges at the bottom of the gas spring with the holes in the U-brackets on the seat frame cross brace.
-
Page 8: Operation
OPERATION WARNING: Disconnection of the Device: In case of emergency, always disconnect the device by removing the power cord plug from the power outlet. TENTE CASTERS ® WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE. -
Page 9: Side Panel Operation
SIDE PANEL OPERATION For easy cleaning and access to the side / underside of the recliner, Lumex Clinical Care Recliners feature easy-to-remove side panels. To Remove Side Panel panel tabs Depress the two push buttons side panel located on the lower sides of frame. -
Page 10: Recliner Operation
RECLINER OPERATION The Lumex Series FR577RG and FR577RGH Recliners feature three positions for patient comfort. The fourth position is a Trendelenburg (or Shock Position) that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner. -
Page 11: Articulating Headrest
Articulating Headrest The Series FR577RG and FR577RGH feature an articulating headrest for additional patient comfort. The upper section of the back features a self-contained headrest, shown at right. To reposition the headrest section, pull forward on the upper section of the back to increase the Articulating Headrest Move Headrest Forward angle of the headrest section. -
Page 12: Gas Spring Troubleshooting Guide
GAS SPRING TROUBLESHOOTING GUIDE Info: The gas spring has been pre-adjusted at factory. The gas spring on your recliner provides counterbalancing forces, and is self-locking for infinite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the padded push handle on the back of the recliner. When the lever is actuated it pulls on the cable which in turn pulls on a hinge, depressing a button at the end of the gas spring rod. -
Page 13: Lumex Fr577Rgh With Heat And Massage Feature
LUMEX FR577RGH WITH HEAT AND MASSAGE FEATURE INSTALLATION AND OPERATING GUIDE WARNING: Important! Read and understand these instructions before assembling or using the Lumex Specialty Healthcare Seating Heat and Massage Unit. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. -
Page 14: Heat And Massage Installation Instructions
Handheld Power Cord Pendant Control Module and Transformer Unit Showing All Connections Correctly Made 2. The Control Module and Transformer, shown above, are contained in a single unit mounted in the back compartment. The 8-foot power cord plugs into the wall AC outlet. Heat and Massage Installation Instructions During recliner shipment, the Heat and Massage cable connections are disconnected. - Page 15 2. Remove the left side table, shown at right, from the left side table ball lock pin recliner to prevent damage to it during setup: Withdraw the ball lock pin, shown at right, and set ball lock pin and table aside. 3. Place a protective cover or drop cloth on your workbench or floor to protect the recliner frame finish and upholstery.
-
Page 16: Heat And Massage Unit Operation Instructions For Gen 3 Unit
Heat and Massage Unit Operation Instructions for Gen 3 Unit 1. Plug the power cord into any grounded outlet. Heat and Massage Handheld Pendant 2. The Heat and Massage Unit is operated using the handheld pendant, shown above. Faceplate Selector Switch, Heat and Massage Handheld Pendant 3. - Page 17 4. Press the left switch to start the Massage function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 18: Heat And Massage Unit Troubleshooting Guide
Heat and Massage Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check brakes on casters. • Check and clean lock recline mechanism. •... -
Page 20: Cdc Recommendations
The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions. Results may vary under actual conditions. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. - Page 21 • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. •...
-
Page 22: Ce Certification (Series Fr577Rg Only)
CE CERTIFICATION (SERIES FR577RG ONLY) Info: CE Certification applies ONLY to Series FR577RG Clinical Care Recliner. CE Certification DOES NOT apply to Series FR577RGH Clinical Care Recliner with Heat and Massage. GF Health Products, Inc. One Graham-Field Way, Atlanta, Georgia 30340-3140 Tel: 1.770.368.4700 Web: www.grahamfield.com EC Authorized Representative... -
Page 23: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2012, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc.
