Graham Field LUMEX FR587WH Setup And Operation Instructions

Note: The most current version of these instructions can be found online at
Tools required: 1 / " hex wrench, Phillips screwdriver
4
WARNING: Important! Read and understand these instructions before assembling or us-
ing the Specialty Healthcare Seating Heat and Massage Unit. If you do not understand
any part of these warnings, cautions or instructions, contact a healthcare professional
for direction in the use of this product. If the Heat and Massage Unit is not properly as-
sembled, personal injury and damage to the Heat and Massage Unit could result.
WARNING: The recliner seat and back heating elements are wired to operate in series
only. Do not change the system wiring in any way.
WARNING: If components are damaged or missing, contact your dealer immediately. DO
NOT use substitute parts. Use only Lumex replacement parts. The use of non-Lumex re-
placement parts could cause personal injury, property damage, and void the warranty.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper assembly or use of this product.
Note: Products Affected: FR577RGH and FR587WH. These instructions are for Heat and Mas-
sage Unit setup and operation only; please see the Operating Instructions that came with
your recliner for recliner assembly and operation instructions.

Description

The Lumex Specialty Healthcare Seating Heat and Massage Unit is a low-voltage (12V) Heat and Mas-
sage Unit, controllable by the user and / or caregiver, designed to enhance the comfort of the patient /
resident during the use of Lumex Clinical Care Recliners. The Heat and Massage Unit offers three levels
of seat and back heat, as well as a gentle or firm massage function for just lower back or both lower and
upper back.

Connection

The Heat and Massage Unit comes pre-installed
in Lumex Clinical Care Recliners with the Heat
and Massage Option (FR577RGH and FR587WH).
During recliner shipment, the Heat and Selector
Switch connections are disconnected; several
easy connections are all that is required to make
the unit functional.

Main Components

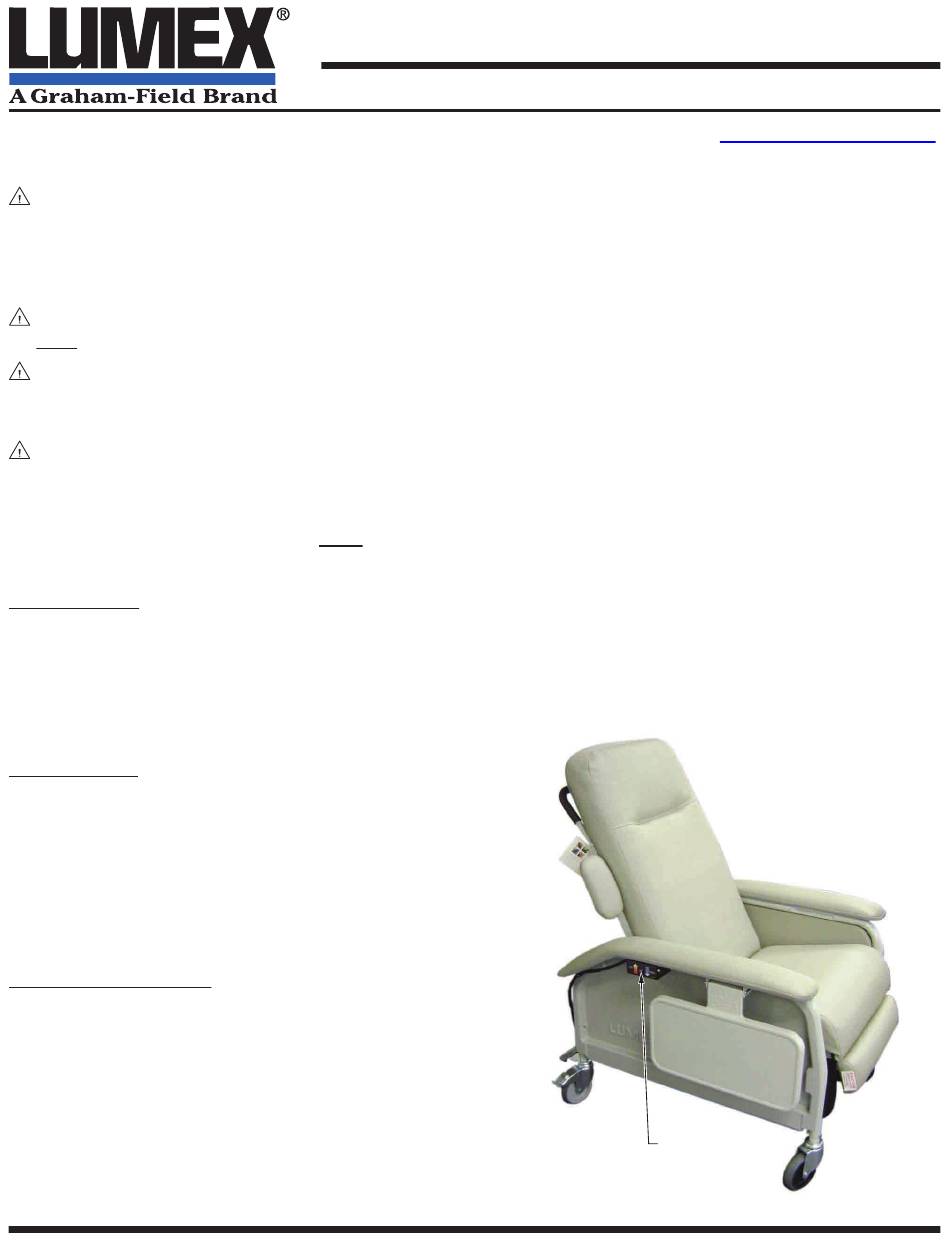

1. The Selector Switch (shown at right), in the
Switch Box mounted on the right side of the
recliner underneath the armrest, is a single
multi-position switch that activates both the
Heat and Massage functions.
FR577RGH-INS-LAB-RevA10
FR577RGH / FR587WH SPECIALTY HEALTHCARE SEATING HEAT
AND MASSAGE UNIT: SETUP AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com
Selector Switch
Selector Switch (mounted
underneath right armrest)
1
