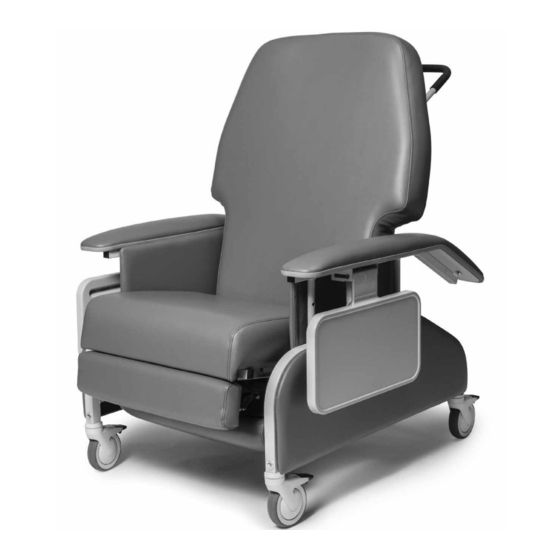

Deluxe clinical care recliner, extra wide with drop arm, deluxe clinical care recliner, extra wide with drop arm, with heat and massage
Hide thumbs Also See for LUMEX FR587WD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Series FR587WD Deluxe Clinical Care Recliner,
Extra Wide with Drop Arm
Series FR587WDH Deluxe Clinical Care Recliner,
Extra Wide with Drop Arm, with Heat and Massage
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR587WD /
FR587WDH DELUXE CLINICAL CARE RECLINER, EXTRA-WIDE WITH DROP ARM.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
FR587WD-INS-LAB-RevC20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMEX FR587WD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graham Field LUMEX FR587WD Series

Summary of Contents for Graham Field LUMEX FR587WD Series

  • Page 1 Series FR587WD Deluxe Clinical Care Recliner, Extra Wide with Drop Arm Series FR587WDH Deluxe Clinical Care Recliner, Extra Wide with Drop Arm, with Heat and Massage Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR587WD / FR587WDH DELUXE CLINICAL CARE RECLINER, EXTRA-WIDE WITH DROP ARM.

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ............3 WARNINGS ..............................3 ASSEMBLY ................................5 UNPACKING...............................5 PRODUCT DESCRIPTION ..........................5 UPHOLSTERED BACK ASSEMBLY......................5 OPERATION ................................8 TENTE CASTERS............................. 8 ® LOCKING CASTERS ...........................8 DIRECTIONAL (SWIVEL) CASTER ......................8 SIDE TABLE OPERATION ..........................8 RAISE TABLE ..............................8 LOWER TABLE ............................8 SIDE PANEL OPERATION ..........................9...

  • Page 3: Introduction

    INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex Clinical Care Recliners Series FR587WD and FR587WDH. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, call Graham-Field / Lumex Technical Support at 1.770.368.4700.
  • Page 4 WARNING: The electronics and / or actuator contain no serviceable components. If service is required, the unit must be returned to the factory for repair. DO NOT attempt to open the electronics or actuator or obtain local service; this will void the warranty and may result in damage to the unit.

  • Page 5: Assembly

    ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back upholstered seat padded push handle upholstered armrest gas spring...
  • Page 6 3. Remove cardboard shipping retainers and tape from around gas spring cylinders. Rotate the hinge section on the gas spring so that it is perpendicular to the upholstered back, as shown at right. gas spring hinge Rotate HInge 4. Remove side panel: grasp upholstered side panel from both sides.
  • Page 7 8. Raise the upholstered back to vertical position. Tuck the plastic skirt at rear of upholstered back behind seat frame crossbrace. Align the hinges at the bottom of the gas springs with the holes in the U-brackets on the seat frame crossbrace.

  • Page 8: Operation

    OPERATION TENTE CASTERS ® WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE. Specifically designed for use in healthcare environments, the new casters are easier to clean, easier to move, and tolerate a wide array of cleaners and chemicals.

  • Page 9: Side Panel Operation

    SIDE PANEL OPERATION For easy cleaning and access to the side and underside of the recliner, Lumex Clinical Care Recliners feature easy-to-remove side panels. Remove Side Panel Grasp upholstered side panel from both sides. Pull sharply out from recliner until locking clips release side panel from frame.

  • Page 10: Third Position (Second Recline Position)

    First Recline Position (TV Position) Third Position (Second Recline Position) The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. To Achieve Third Position / Second Recline Position: •...

  • Page 11: Drop Arm Operation

    DROP ARM OPERATION The Lumex Deluxe Clinical Care Recliner Extra Wide with Drop Arm (Series FR587WD and FR87WDH) features self-storing drop arms that are simple for the caregiver to actuate. By lowering the arm, a safer and easier lateral transfer for the resident and caregiver can be achieved.

  • Page 12: Gas Spring Troubleshooting Guide

    GAS SPRING TROUBLESHOOTING GUIDE Info: gas springs have been pre-adjusted at factory The gas spring on your recliner provides counterbalancing forces, and is self-locking for infinite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the padded push handle on the back of the recliner. When the lever is actuated it pulls on the cable which in turn pulls on a hinge, depressing a button at the end of the gas spring rod.

  • Page 13: Heat And Massage Feature

    HEAT AND MASSAGE FEATURE INSTALLATION AND OPERATING GUIDE WARNING: Important! Read and understand these instructions before assembling or using the Lumex Specialty Healthcare Seating Heat and Massage Unit. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product.

  • Page 14: Heat And Massage Installation Instructions

    Handheld Power Cord Pendant Control Module and Transformer Unit Showing All Connections Correctly Made 2. The Control Module and Transformer, shown above, are contained in a single unit mounted in the back compartment. The 8-foot power cord plugs into the wall AC outlet. Heat and Massage Installation Instructions During recliner shipment, the Heat and Massage cable connections are disconnected.
  • Page 15 2. Remove the left side table, shown at right, from the left side table ball lock pin recliner to prevent damage to it during setup: Withdraw the ball lock pin, shown at right, and set ball lock pin and table aside. 3. Place a protective cover or drop cloth on your workbench or floor to protect the recliner frame finish and upholstery.

  • Page 16: Heat And Massage Unit Operation Instructions For Gen 3 Unit

    Heat and Massage Unit Operation Instructions for Gen 3 Unit 1. Plug the power cord into any grounded outlet. Heat and Massage Handheld Pendant 2. The Heat and Massage Unit is operated using the handheld pendant, shown above. Faceplate Selector Switch, Heat and Massage Handheld Pendant 3.
  • Page 17 4. Press the left switch to start the Massage function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.

  • Page 18: Heat And Massage Unit Troubleshooting Guide

    Heat and Massage Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison.

  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check brakes on casters. • Check and clean lock recline mechanism. •...

  • Page 20: Cdc Recommendations

    The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions. Results may vary under actual conditions. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents.
  • Page 21 • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. •...

  • Page 22: Ce Certification (Series Fr587Wd Only)

    CE CERTIFICATION (SERIES FR587WD ONLY) Info: CE Certification applies ONLY to Series FR587WD Deluxe Clinical Care Recliner, Extra-Wide with Drop Arm. CE Certification DOES NOT apply to Series FR587WDH Deluxe Clinical Care Recliner, Extra-Wide with Drop Arm, with Heat and Massage. GF Health Products, Inc.

  • Page 23: Limited Warranty

    LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
  • Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2012, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc.
