- Page 1 Rackmount LCD Console (8 Port /16 Port) User Manual Print date：2018/12 Version： V1.0...
-
Page 2: Product Features

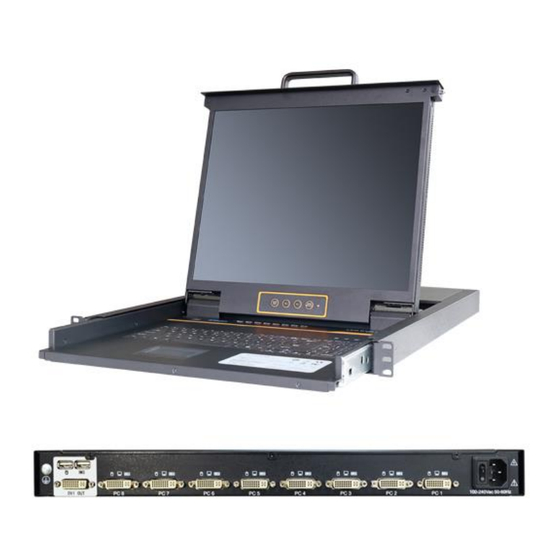

8 Port /16 Port User Manual Overview Product Description The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with one monitor, keyboard and mouse, It is easy and fast to install the KVM console, you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. -
Page 3: Installation Instruction
8 Port /16 Port User Manual Installation instruction Make sure the rack mounting KVM switch has been connected to the ground (① in the diagram ) Connect KVM switch with the computer according to( ②in the diagram) Connect power cable to KVM port as shown in(③in the diagram) Turn on the power, the KVM start to work after power supply(④in the diagram) Note：1）Connect monitor, USB keyboard and mouse to Console port to connect another console.（⑤... -
Page 4: Opening The Console
8 Port /16 Port User Manual Opening the console Release the release catch; 2-1.1 unlocking *Note：The release lock can only do horizontal locking, it can’t bear any load. Pull the LCD panel all the way out until it clicks into place. ... -
Page 5: Led Instructions
8 Port /16 Port User Manual LED Instructions 3-1.1 front view Components Function 1-8 or Switching freely from port 1 to port 8 /16 1-16 1）An online LED light(green) indicates that the KVM has connected to its corresponding computer and power on. Port Selection 2 ）... -
Page 6: Osd Operation
8 Port /16 Port User Manual OSD Operation Double click the right buttons of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys, find more details in OSD function instructions. Headings Explanation level number-port number... - Page 7 8 Port /16 Port User Manual OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey” submenu . Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 2.Select the“ 【Ctrl】 【Ctrl】 + 【KVM Hotkey】 “ and press 【 Enter】 , and then the 【Ctrl】 hotkey is availablein this hotkey mode, themouse hotkey can't enter the OSD menu Invoke hotkey：double click 【L_Ctrl】...
- Page 8 8 Port /16 Port User Manual Appendix Specifications (19″) Model LD1908 LD1916 Direct Computer connections Keyboard, Port emulation PS/2, USB mouse LCD model SXGA TFT 19″ View area Optimum 1280×1024@60Hz resolution LCD monitor Display color 16.7 M 250cd/m² （ T y p ）...
