- Page 1 1Port 17” DVI KVM Console User Manual Print date: 2024/ 05 Version: V2.0...

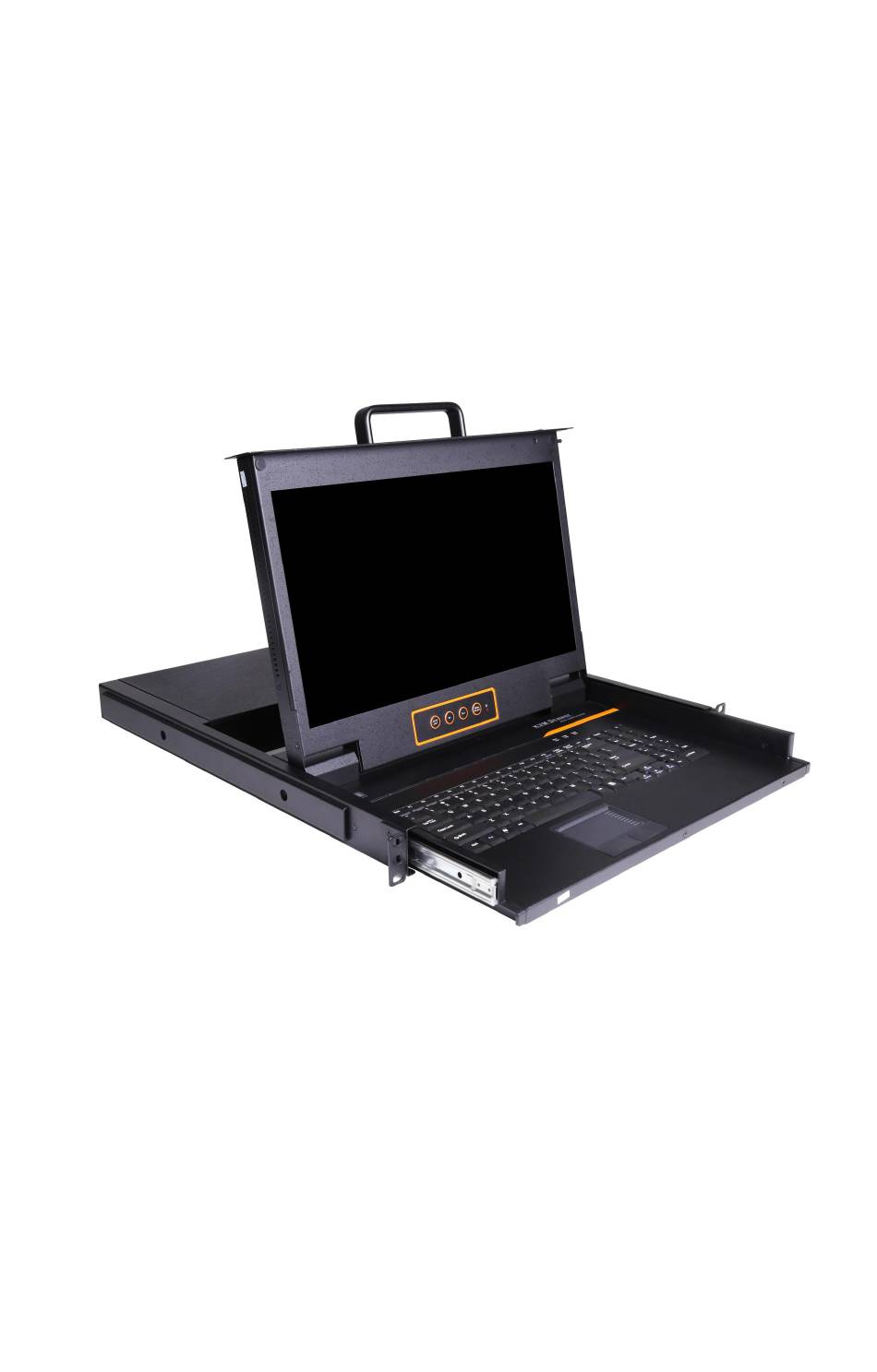

- Page 2 LD1701 User Manual Brief Description Single port console integrates the monitor, keyboard and mouse in a 1U device; it fits for installed in a standard 19” rack. It can connect one computer to control the monitor, keyboard and mouse. Features 3 in 1 LED console integrates the monitor, keyboard and mouse.
- Page 3 LD1701 User Manual Front View Figure 1-2 front view 1. LED Monitor 2. Rear bracket Slot 3. OSD Controls 4. Front bracket 5. Keyboard 6. Touch pad 7. Handle 8. Lock latch 9. Display panel - 2 -...
- Page 4 LD1701 User Manual Back View 100-240Vac 50-60Hz 1-3 back view Power input (AC or DC) Power Switch Ground connecting screw KVM port Cable Connection 1-4 cable connection To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length as shown in above table.
- Page 5 LD1701 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 510-850mm in a standard 19” rack. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back,...
- Page 6 LD1701 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. Figure 2-3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load.
-
Page 7: Menu Select
LD1701 User Manual OSD Controls Figure 3-1 OSD controls Buttons Functions Press this button invokes the menu MENU SELECT function and brings up the main menu. Press EXIT exits the current menu and returns to the previous menu or presses EXIT/AUTO this button exits the LED OSD. - Page 8 LD1701 User Manual Specifications Model LD1701 Direct Computer Connections Port Keyboard, mouse emulation LED model FHD TFT View area 17.3" Optimum resolution 1920×1080@60Hz LED monitor Display color 16.7 M Brightness 250cd/m² (T y p) Contrast ratio 800: 1(T y p) Pixel pitch(mm) 0.1989(H) ×...
