Summary of Contents for KinAn LH1801

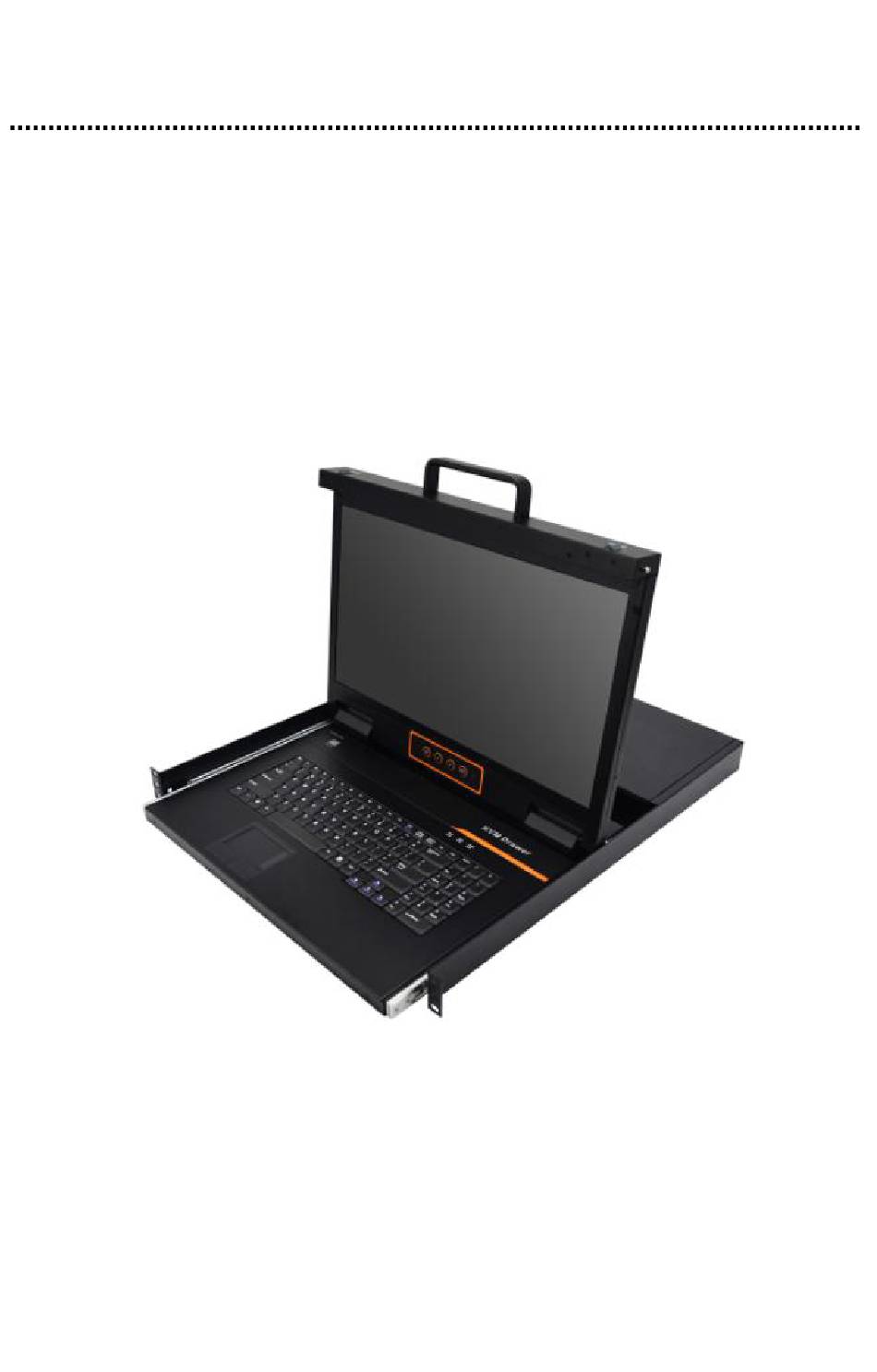

- Page 1 Rackmount HDMI LCD Console (LH1801) User Manual Print Date: 2021/10 Version: V1.1...

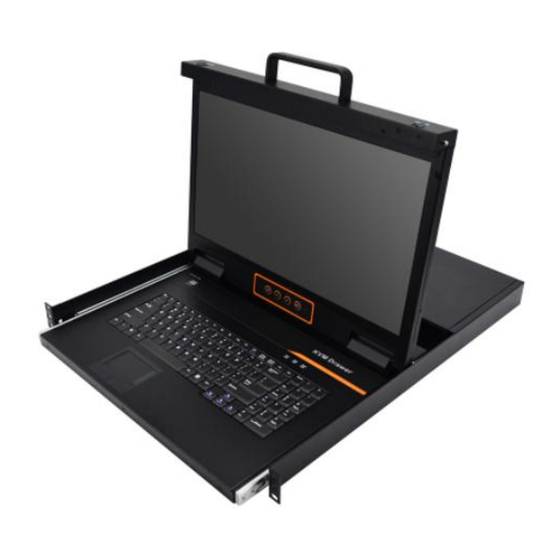

- Page 2 LH1801 User Manual Description The rack mount 18.5” HDMI LCD console integrates the video, keyboard and mouse in a 1U rack space; it is fit for installing in a standard 19” server rack. It can control one computer from a complete keyboard, video and mouse control unit.
-
Page 3: Front View
LH1801 User Manual Front View Figure 1-1.2 front view LCD Display Rear Bracket Slot OSD Controls Front Bracket Keyboard Touchpad Handle Lock Latch Display Panel - 2 -... - Page 4 LH1801 User Manual Rear View -48V -36V~-72V DC IN HDMI IN 100V-240Vac/50~60Hz HDMI IN Figure 1-1.3 Rear View Power Input Socket (AC) Power Switch Grounding Screw USB Port: keyboard/mouse signal input HDMI Port: video signal input Cable Connection Figure 1-1.4 cable connection To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables.
- Page 5 LH1801 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of in a standard 19” rack. For other mounting distance (620-720mm), the rear brackets need to be customized accordingly With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back,...
- Page 6 LH1801 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. UNLOCK UNLOCK UNLOCK UNLOCK Figure 2-3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load.
-
Page 7: Menu Select
LH1801 User Manual Figure 2-5 unlocking the slide rail LCD OSD Configuration Figure 3-1 OSD controls Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press EXIT exits the current menu and returns to... -
Page 8: Specifications
LH1801 User Manual Specifications Model LH1801 Computer Connections Port Keyboard, mouse PS/2, USB emulation LCD model FHD TFT View area 18.47 " 1920×1080@60Hz Optimum resolution Display color 16.7 M monitor Brightness 250cd/m² (T y p) Contrast ratio 1000: 1(T y p) Pixel pitch(mm) 0.213(H) ×...
