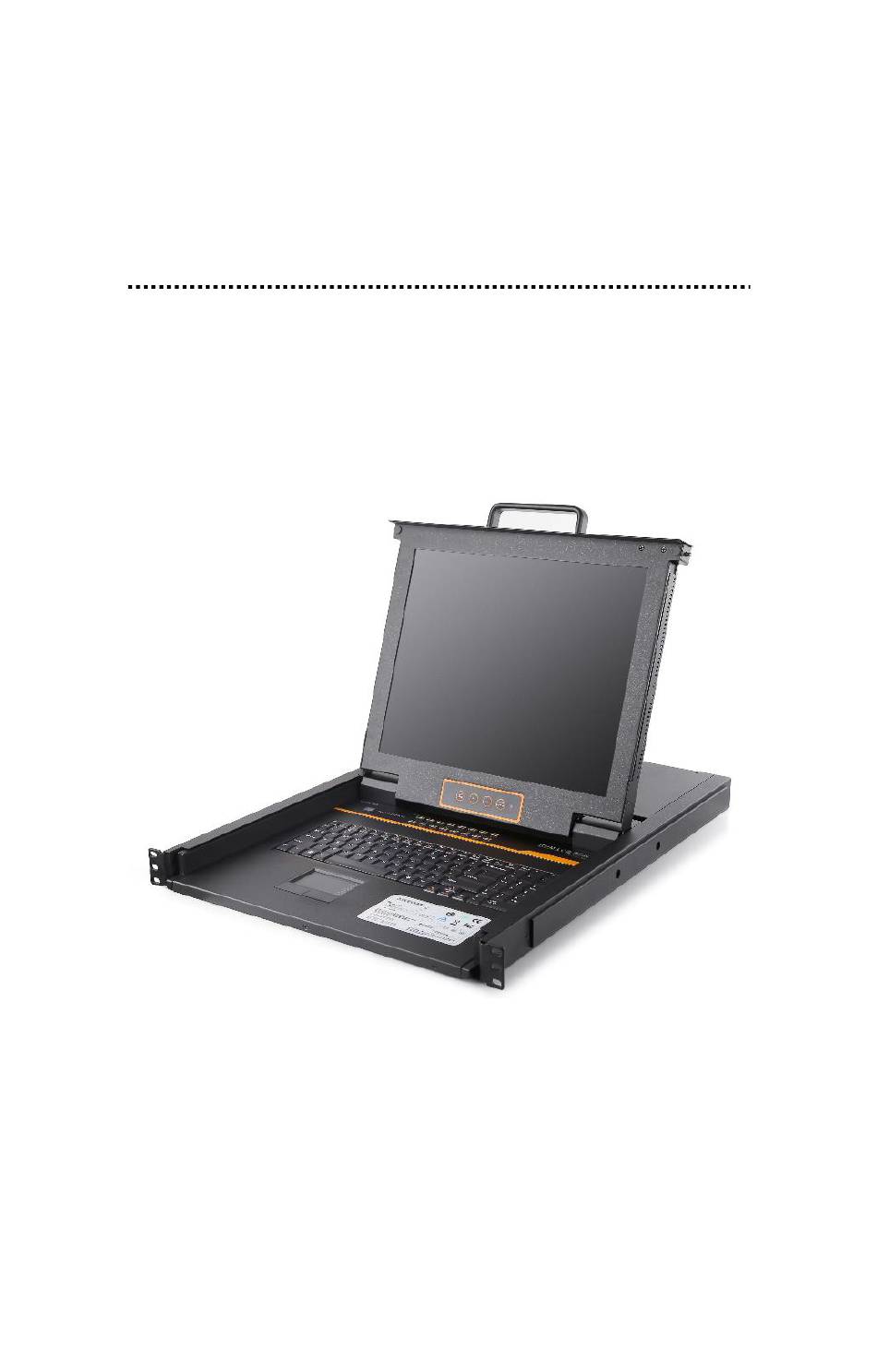

- Page 1 Rackmount LCD Console (8 Port /16 Port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2024/01 Version： V2.2...
-
Page 2: Table Of Contents
8 Port /16 Port User Manual Contents Overview ........................... 2 Product Description ....................2 Product Features....................2 Front view....................... 3 Structure and Size(17″)..................4 Structure and Size(19″) ..................4 Back view........................ 5 Hardware Installation ....................... 6 Rack Mounting ......................6 Installation instruction....................7 Opening the console ......................... -
Page 3: Overview
8 Port /16 Port User Manual Overview Product Description The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer. -
Page 4: Front View
8 Port /16 Port User Manual Front view 1-1.1 front view 1．LED Module 6．Touchpad 2．Rear Bracket Slot 7．Handle 3．LED OSD Controls 8．Release Catch 4．Front Bracket 9．Display panel 10. Switch LED 5．Keyboard - 3 -... -
Page 5: Structure And Size(17")
8 Port /16 Port User Manual Structure and Size(17″) 1-1.2 Structure and Size(19″) 1-1.3 - 4 -... -
Page 6: Back View
8 Port /16 Port User Manual Back view 1-1.4 Ground connection screw DVI Output KVM port Power input (AC) USB port - 5 -... -
Page 7: Hardware Installation
8 Port /16 Port User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 600-850mm (17〞), 716-825mm (19〞) in a standard 19”rack. For other mounting distance, the rear brackets need to be customized accordingly With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to the rack.( see below installation drawing) -
Page 8: Installation Instruction
8 Port /16 Port User Manual Installation instruction Make sure the rack mounting KVM switch has been connected to the ground (① in the diagram) Connect power cable to KVM port as shown in ②in the diagram Turn on the power, the KVM start to work after power supply(③in the diagram) Connect KVM switch with the computer according to ④in the diagram Note: Connect monitor, USB keyboard and mouse to Console port to connect another console (⑤... -
Page 9: Opening The Console
8 Port /16 Port User Manual Opening the console Release the release catch; 2-2.1 unlocking *Note ： The release lock can only do horizontal locking, it can’t bear any load. Pull the LED panel all the way out until it clicks into place. ... -
Page 10: Led Instructions
8 Port /16 Port User Manual Closing the console Close the LED display panel and the power automatically shut down. Push the release catch in the direction of the arrow, push the LED panel all the way in until it automatically lock up. -
Page 11: Led Osd Configuration
8 Port /16 Port User Manual LED OSD Configuration The LED OSD allows you to set up and configure the LED display. Buttons Functions Press this button invokes the menu function and brings up the MENU SELECT main menu. Press this button exits the current menu and return to the previous menu or press this button exits the LED OSD. -
Page 12: Osd Operation
8 Port /16 Port User Manual OSD Operation Double click the right buttons of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys, find more details in OSD function instructions. Headings Explanation port number... -
Page 13: Osd Functions
8 Port /16 Port User Manual OSD Functions Menus Keys Submenu/explanation Set User login: account and password Set accessible: Set access permissions BRC Mode: monitor multiple computers at the same time Load Default: reset the menu to the original factory default settings All: Lists all the ports on the installation Power On: lists only powered on ports that have... -
Page 14: F1-Adm
8 Port /16 Port User Manual F1-ADM Menu overview Operating instructions 1）Press【F1】or 【←】【→】enters the F1 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits ADM menu. 4）Press【Esc】cancels the operation and exits ADM menu. Menu explanation ... - Page 15 8 Port /16 Port User Manual 2. Set accessible—press 【 Enter 】 and select Set Access Permission, then below menu appears: (diagram 4-1.3): 4-1.3 Menu Explanation Full access function to the station and can do any FULL operation to the ports View only function, you can only view the port but you VIEW can’t operate it if set this function.
- Page 16 8 Port /16 Port User Manual 3.BRC Mode - Press【Enter】 to enter the BRC mode. Enter the main menu, press 【F7】to add or remove a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column.(see below diagrams). While BRC mode is in effect, we can operate multiple computer ports simultaneously, but the mouse is not function normally.
-
Page 17: F2-Scan
8 Port /16 Port User Manual F2-Scan Menu overview Operating instructions 1）Press【F2】or 【←】【→】enters the F2 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Scan menu. 4）Press【Esc】cancels the operation and exits SCAN menu. Menu explanation ... -
Page 18: F3-Set
8 Port /16 Port User Manual F3-Set Menu overview Operating instructions 1）Press【F3】or 【←】【→】enters the F3 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3） Press 【 Enter】 selects and exits Set menu. 4）Press【Esc】cancels the operation and exits Set menu. - Page 19 8 Port /16 Port User Manual OSD Hotkey Operation Operating instruction Press【F3】 and move the highlight bar with【↓】 to select “OSDHotkey”submenu . Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 Select the“【Ctrl】 【Ctrl】+【KVM Hotkey】“ and press【Enter】, and then the【Ctrl】 hotkey is availablein this hotkey mode, themouse hotkey can't enter the OSD menu Invoke hotkey：double click 【L_Ctrl】...
-
Page 20: F4-Tool
8 Port /16 Port User Manual F4-Tool Menu overview Operating instructions 1）Press【F4】or 【←】 【→】enters the F4 submenus. 2） Press 【↑】 【↓】 moves the highlight bar to select the submenu. 3） Press 【 Enter】 selects and exits Tool menu. 4） Press 【 Esc】 cancels the operation and exits Tool menu. -
Page 21: F6-Edit Port Names
8 Port /16 Port User Manual F6-Edit port names Select the port with【↑】【↓】 key; Press F6 and key in the new name or modify the old one, then press Enter to save the name and exit editing. Press 【 Esc 】 to cancel and exit the ... -
Page 22: Appendix
8 Port /16 Port User Manual Appendix Specifications(17″) Function LD2708 LD2716 Direct Computer connections Port emulation Keyboard, mouse LED model SXGA TFT View area 17 " Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m²（ T y p ）... -
Page 23: Specifications(19")
8 Port /16 Port User Manual Specifications(19″) Function LD1908 LD1916 Direct Computer connections Port emulation Keyboard, mouse LED model SXGA TFT View area 19″ Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m²（ T y p ） Contrast ratio 1000 : 1 （... -
Page 24: Faq
8 Port /16 Port User Manual 1. The KVM console do not work when I connect and use the console for the first time. Solutions: Please re-connect the KVM console according to below steps: 1) Disconnect all the signal and power cables connected to KVM. 2) Then power on KVM and you hear the boot indicating sound from the beeper, a screen automatically pop up for you to enter the user name and password. - Page 25 8 Port /16 Port User Manual 6. I can’t invoke the OSD main menu. Solutions: 1) Check the keyboard to make sure it is working. 2) Double click 【Scroll_Lock】. 3) Double click 【F12】 4) Double click 【Caps Lock】 5) Double click【Ctrl】+【Space】 - 24 -...
