Page 1
8 / 16 Port 17” DVI LCD KVM Console (LD2708 / LD2716)...
Page 2

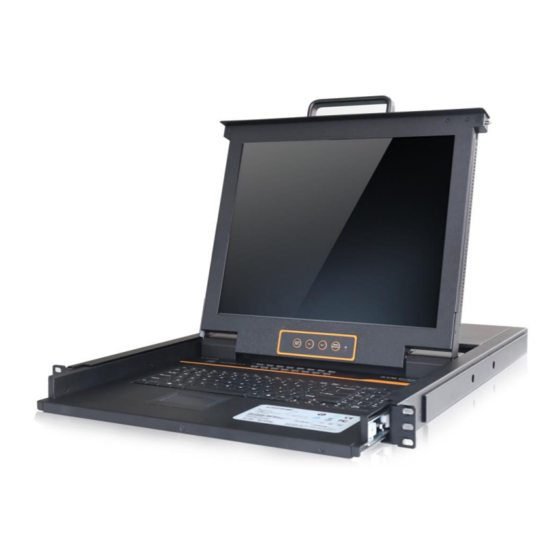

www.kinankvm.com Overview The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with one monitor, keyboard and mouse. It is easy and fast to install the KVM console, you just need to connect corresponding cables to the right ports of KVM and its module without software configuration.
Page 3
www.kinankvm.com 1 Ground Connection Screw 4 PC Port 2 Console Port 5 Power input(AC) 3 USB Port Features 17” TFT LCD monitor, high brightness, high resolution; 1U height, suitable height for standard 19”rack mount, metal structure; Ultra slim 99 keys keyboard with small numeric keyboard; ...
Page 4
Specifications Model LD2708 LD2716 Direct Computer connections Port emulation Keyboard, mouse PS/2, USB LCD Model SXGA TFT View Area 17″ Optimum Resolution 1280×1024@60Hz LCD Monitor Display Color 16.7 M Brightness 250cd/m² (T y p) Contrast Ratio 1000 : 1 (T y p) Pixel Pitch(mm) 0.264(H) ×...
