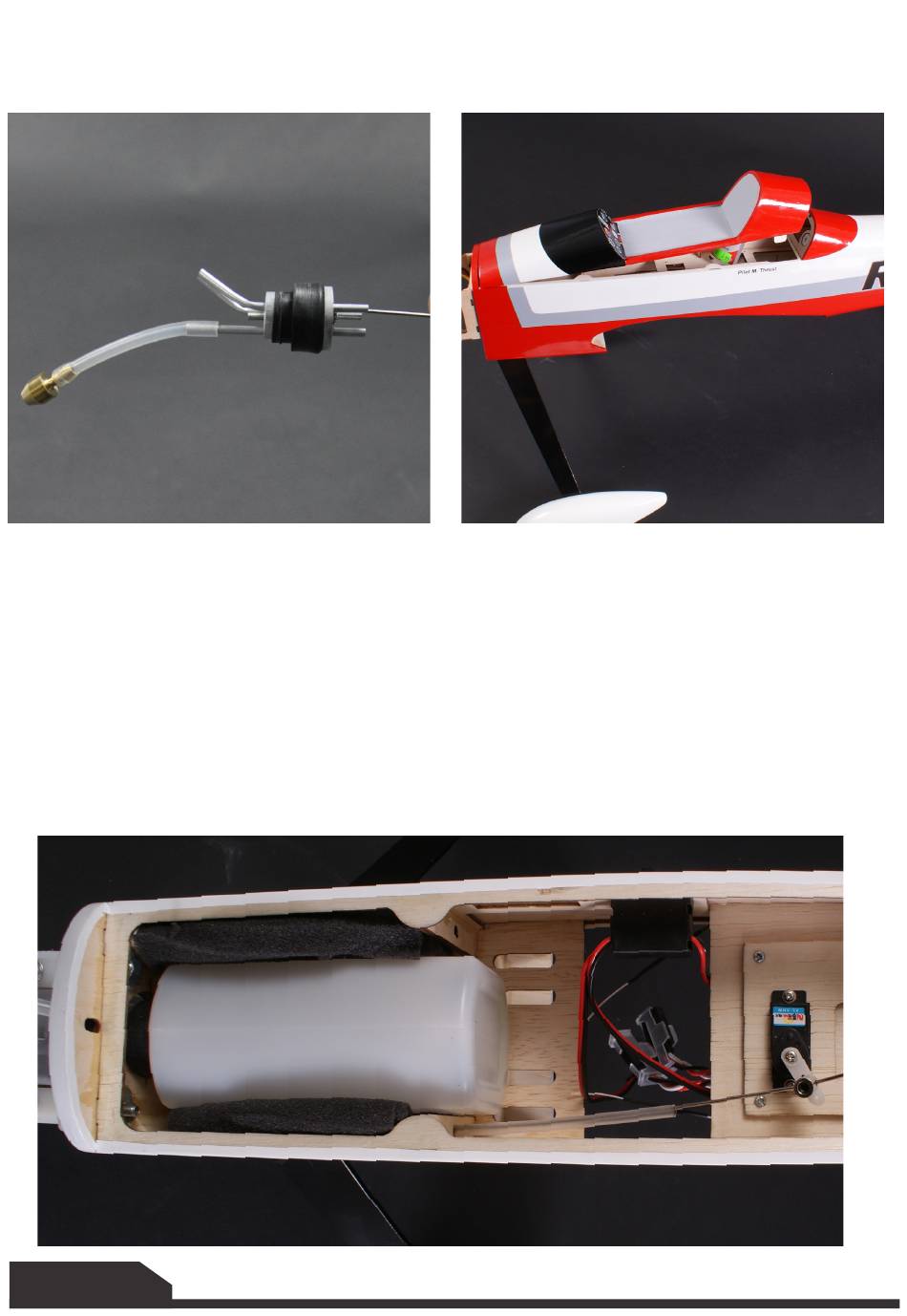

IC Version. Make up the tank and install in to the fuselage using extra fuel tube to help route
through to the engine. The clunk needs to be approx. 70mm long and the vent pipes need to be softly
bent up to the top of the tank. Remember to tighten the screw to secure the bung in place in the tank.
9.
IC Version Only
Remove the canopy by sliding it forward away from the magnets and then lift the back to remove. The
tank is mounted at the front of the fuselage and held in place with foam packing or velcro straps supplied.
Connect the carburettor to the feed/clunk line and one of the vent pipes to the muffle pressure feed, the
remaining vent pipe is used for tank filling. Make sure to leave extra tube on vent and filling pipes as this
will help later.
For IC Versions we recommend mounting the battery under the fuel tank wrapped in foam. We recommend
using lead locks on all connectors. Its easier to fit the switch after installing the battery and connecting up
using a lead lock.
