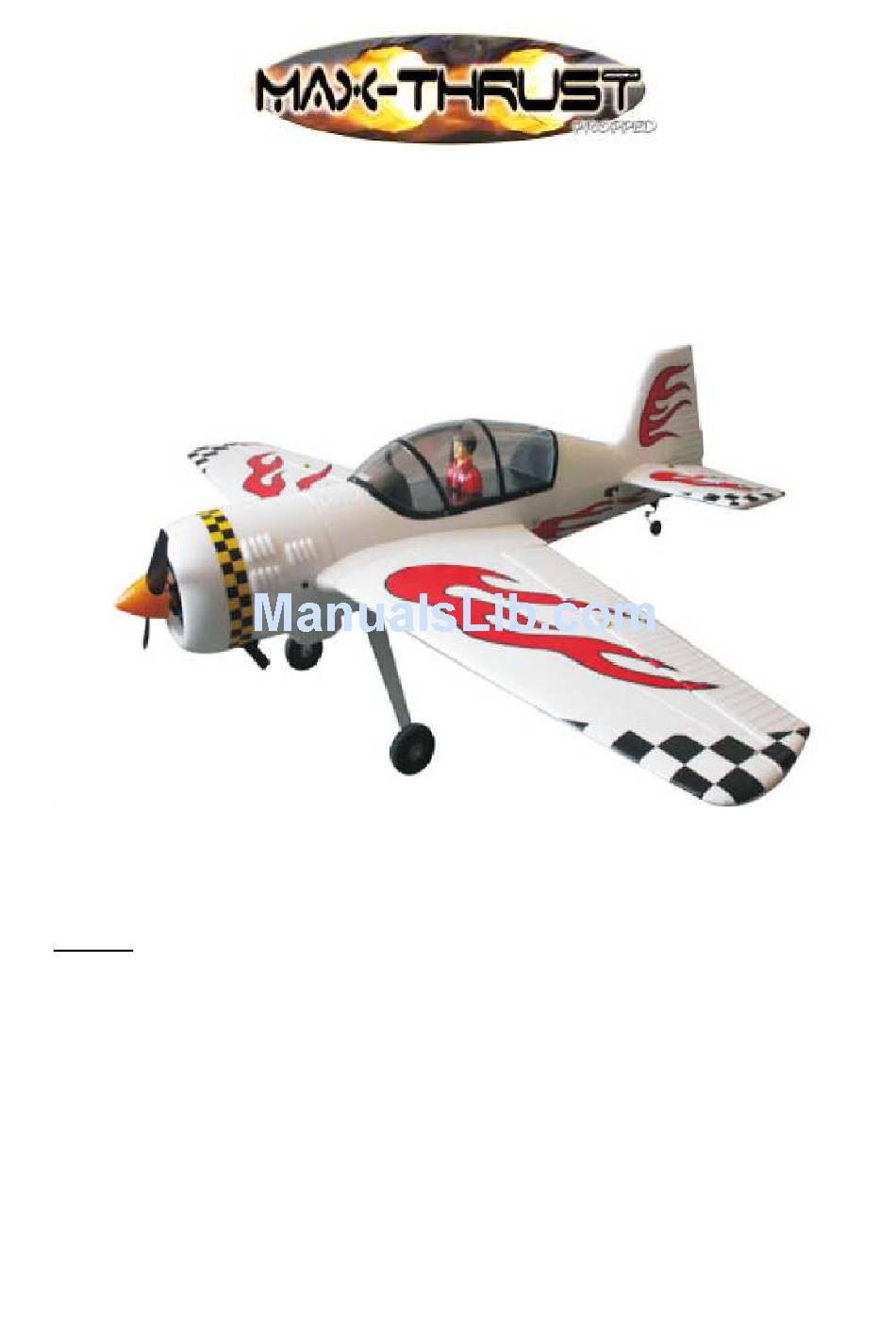

YAK 54
Aerobatic Model Aircraft
Assembly and Instruction Manual
Warning:
This radio controlled model is not a toy. It requires skill to fly and is not recommended for
the novice pilot. It should not be operated by children without the supervision of a suitably
experienced adult. Max-Thrust reserves the right to modify the specification of this model at
any time.
© Century UK Limited 2012. All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the YAK 54 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Max-Thrust YAK 54

Summary of Contents for Max-Thrust YAK 54

  • Page 1 This radio controlled model is not a toy. It requires skill to fly and is not recommended for the novice pilot. It should not be operated by children without the supervision of a suitably experienced adult. Max-Thrust reserves the right to modify the specification of this model at any time.
  • Page 2 Failure to do so could result in a loss of control and possibly a crash. Overview Thank-you for purchasing this MAX-THRUST YAK 54 radio controlled model aircraft. The YAK54 offers a stunning combination of terrific looks and sensational flight performance.

  • Page 3: Parts List

    Parts List Note: Image shows model with all control horns fitted and decals applied. 1. Main Fuselage Section 7. Prop Adaptor 2. Tail Fuselage Section 8. Propeller 3. Wings 9. Wing Spar 4. Horizontal Tail Plane 10. Accessory Pack 5. Undercarriage 11.
  • Page 4 Tools Required to Complete 1. Screwdrivers 4. Modelling Knife 2. Pliers 5. Measure or Rule 3. 10mm Spanner 6. Drill Additional Items Required to Complete 3350mAh Li-Po 4S Battery Pack (Power-Tech Recommended) Charger (Power-Tech C6, B606 or X-Drive 6 Recommended) 2.4GHz Transmitter (4 + Channel) 2.4GHz Receiver Self-Adhesive Tape...
  • Page 5 Horizontal & Vertical Stabiliser Assembly (continued): Once you are certain that these parts align correctly, apply adhesive to the mating surfaces and secure in position using two 3x60mm screws, (Image 6). Use a thin film of adhesive and remove any excess carefully before the adhesive cures.
  • Page 6 Rudder & Elevator Control Rods: Pass the “Z” bend of the rudder control rod through the hole in the rudder servo arm. Then connect the plastic clevis to the rudder control arm as shown, (Image 12). Repeat the process connecting the elevators to the elevator servos, (Image 12+13). Main Landing Gear Installation: Position the main landing gear on the fuselage, ensuring that the holes in the landing gear line- up correctly with the holes in the wood mount.
  • Page 7 Cowl Assembly: Referring to images 17, 18 + 19, use the adhesive to glue the scale exhaust stacks and additional scale detailing in position. Ensure that the cowl is correctly aligned, then fix in position with the 2 x screws provided. The cowl must be firmly secured, but be careful not to over tighten, (Image 20).
  • Page 8 Canopy: A pilot figure is not included with this model. However if you wish to fit one we recommend “Dave”, Part No. CUK-P-DAVE, (Image 27). Your choice of pilot should be fixed in position with double sided self-adhesive tape prior to securing the canopy with the supplied fixing screws, (Image 26).
  • Page 9 Aileron Control Rods: Pass the “Z” bend of the aileron control rod through the hole in the aileron servo arm. Connect the plastic clevis to the control arm as shown, (Image 29). Fix the aileron servo cover in position as shown using adhesive, (Image 30 + 31).
  • Page 10 Final assembly (continued): Plug all the servo leads into your receiver (not included). Ensure that you have the correct servo plugged into the appropriate channel of your receiver. Fix the receiver to the fuselage using double sided tape, (Image 35). Be certain to comply with any instructions from the manufacturer of the receiver regarding aerial positioning.
  • Page 11 IMPORTANT: Check before flight: Check that all control surfaces move in the correct directions without binding. We recommend the following control surface deflections for initial flight testing: Ailerons: 10mm deflection each way. Elevator: 10mm deflection each way. Rudder: 10mm deflection each way. These values can be altered after initial test flights to suit the pilot’s personal preference.
