Building Your IC Ruckus
1.

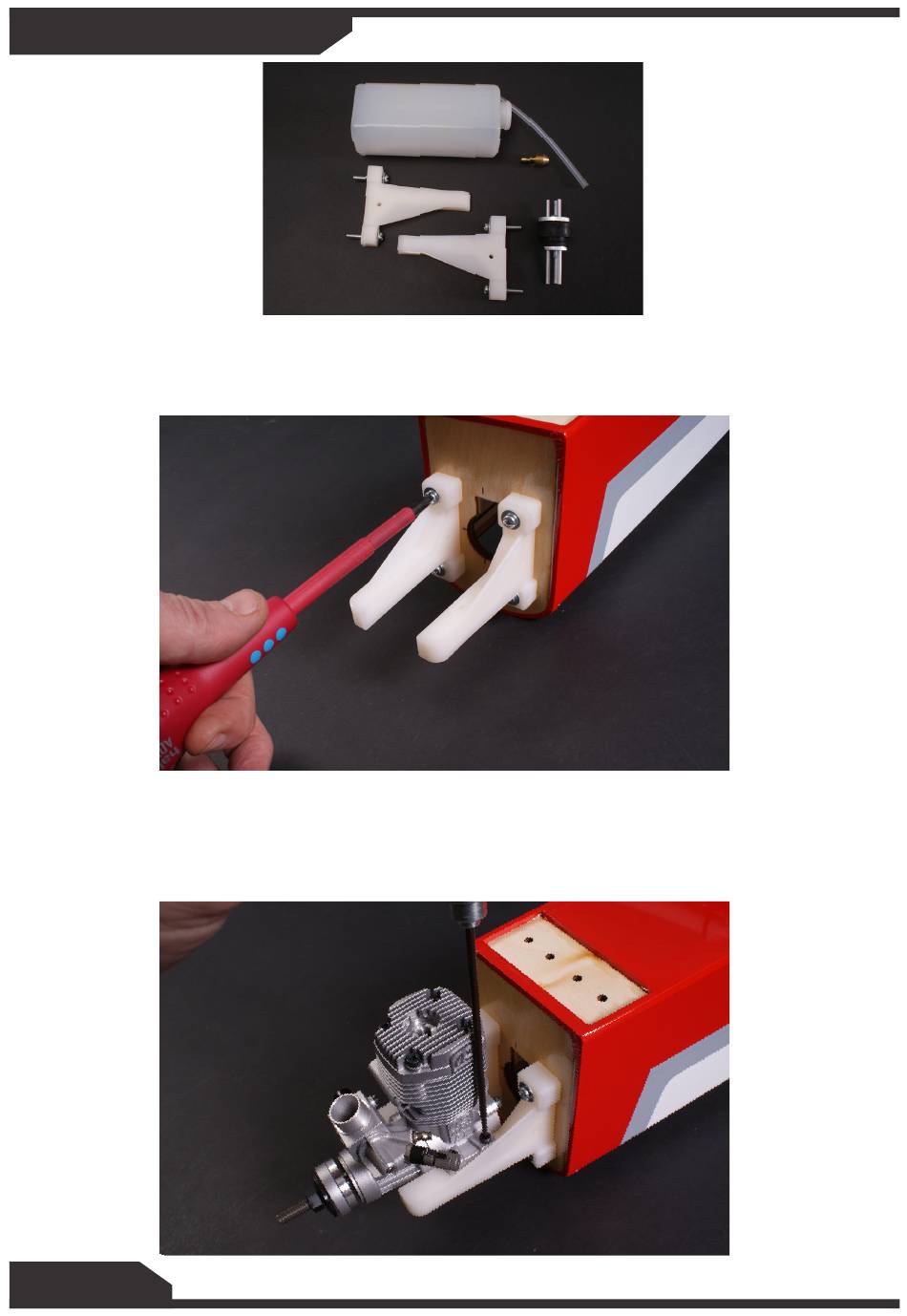

IC Version. Using the 4mm x 25mm Phillips head screws (x4) and washers attached the engine
mount to the bulkhead on the front of the model. Install the screws through the mount and make sure the
mount is spaced correctly for your engine then test fit the cowl, 2 degrees of side thrust is built in to the
model. Once happy with the position tighten the screws, if in doubt use a small amount of thread lock.
2.
IC Version. Use the 3mm x 25mm cap head screws, washer and 3mm lock nuts to fix the engine to
the engine mount. The engine should be mounted with approx 2 degrees of right side thrust so make sure
the spinner lines up the cowl.
