5.
Locate the push-rods and remove the metal quick-links, you will now be able to push them down
the pre installed plastic guide tubes in the fuselage, be careful when the push-rods exit the fuselage use a
sharp knife to cut the covering, re-affix the metal quick-links with the 2mm nuts once installed.
6.
IC Version. Install the three servos (elevator, rudder, throttle) in to the fuselage.
Electric Version. Install the elevator and rudder servos in to the fuselage.
The holes are pre cut for standard size servos but you will find in the kit that there is an additional servo
plate that you can screw in to place to allow you to use smaller servos.
7.
IC Version Only. Install the throttle push-rod, route the push-rod through fuel tank bay. Mount the
rod connector to the servo arm for easy connection and then cut to length to suit your engine making sure
you have full throttle movement.
Both Versions. Connect up the elevator and rudder push-rods to your servos and check for full and
free movement.

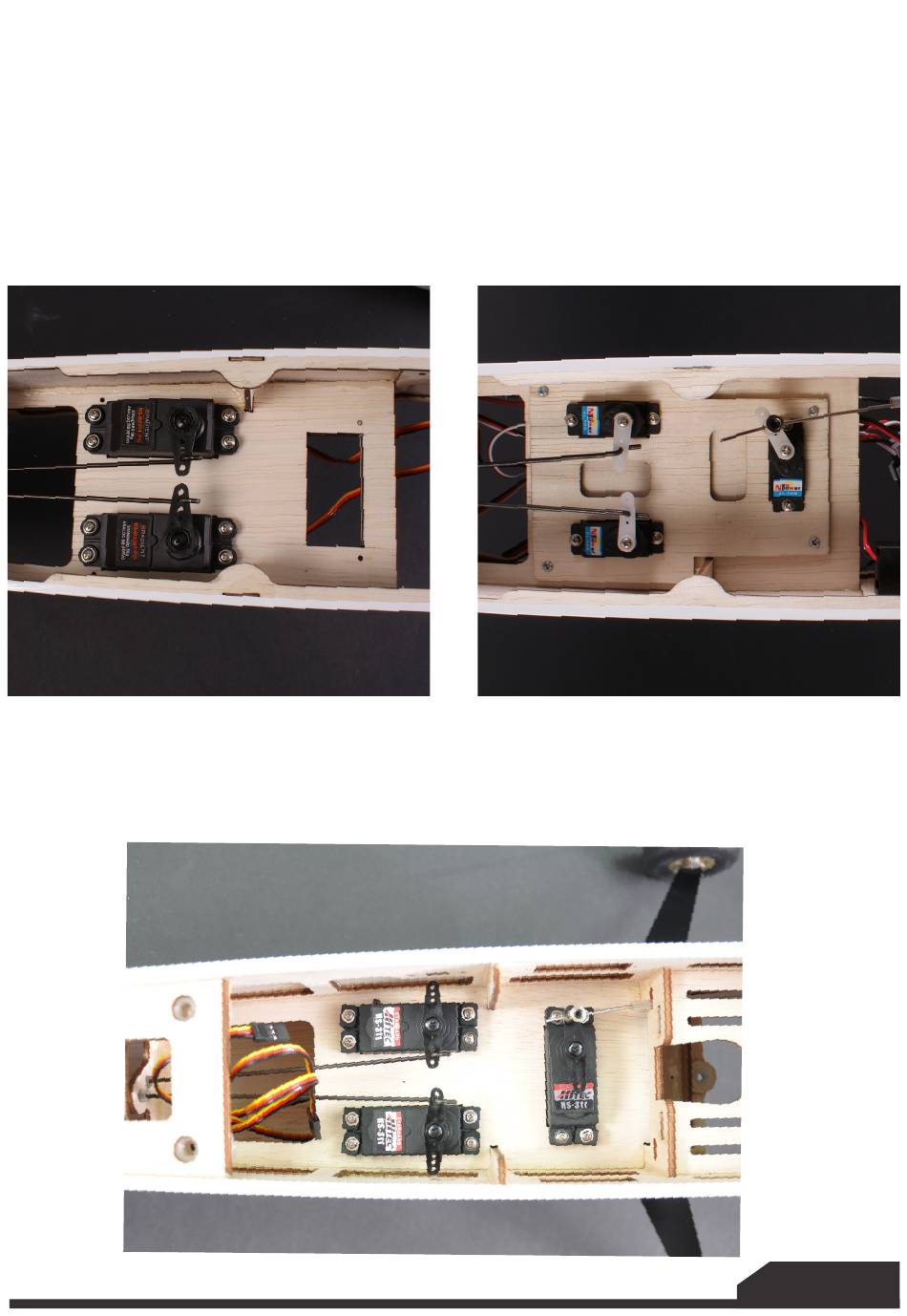

Riot shown to show full size servo installation
7
7
