Max-Thrust P-51D Mustang Assembly And Instruction Manual

Sport scale model aircraf
Hide thumbs

Advertisement

Quick Links

Download this manual

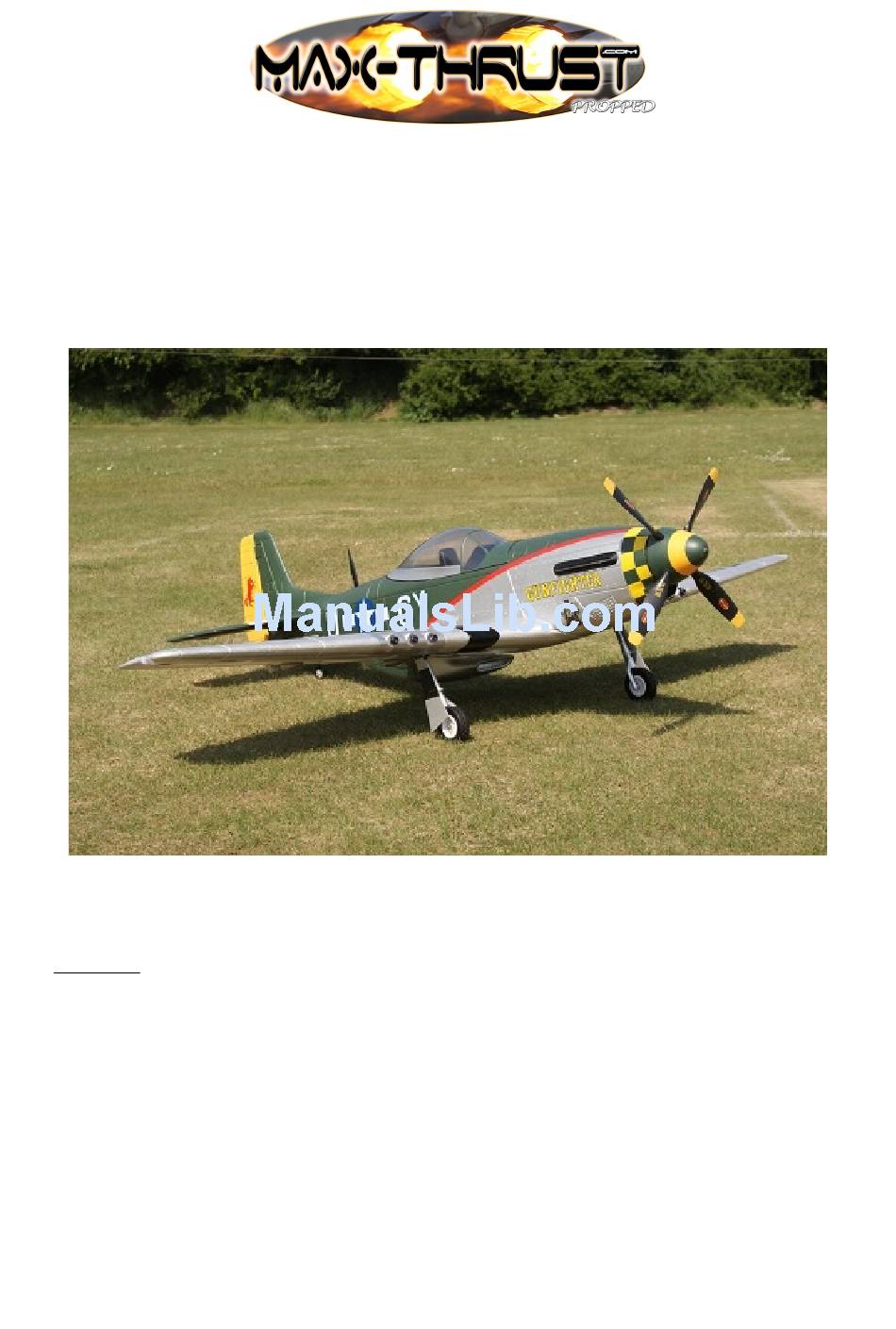

P-51D Mustang
Sport Scale Model Aircraft
Assembly and Instruction Manual
Warning:
This radio controlled model is not a toy. It requires skill to fly and is not recommended for
the novice pilot. It should not be operated by children without the supervision of a suitably
experienced adult. Max-Thrust reserves the right to modify the specification of this model at
any time.
© Century UK Limited 2011. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-51D Mustang and is the answer not in the manual?

Questions and answers

Related Manuals for Max-Thrust P-51D Mustang

Summary of Contents for Max-Thrust P-51D Mustang

  • Page 1 This radio controlled model is not a toy. It requires skill to fly and is not recommended for the novice pilot. It should not be operated by children without the supervision of a suitably experienced adult. Max-Thrust reserves the right to modify the specification of this model at any time.
  • Page 2 Overview Thank-you for purchasing this MAX-THRUST P-51D Mustang radio controlled model aircraft. The P-51D Mustang offers a stunning combination of terrific looks and sensational flight performance. Manufactured from “EPOFLEXY” it is extremely robust, however, in the event of a “less than perfect” arrival, we supply a range of spares to get you flying again in the shortest time.

  • Page 3: Components List

    COMPONENTS LIST 1. Fuselage Spinner 2. Wing Panels Propeller 3. Canopy 10. Adhesive 4. Horizontal Stabilizer 11. Aerial 5. Fin & Rudder 12. Servo Covers 6. Main Spar 13. Propeller Adaptor 7. Drop Tanks 14. Fixings Pack...
  • Page 4 Tools Required to Complete 1. Screwdrivers 5. Scissors 2. Pliers 6. Measure or Ruler 3. 14mm Spanner 7. Drill 4. Modelling Knife 8. Fine Abrasive Paper Additional Items Required to Complete 3350mAh - 5550mAh 4S 14.8V Li-Po battery (Power -Tech 5550mAh 33C 4S 14.8V Recommended, Part No.
  • Page 5 1. Hinge Check Check that all control surface hinges are firmly secured. If required they can be glued in position using a small quantity of the supplied adhesive. 2. Horizontal Tail Plane Fix the elevator control horn in the moulded recess as shown using four M2 x 15mm screws, (image 1).
  • Page 6 3. Vertical Fin & Rudder Fix two plastic control horns either side of the rudder in the moulded recesses. Use two M2 x 30mm screws, used in opposite directions through the rudder, (image 6). Using a light grade abrasive paper, lightly abrade the painted mating surfaces to provide a good key for the adhesive, (image 7).
  • Page 7 5. Wing Assembly Starting with the left hand wing panel, fix the aileron control horn and its backing plate in position using the four M2 x 15mm screws, (image 10). Then securely fix the flap control horn in position using four M2 x 10mm screws that screw directly into the control surface, without the requirement for a backing plate, (image 11).
  • Page 8 For ease of transportation and storage, it is possible to fly your P-51D Mustang without using adhesive to join the wing panels. However, we always recommend that they are glued together as this provides a huge amount of additional strength to the model.
  • Page 9 6. Receiver Installation. Note: We only recommend the use of 2.4GHz radio equipment with this model and make the following recommendations for receiver location and mounting. These must be followed in conjunction with the instructions supplied by your receiver manufacturer. Connect the aileron, retracting gear and flap leads to corresponding outputs on your receiver.
  • Page 10 Carefully apply adhesive to the foam section of the canopy assembly, (image 24). Use the adhesive sparingly and position the clear canopy in place on the moulding, (image 25). Allow to dry thoroughly before attempting to fit the assembly onto the fuselage. The canopy is held in position with a rubber retaining band located in the fuselage and pre- installed magnetic catches, (image 26).
  • Page 11 15mm deflection each way. Flaps: 60 degrees deflection maximum. The centre of gravity of your P-51D Mustang is 110mm back from the furthest forward point of the wing, (image 29). Using the recommended 5550mAh flight battery, this centre of gravity should be easily achieved.
