14.

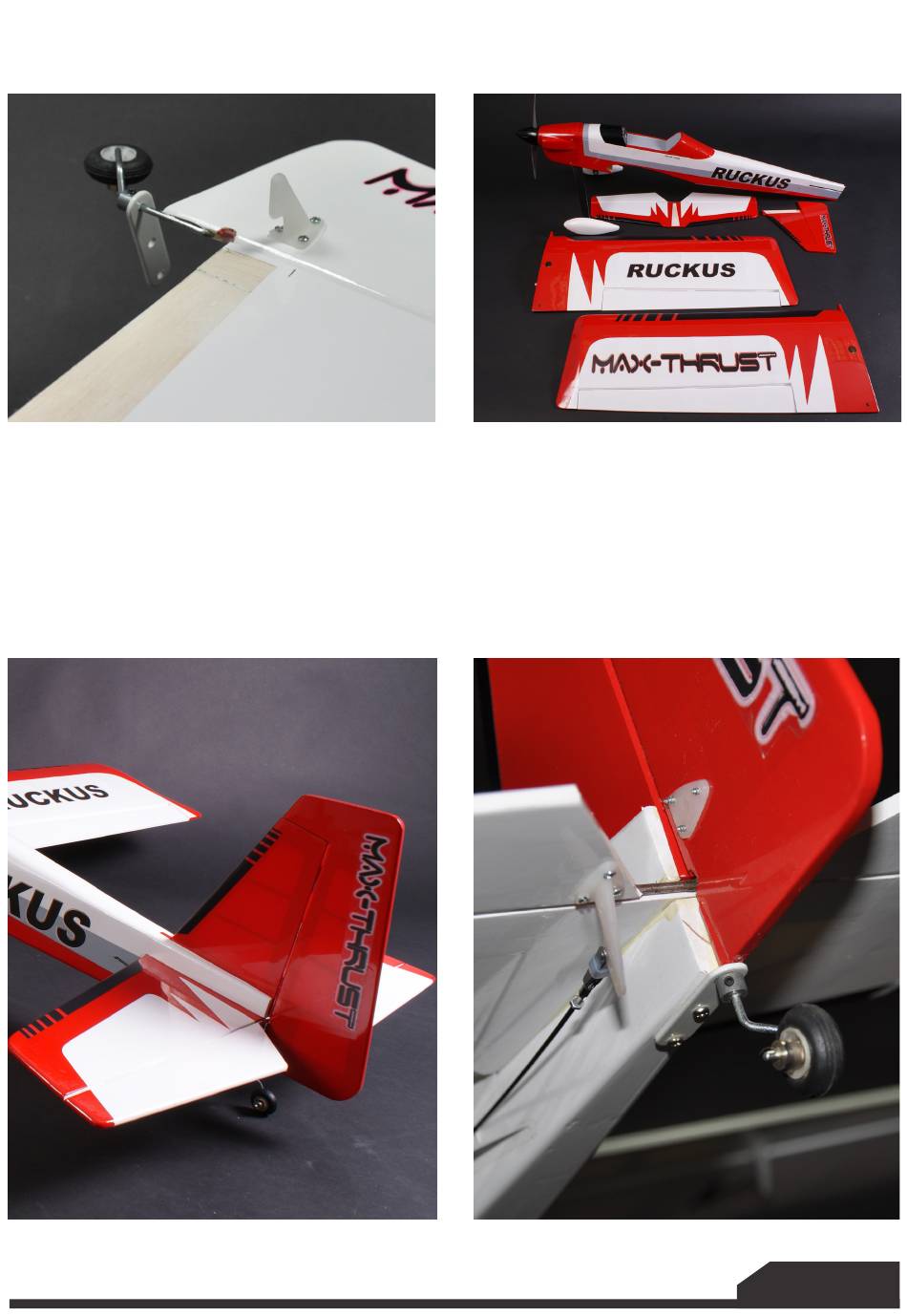

Install the tail wheel assembly on to the rudder and glue in place using 30 minute epoxy. Install the
control horns on to both the rudder and elevator using the 3x12mm self tapping screws on each. Now is a
good time to apply the decals to the model as it is easier to handle.
15.
Glue the tail plane assembly into place using a thin coat of 30 minute epoxy making sure that it
is in the correct position and square with the fuselage, when set you can glue the rudder assembly in to
place and once dry screw the tail wheel bracket in to place using the M3 x 10mm self tapping screws once
again it is usefull to drill 2mm pilot holes for the screws to go into.
11
11
