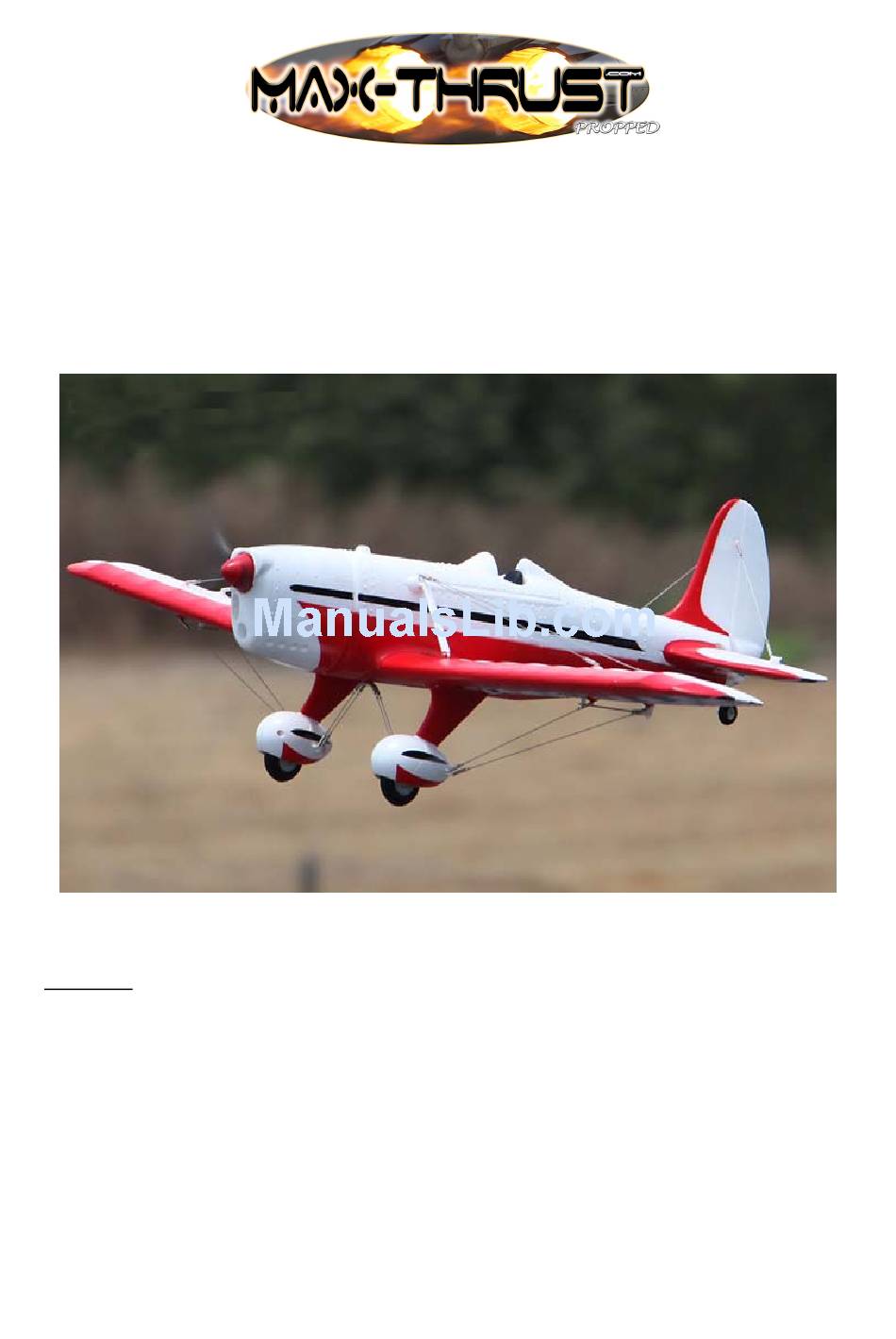

Ryan STA
Sport Scale Model Aircraft
Assembly and Instruction Manual
Warning:
This radio controlled model is not a toy. It requires skill to fly and is not recommended for
the novice pilot. It should not be operated by children without the supervision of a suitably
experienced adult. Max-Thrust reserves the right to modify the specification of this model at
any time.
© Century UK Limited 2011. All rights reserved.
Advertisement
Related Manuals for Max-Thrust Ryan STA
Summary of Contents for Max-Thrust Ryan STA
- Page 1 This radio controlled model is not a toy. It requires skill to fly and is not recommended for the novice pilot. It should not be operated by children without the supervision of a suitably experienced adult. Max-Thrust reserves the right to modify the specification of this model at any time.
- Page 2 Overview Thank-you for purchasing this MAX-THRUST Ryan STA radio controlled model aircraft. The Ryan STA offers a stunning combination of terrific looks and sensational flight performance. Manufactured from “EPOFLEXY” it is extremely robust, however, in the event of a “less than perfect” arrival, we supply a range of spares to get you flying again in the shortest time.
- Page 3 Parts List Fuselage Propeller Main Wing Spinner Horizontal Stabiliser Rigging Fin & Rudder Spring Pack Undercarriage Tail Wheel Hardware Pack Live Hinges Tools required to complete 1. Screwdrivers 4. Scissors 2. Pliers 5. Measure or Ruler 3. Modelling Knife Additional items required to complete 1350mAh 3S 11.1V Li-Po battery (POWER-TECH 1350mAh 33C 3S 11.1V recommended Part No.
- Page 4 Please ote: “EPOFLEXY” is a very tough and durable material perfect for the manufacture of model aircraft. When using screwed fixings with “EPOFLEXY” components it is important to tighten the screws sufficiently to provide a firm fixing. Excess tightening could result in the foam material becoming compressed, possibly damaging or distorting the part.
- Page 5 Apply adhesive sparingly to the mating surface of the horizontal tail plane and push the fin assembly into position. Remove any excess adhesive immediately. Secure in place using an M2 x 40mm screw at the front mounting point and an M2 x 30mm screw at the rear mounting point via the fixing holes positioned underneath the fuselage, (image 7) 4.
- Page 6 Now the wing is fitted, the cabane struts can be fitted from the topside of the wing to the cockpit using the screw pack supplied with the them (image 11). Once the main build has been completed, you may wish to fit the wire rigging. The rigging is purely cosmetic and won't alter the flight characteristics of the model, but does enhance the scale appearance.
- Page 7 5mm deflection each way. Rudder: 10mm deflection each way. The centre of gravity of your Ryan STA is 45mm back from the furthest forward point of the wing. Using the recommended 1350mAh flight battery, this centre of gravity should be easily achieved. If...
